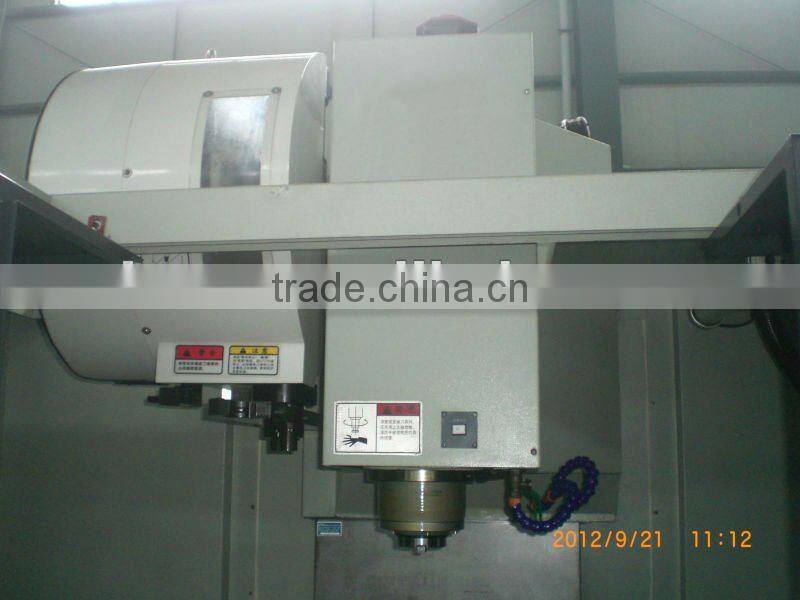

5-Axis Linkage Vertical Machining Center VM250V
Features:
1. The machine adopts FANUC 3li-A5 5axis control system to ensure high speed, high precision, rapid and stable feed.
2. Imported high precision double axle indexing dial is controlled by CNC system to realize 5-axes linkage movement.
3. Three linear guides for each of X and Y axis to ensure high rigidity and high precision.
4. The spindle assembly adopts oil cooling system to ensure heat stability of the spindle system
5. Centralized timing quantitative lubrication system is adopted for lubrication oil supply.
Specification | VM250V | |
Travel | X-axis | 800mm |
Y-axis | 510mm | |
Z -axis | 510mm | |
X axis swing angle | -15°~115° | |
C axis swing angle | 360° | |
Distance from spindle to table | 110~620mm | |
Distance from spindle center to column guide way | 550mm | |
Spindle | Spindle taper | BT40 |
Spindle speed | 12000rpm | |
Main motor power | 11/15kw | |
Feeding | X, Y axis travel speed | 0~36 m/min |
Z axis travel speed | 0~30 m/min | |
X, Y, Z axis motor torque | 22Nm | |
A, C axis motor torque | 8Nm | |
Tool changer system | Tool No. | 24(Vertical type) |
Tool change time | 2s | |
A, C axis | Chuck dia. | φ250mm |
T-slot width | 12H7 | |
Max. loading capacity of table | 130kg | |
Min. division unit | 0.001° | |
Others | X, Y, Z axis repositioning accuracy | ±0.003mm |
A, C axis repositioning accuracy | ±4" | |
overall dimensions(LxWxH) | 3950*2100*2900 (with auto. chip conveyor) | |
Net weight | 5800kg | |
