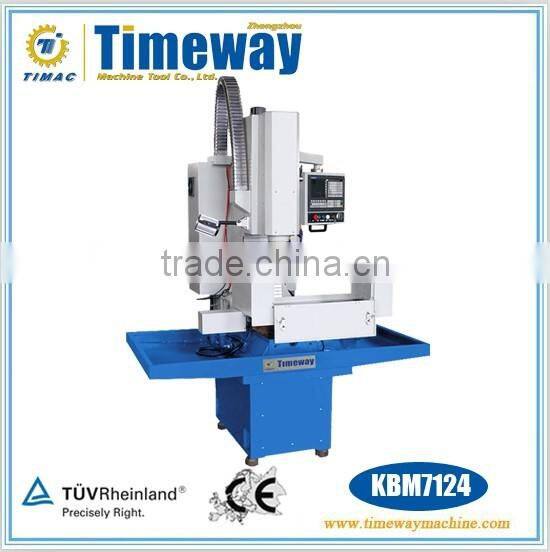

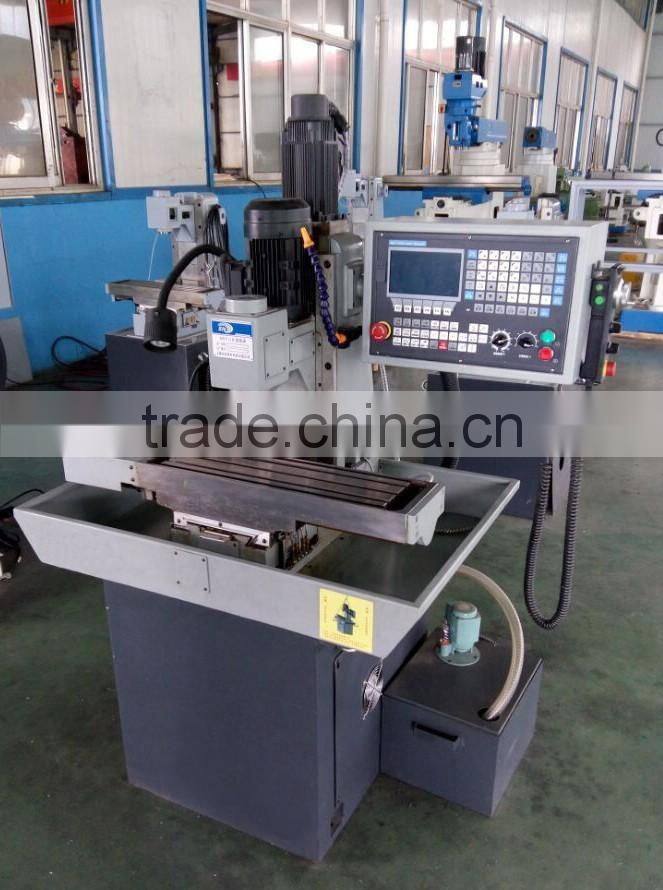

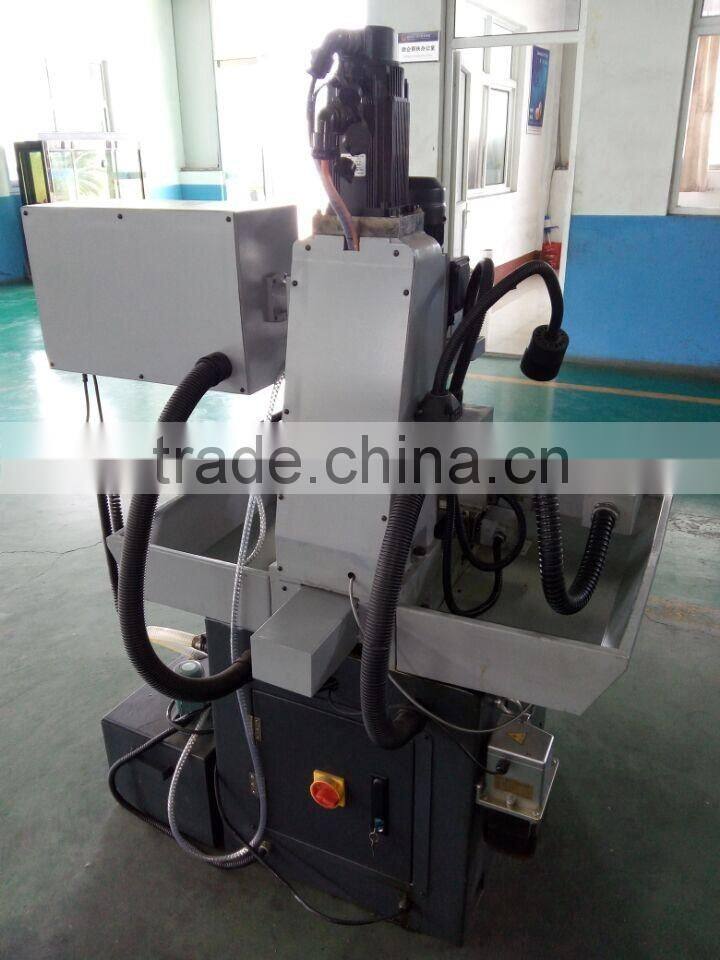

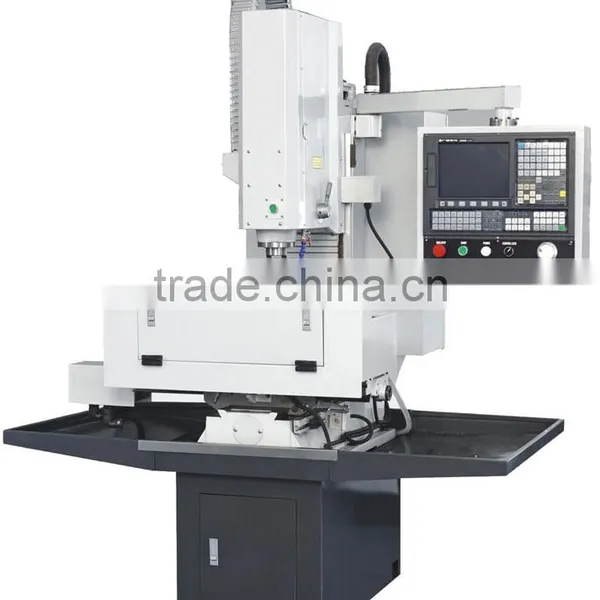

High quality small CNC Milling Machine - KBM7124
Key Features:
• 4pcs tool stations on worktable with high efficiency.
• It can finish all process of surface machining, hole
Machining and tapping by clamping workpiece.
• High and low step speeds available and stronger
Torque for low step speed.
• 3 axes transmission by precision ball leadscrew,
servo motor driven.
• Machine body and stand are designed separately
for easy and flexible installment by user.
Standard Configuration:
• CNC controller: Siemens SINUMERIK 808D
• 2.2/3.7kw servo main motor
• BT30 spindle with 6000 r.p.m

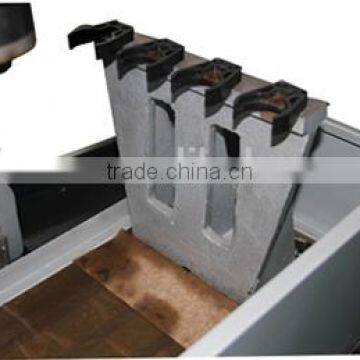

• 4 station tool magazine (simple)
• Manual lubrication system
• Coolant system, Working light
• Operator manual in English
Parameter:
Model | KBM7124 |
Table size (W×L) | 240×800mm |
Table travel (X/Y/Z) | 430×280×400mm |
No./width/distance of T-slot | 3/16/60mm |
Max.loading weight on worktable | 60kg |
Distance from spindle nose to table | 50-450mm |
Distance from spindle to column | 297mm |
Spindle taper | BT30 |
Spindle speed range | 6000r.p.m |

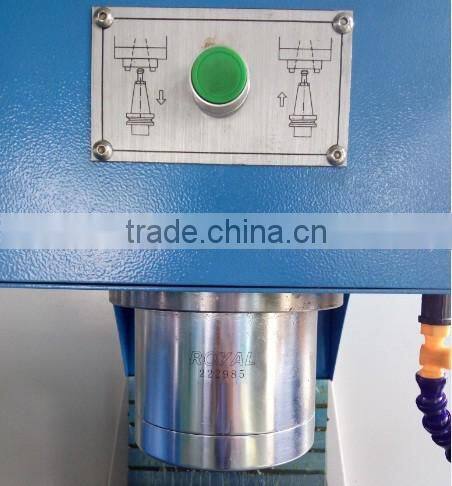

Tool clamping way | Pneumatic |
Tool magazine capacity | 4pcs simple ATC |
Max.size of tool | Φ 60×175mm |
Max.loading weight of tool | 3.5kg |
Rapid feed speed ( X,Y,Z) | 6m/min |
Main motor power | 2.2/3.7kw |
Positioning accuracy | 0.04mm |
Repeatability accuracy | 0.02mm |
Machine weight | 1000kg |
Overall dimension (L×W×H) | 1640×1205×1950mm |
Packing size (L×W×H) | 1900×1620×2480mm |
KBM7118 series
KBM7136C series
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 1900*2000*2230MM N.W./G.W.: 1500/1700KG
Container loaded: 3 sets / 20'GP
