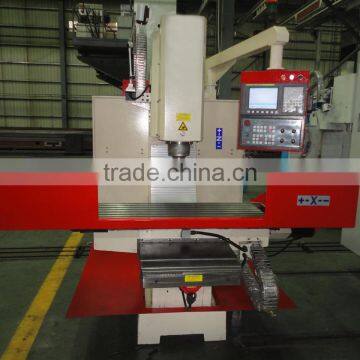

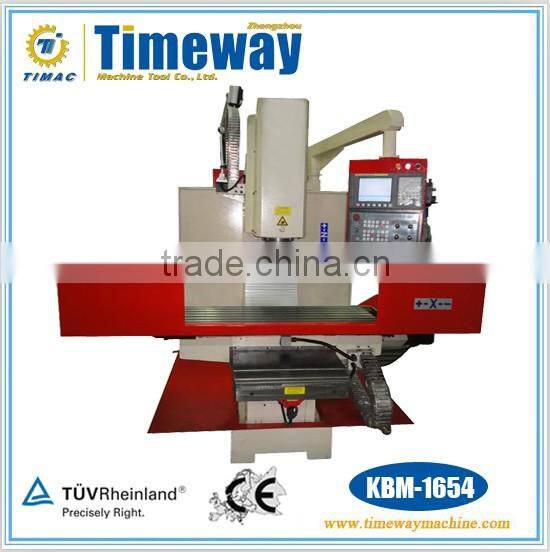

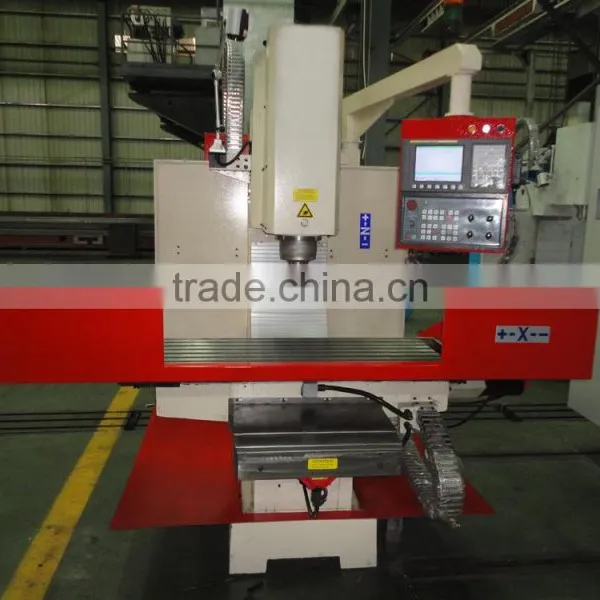

Help CenterFANUC Bed Type CNC Milling Machine KBM-1654
Related Products
-
High Quality Small CNC Milling Machine - KBM7124US$ 7,850 - 8,950MOQ: 1 Set -
Mini CNC Milling Machine KBM7118US$ 6,500 - 6,900MOQ: 1 Set
-
254*1370mm Table Economical Type CNC Milling Machine KTM-250US$ 8,500 - 15,425MOQ: 1 Set
-
CNC Milling Machine KBM-1354BUS$ 5,000 - 20,000MOQ: 1 Set
-
Economical Vertical Turret CNC Milling Machine KTM-250NegotiableMOQ: 1 Set
CNC Milling Machine
Features:
1. The spindle system features strong rigidity, it is suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
2. The milling machine can be used for drilling, boring, lathing and milling.
3. The milling machine adopts rectangular guide ways, features strong rigidity and high accuracy.
4. Radial tool holder of facing head on the headstock head for radial machining.
5. Optional digital readout device, reading accuracy 0.01mm, positioning accuracy 0.05mm.
Standard accessories:
Semi-isolated table shield, Cutting fluid circulation system, Auto. Lubrication system,
Spindle air flow,Working light, Level adjusting screw and block, Clamping apparatus.
Optional accessories:
The forth axis revolving table, Vertical arm type ATC, Full closed safety cover,
Cutter length measuring unit, Edge finder, Shank
| Specification | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 |
| Table size(L×W/mm) | 1370×330 | 1370x406 | 1600x510 | 1854x610 |
| Table loading capacity(kg) | 400 | 800 | 1200 | 1500 |
| T-slots(W/mm×NO) | 16×3 | 16x5 | 18x5 | 18x5 |
| X-axis(mm) | 800 | 1000 | 1200 | 1500 |
| Y-axis(mm) | 450 | 480 | 700 | 700 |
| Z-axis(mm) | 480 | 600 | 600 | 700 |
| Max.move speed(mm/min) | 8000 | 8000 | 10000 | 10000 |
| Max.feed speed(mm/min) | 3000 | 3000 | 4000 | 4000 |
| Spindle speed(rpm/min) | range:40~6000 | |||
| Spindle nose | BT40 | BT40 | BT40/BT50 | BT40/BT50 |
| Spindle motor(kw) | 5.5 | 7.5 | 7.5 | 7.5 |
| Servo motor(kw) | X/Y:1.0,Z:1.5 | X/Y/Z:1.5 | X/Y/Z:2.0 | X/Y/Z:2.0 |
| Spindle quill diameter(mm) | 120 | 150 | 150/160 | 150/160 |
| Spindle to column surface(mm) | 450 | 520 | 640 | 695 |
| X-axis(mm) | 32×5p4Double nuts | 32×5p4Double nuts | 40×10p4Double nuts | |
| Y-axis(mm) | 32×5p4Double nuts | 40×5p4Double nuts | 40×10p4Double nuts | |
| Z-axis(mm) | 32×5p4Double nuts | 40×5p4Double nuts | 40×10p4Double nuts | |
| Positioning accuracy(mm) | ±0.015 | ±0.015 | ±0.015 | ±0.015 |
| Repeatability(mm) | ±0.008 | ±0.008 | ±0.008 | ±0.008 |
| Packing dimension(L×W×H)(mm) | 2250×2280×2450 | 2500x2280x2650 | 2900x2950x2800 | 2900x3150x2900 |
| Machine weight(kg) | 2600 | 3800 | 5000 | 6000 |
***With Semi-closed table shield
***With Semi-closed table shield & 12tools ATC
***With full-closed safety cover & 12tools ATC
(model: VMC1354B, VMC1654, VMC2063, VMC2473)
***Wooden plate or Plywood case as require
