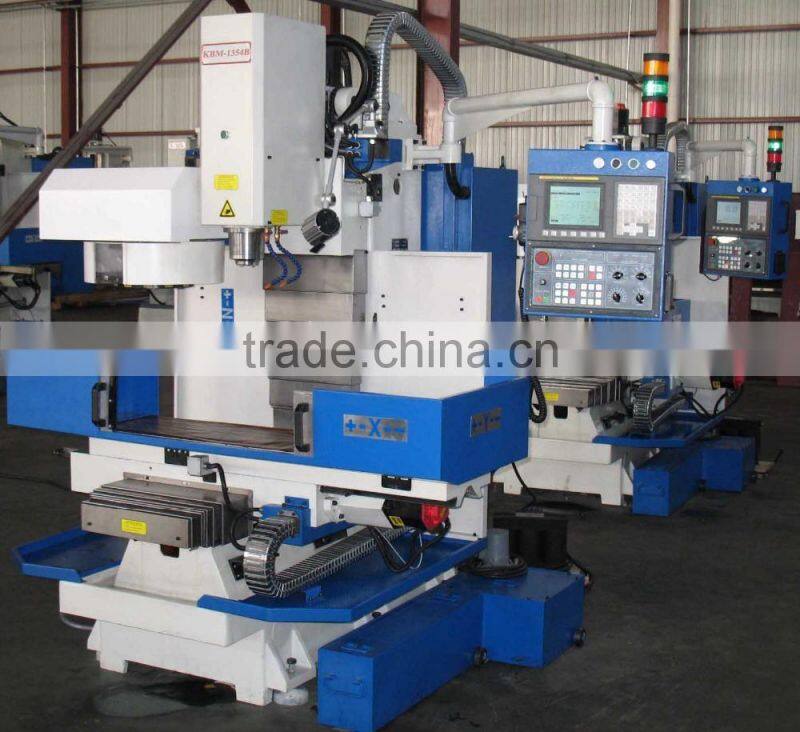

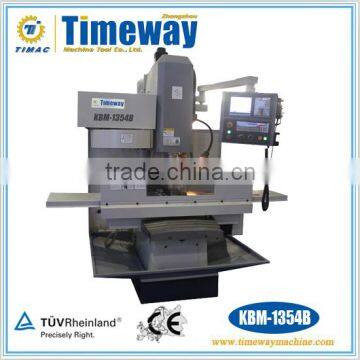

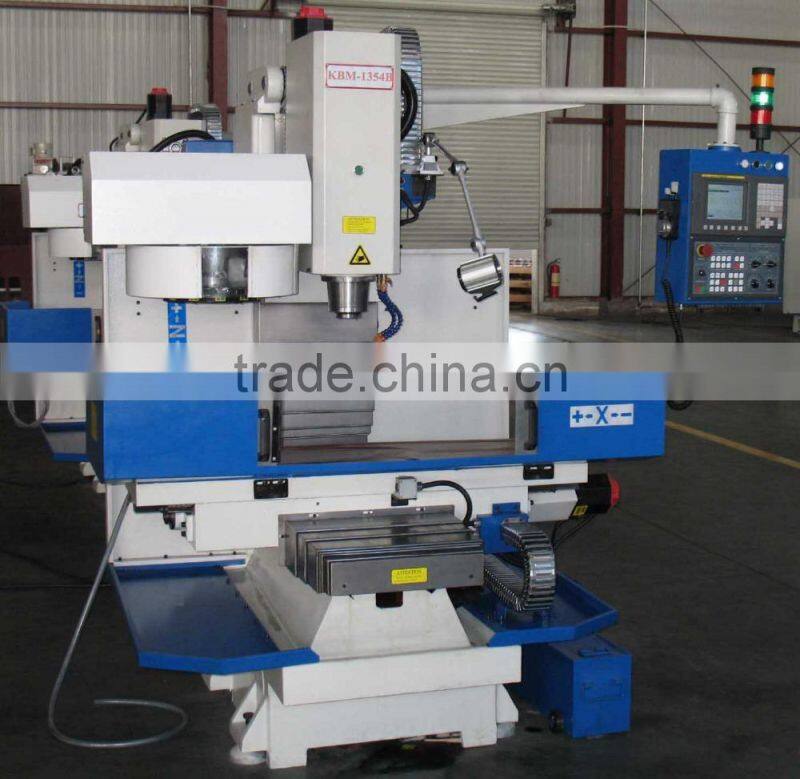

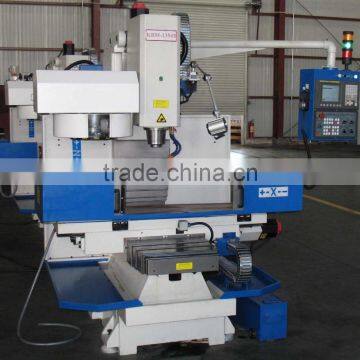

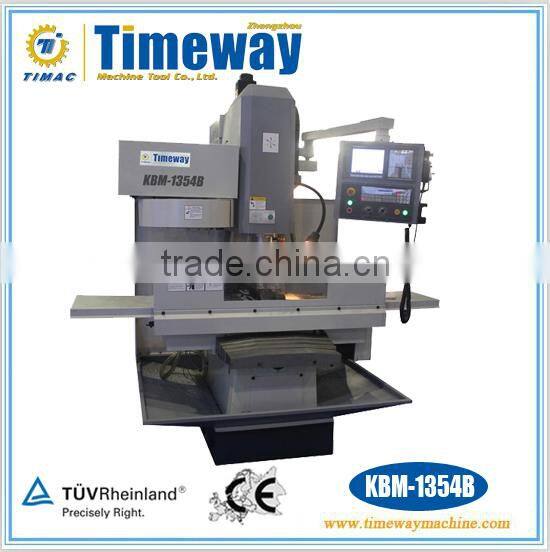

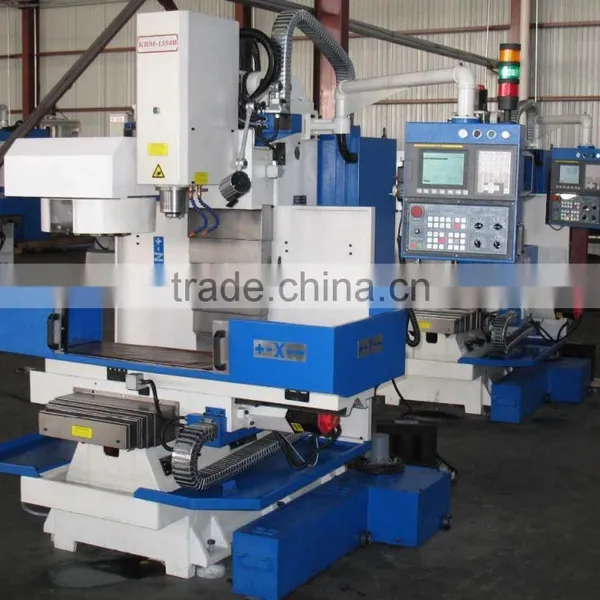

CNC Milling Machine with ATC / KBM-1354B
Feature:
1. The spindle system features strong rigidity, it's suitable for rough machining and force cutting; hence improve machining efficiency, features long travel, heavy loading. It's mainly used for boring and milling big surface and big case parts.
2. The machine can be used for drilling, boring, lathing, and milling. The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
3. Radial tool holder of facing head on the headstock head for radial machining
4. Optional digital readout device, reading accuracy 0.01 mm, positioning accuracy 0.05mm
Parameter:
| Model | KBM-1354B | KBM-1654 | KBM-2063 | KBM-2473 | |
| Table size (LxW/mm) | 1370x330 | 1370x406 | 1600x510 | 1854x610 | |
| Table loading capacity(kg) | 400 | 800 | 1200 | 1500 | |
| T-slots(W/mmxNO) | 16x3 | 16x5 | 18x5 | 18x5 | |
| X-axis(mm) | 800 | 1000 | 1200 | 1500 | |
| Y-axis(mm) | 450 | 480 | 700 | 700 | |
| Z-axis(mm) | 480 | 600 | 600 | 700 | |
| Max.move speed(mm/min) | 8000 | 8000 | 10000 | 10000 | |
| Max.feed speed(mm/min) | 3000 | 3000 | 4000 | 4000 | |
| Spindle speed(rpm/min) | RANGE:40~6000 | ||||
| Spindle nose | BT40 | BT40 | BT40/ BT50 | BT40 /BT50 | |
| Spindle motor(kw) | 5.5 | 7.5 | 7.5 | 7.5 | |
| Servo motor(kw) | X/Y:1.0,Z:1.5 | X/Y/Z:1.5 | X/Y/Z:2.0 | X/Y/Z:2.0 | |
| Spindle quill diameter(mm) | 120 | 150 | 150/160 | 150/160 | |
| Spindle to column surface(mm) | 450 | 520 | 640 | 695 | |
| X-axis(mm) | 32x5p4Double nuts | 32x5p4Double nuts | 40x10p4Double nuts | ||
| Y-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||
| Z-axis(mm) | 32x5p4Double nuts | 40x5p4Double nuts | 40x10p4Double nuts | ||
| Positioning accuracy | ±0.015mm | ±0.015mm | ±0.015mm | ±0.015mm | |
| Repeatability | ±0.008mm | ±0.008mm | ±0.008mm | ±0.008mm | |
| Packing dimension(mm) | Semi-close cover | 2250x2280x2450 | 2500x2280x2650 | 2900x2950x2800 | 2900x3150x2900 |
| Close cover | 2950x2280x2450 | 3200x2280x2650 | 4500x2750x2800 | / | |
| Machine weight(kg) | Semi-close cover | 2600 | 3800 | 5000 | 6000 |
| Semi-close cover | 3400 | 4720 | 6400 | / | |
Standard accessories:
* Semi-isolated table shield;
* Auto. Lubrication system;
* Spindle air flow;
* Working light;
* Level adjusting screw and block;
* Clamping appratus
Optional accessories:
* The Forth axis revolving table;
* Vertical arm type ATC;

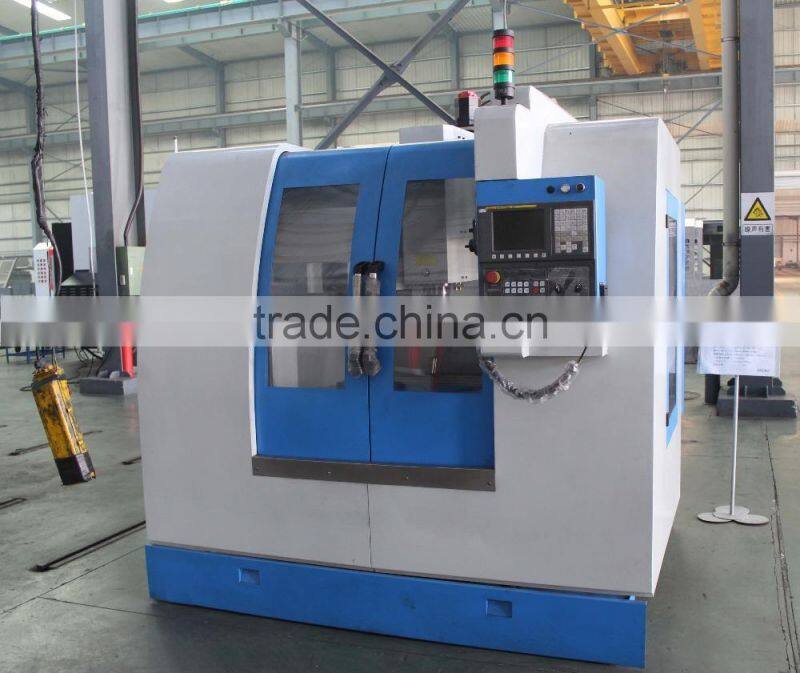

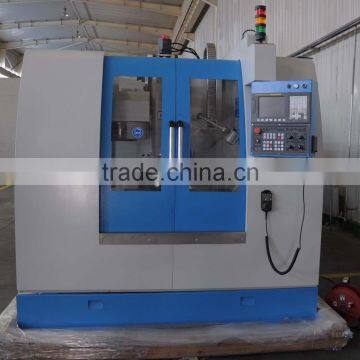

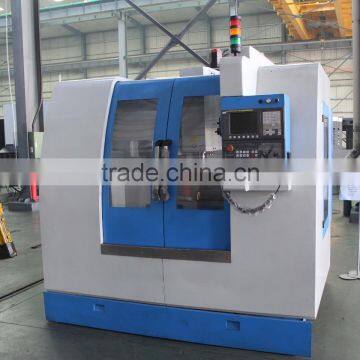

* Full closed safety cover;
* Cutter length measuring unit;
* Edge finder;
* Shank
* Semi-closed cover series
* Full-closed cover series
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2250x2280x2450mm N.W./G.W.: 2600/2800KGS
