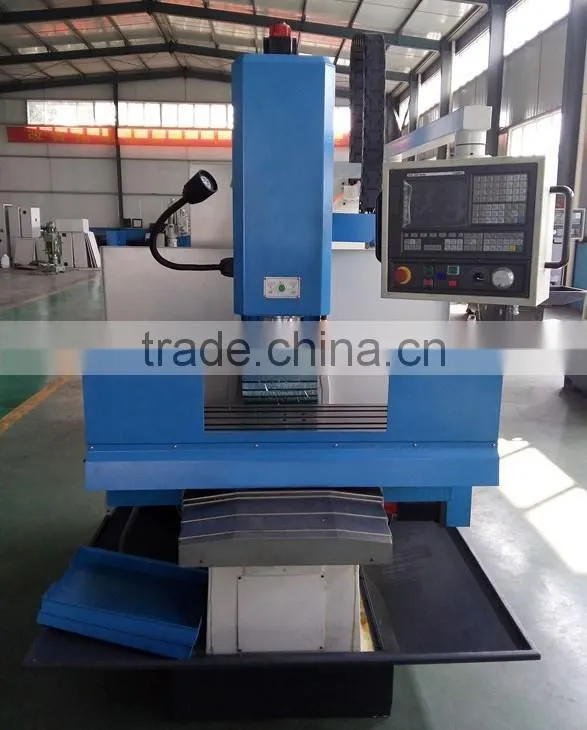

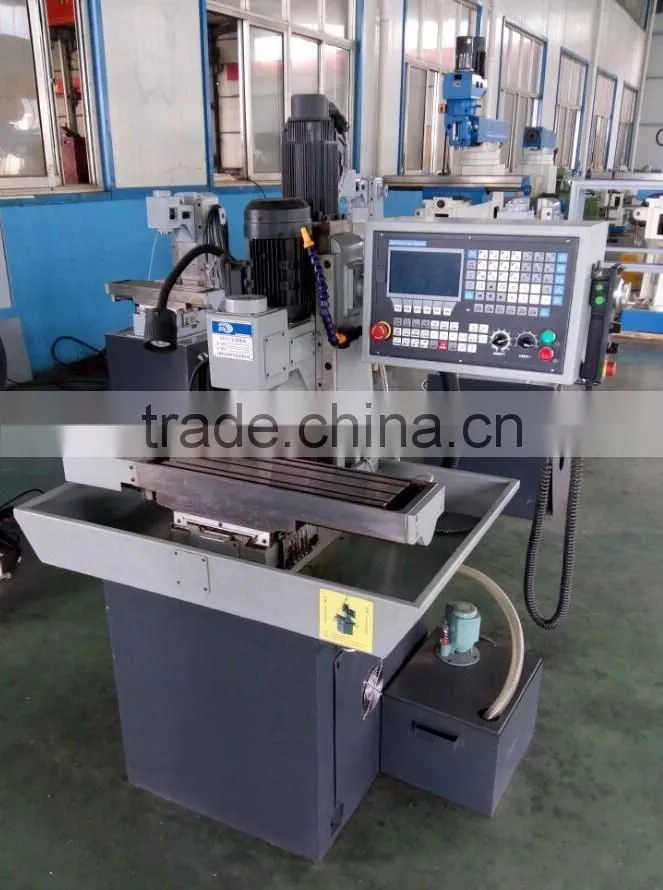

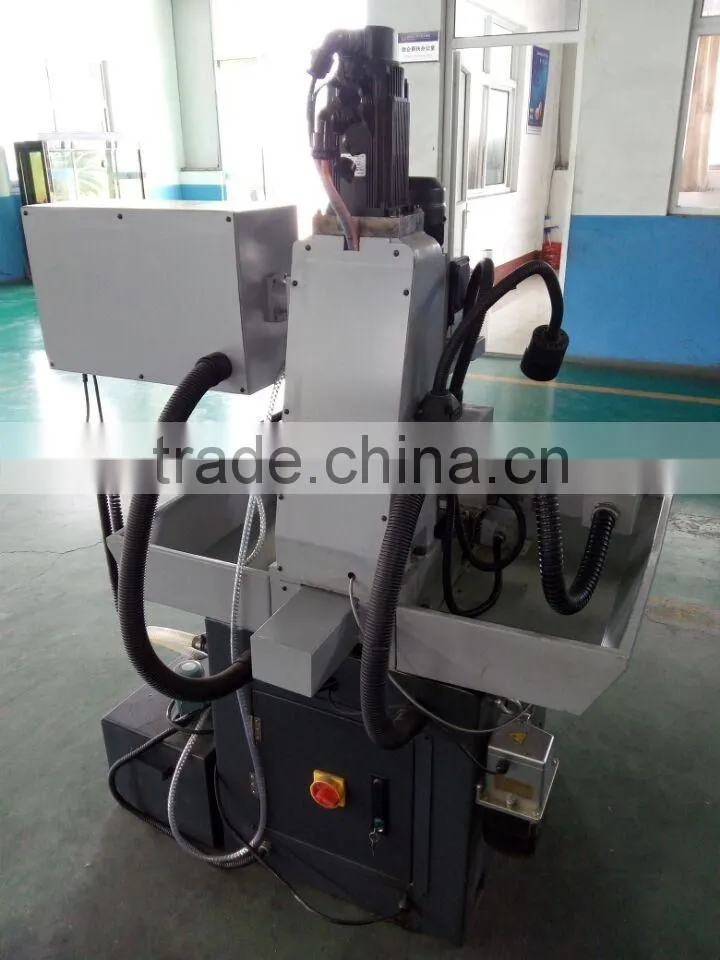

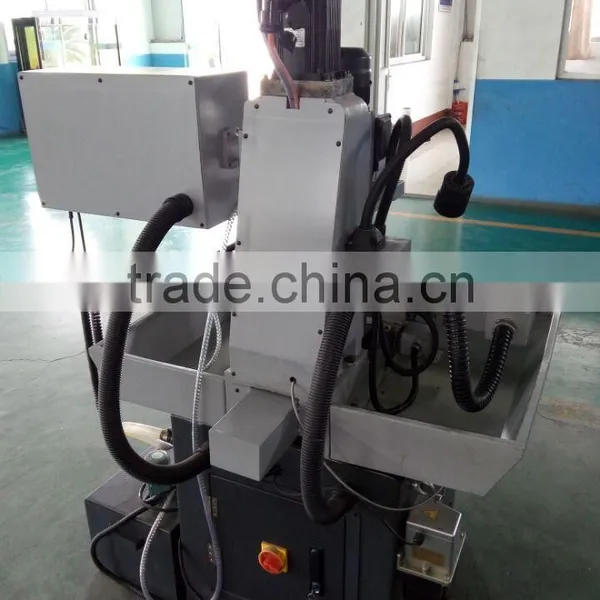

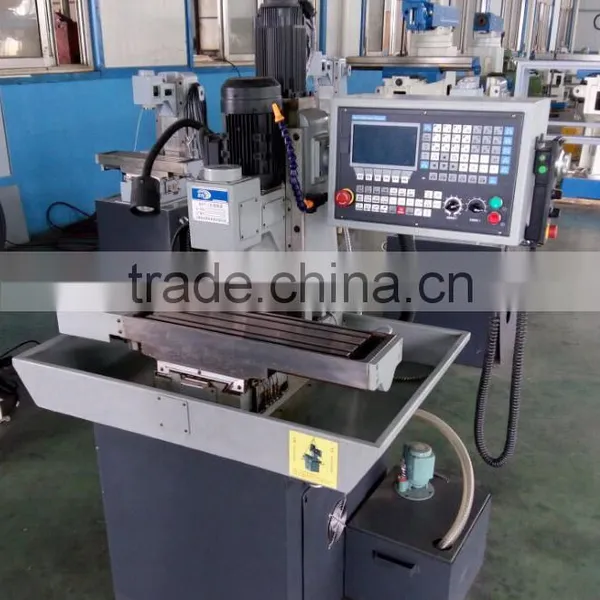

Mini CNC Milling Machine KBM7118
Key Features:
• Inverter main motor is used to realize variable speed
• Hardened and ground slide ways with long service life
• It can realize the X/Y/Z 3 axis combined motion
• It is idea equipment for small maintain workshop
Standard Configuration:
• CNC controller: Siemens SINUMERIK 808D
• Inverter main motor (stepless)

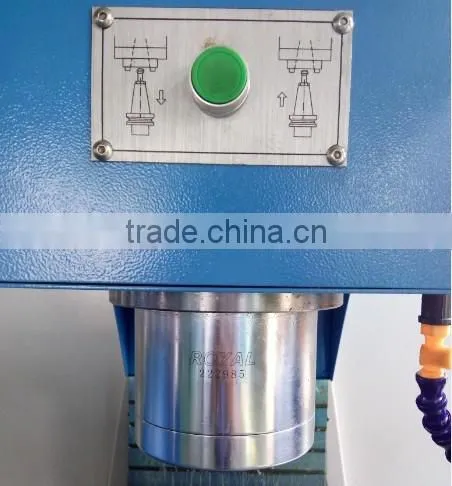

• BT30 spindle with 3000 r.p.m
• 3-axis slide (box) guideway
• Coolant system, Working light
• Operator manual in English
Parameter:
Model |
KBM7118 |
Table size (W×L) |
180×650mm |
Table travel (X/Y/Z) |
300×130×220mm |
Distance from spindle nose to table |
35-270mm |
Distance from spindle to column |
230mm |
Spindle taper |
BT30 |
Spindle speed range |
3000r.p.m |
X-axis motor torque |
6N.m |
Y-axis motor torque |
4N.m |
Z-axis motor torque |
4N.m |
Main motor power |
1.1kw (Inverter) |
Positioning accuracy |
0.02mm |
Repeatability accuracy |
0.01mm |
Machine weight |
620kg |
Overall dimension (L×W×H) |
1000×850×1470mm |

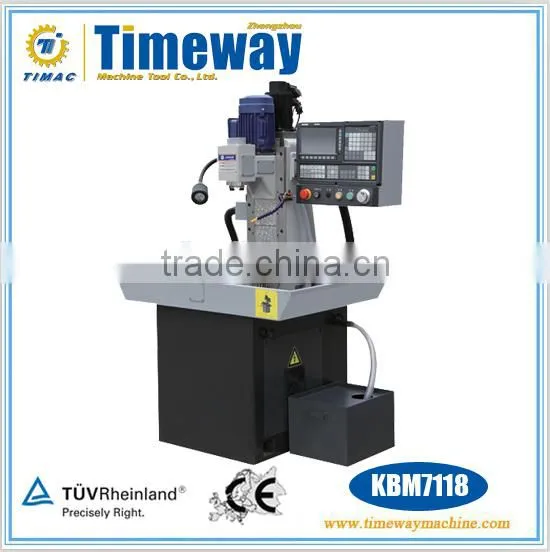

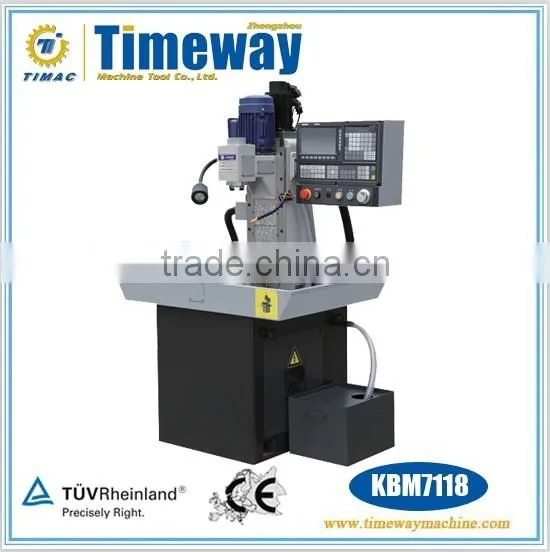

KBM7118 series
KBM7136C series
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 1900*2000*2230MM N.W./G.W.: 1500/1700KG
Container loaded: 3 sets / 20'GP
