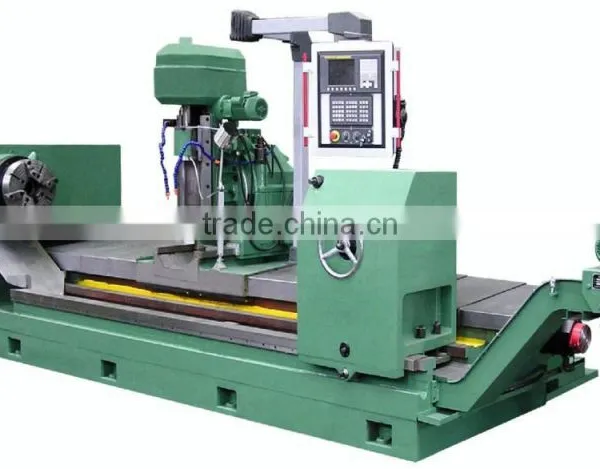

CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Gear Hobbing Machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)NegotiableMOQ: 1 Set -
Large Size CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)NegotiableMOQ: 1 Set
-
CNC Knee-type Vertical Milling MachineUS$ 9,000 - 15,000MOQ: 1 Set
-
5-AXES LINKAGE VERTICAL MACHINING CENTERNegotiableMOQ: 1 Set
-
Small CNC Milling Machine for School Education XK7126/XH7126NegotiableMOQ: 1 Set
Condition
New
Type
Gear Hobbing Machine
CNC or Not
CNC
Brand Name
Tiamc, Timeway
Model Number
HMK6016
Voltage
as require
Dimension(L*W*H)
5100x2135x1990mm
Weight
13000kg
Certification
ISO9001:2008, CE, SGS, TUV
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Features:
1. The machine is used for cutting straight tooth spline with all kind of tooth shape by using hobbing method.It is also used for cutting straightteeth collecting shaft gears as well as cutting taper splines and stepped gears.
2. All machanical system and parts with high rigidity compact constructions and fine protection functions,the hob speed is adjusttable from 60 to 600 r/min steplessly,but it can reach from 200 to 600r/min,the maximum speed of workpiece is 100 rotor, and the cutting efficiency is rather high.
3. In addition,the dry cutting can be come true in the condition of wind cooling.
| Specification | HMK6016 |
| Max.diameter to be machined | Φ160mm |
| Max.module to be machined | 5mm |
| Max.length of the workpiece | 3000mm |
| Max.length of the machined | 2750mm |
| Range of teeth to be machined | 4~60(teeth) |
| Center high of machine | 370mm |
| Max.size of milling cutter to be mounted | Φ130x200mm |
| Max.travel of tailstock sleeve | 50mm |
| Adjusting angle of milling head | ±15(degree) |
| No.of axes to be countrolled | 2 axis |
| No.of axes to be followed | 2 axis |
| Gears to be machined | straight teeth |
| Oveall dimensions (LxWxH) | 5100x2135x1990mm |
| Weight of the machine | 13000kg |
