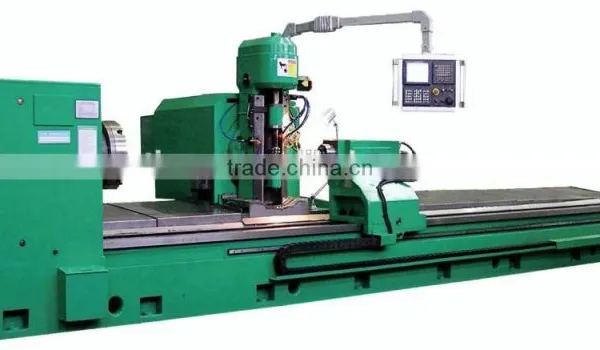

Help CenterLarge Size CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)
Related Products
-
CNC Knee-type Vertical Milling MachineUS$ 9,000 - 15,000MOQ: 1 Set -
5-AXES LINKAGE VERTICAL MACHINING CENTERNegotiableMOQ: 1 Set
-
Small CNC Milling Machine for School Education XK7126/XH7126NegotiableMOQ: 1 Set
-
CNC Vertical Machining CenterNegotiableMOQ: 1 Set
-
Fixed Beam Gantry Type CNC Machining CenterUS$ 60,000 - 160,000MOQ: 1 Set
Features:
1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.
2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC. As well as the cutting efficiency is rather high, the cry cutting can be come ture in the condition of wind colling.
3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.
4. Two different specification hobbing cutters can be mounted on the machine at the same time.It can cut different specification spline shaft and gear by
installing the workpiece only once.
5. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.
| Specification | HMK6050 | HMK6063 | HMK62120 |
| Max.diameter to be machined | Φ500mm | Φ630mm | Φ1200mm |
| Max.module to be machined | 14mm | 16mm |
hob milling 30, plate & finger milling 50 |
| Max.length of the workpiece | 3000~6000mm | 3000~6000mm | 3000~6000mm |
| Max.length of the machined | 2500~5500mm | 2500~5500mm | 2500~5500mm |
| Range of teeth to be machined | Arbitraty | Arbitraty | Arbitraty |
| Center high of machine | 600mm | 600mm | 1050mm |
| Max.size of milling cutter to be mounted | Φ220x250mm | Φ280x300mm | Φ360x400mm |
| Max.travel of tailstock sleeve | 100mm | 100mm | 100mm |
| Adjusting angle of milling head | ±45(degree) | ±45(degree) | ±45(degree) |
| No.of axes to be countrolled | 4~6 axis | 6 axis | 6 axis |
| No.of axes to be followed | 4 axis | 4 axis | 4 axis |
| Gears to be machined | straight teeth/helical teeth | straight teeth/helical teeth | straight teeth/helical teeth |
| Oveall dimensions (LxWxH) | 8300x2465x2354mm | 8300x2500x2400mm | 8300x4200x3100mm |
| Weight of the machine | 18000~25500kg | 18500~26000kg | 60000kg |
