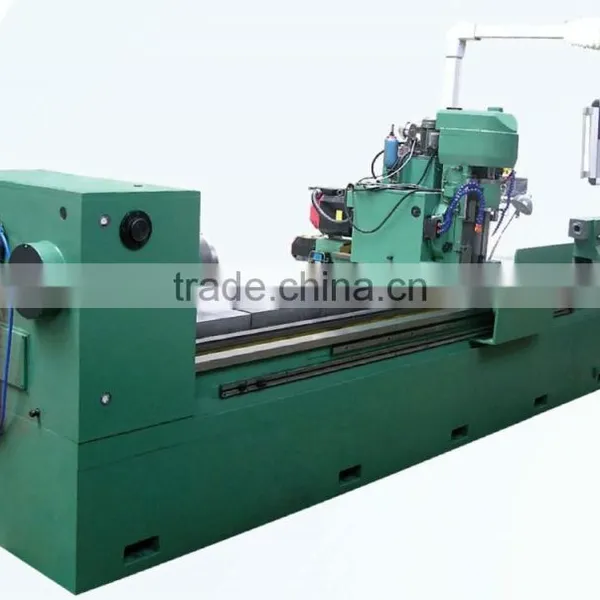

CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)

Zhengzhou Timeway Machine Tool Co., Ltd.
CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine) thumbnail-1
CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Gear Hobbing Machine
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Gear Hobbing Machine
CNC or Not CNC
Brand Name Tiamc, Timeway
Model Number HMK6030, HM6040A
Voltage as require
Dimension(L*W*H) 6600~8800xx2200x2220mm
Weight 16000~23500kg
Certification ISO9001:2008, CE, SGS, TUV
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Features:

1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.

2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC. As well as the cutting efficiency is rather high, the cry cutting can be come ture in the condition of wind colling.

3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.

4. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.



SpecificationHMK6030HMK6040A
Max.diameter to be machinedΦ300mmΦ400mm
Max.module to be machined10mm12mm
Max.length of the workpiece3000~6000mm3000~6000mm
Max.length of the machined2500~5500mm2500~5500mm
Range of teeth to be machinedArbitratyArbitraty
Center high of machine470mm470mm
Max.size of milling cutter to be mountedΦ180x230mmΦ200x240mm
Max.travel of tailstock sleeve70mm70mm
Adjusting angle of milling head±45(degree)±45(degree)
No.of axes to be countrolled4~6 axis4~6 axis
No.of axes to be followed4 axis4 axis
Gears to be machinedstraight teeth/helical teethstraight teeth/helical teeth
Oveall dimensions (LxWxH)6600~8800xx2200x2220mm6600~8800x2200x2220mm
Weight of the machine16000~23000kg16500~23500kg
