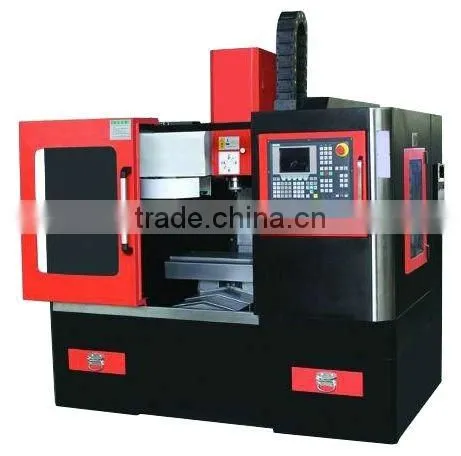

Small CNC Milling Machine for School Education XK7126/XH7126
Negotiable
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- China Port
- T/T Credit Card PayPal
You May Like
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
- Industrial CNC Milling Machine, production, Machine Center for steel, stainless
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | TIMAC |
Model Number: | XK7126 XH7126 | Type: | Vertical | CNC or Not: | CNC |
Product Description
Small Sized CNC Milling Machine
Features:
1. Resin sand castings with high rigidity;
2. Taiwan 3 axis linear guideway;
3. GSK218M CNC system;
4. BT30, Taiwan high speed spindle unit 8000rpm;
5. Separated hand-wheel;
6. Full guard structure;
7. Adjustable sizing block and screw;
8. Automatic intermittent lubrication.
9. With 12 stations tool magazine on model XH7126.
Specifications | Unit | XK7126/XH7126 |
Table size (L×W) | mm | 800×260 |
T slot No. /width/center distance | mm | 5-16-50 |
Maximum load | kg | 150 |
X travel | mm | 410 |
Y travel | mm | 260 |
Z travel | mm | 410 |
Spindle nose to table | mm | 80-490 |
Spindle center to column | mm | 315 |
Spindle taper | BT30 | |
spindle motor drive method | belt | |
3 axes motor drive method | direct | |
Max. spindle speed | Rpm | 8000 |
Main motor | kw | 2.2 |
X torque | N.M | 5 |
Y torque | N.M | 5 |
Z torque | N.M | 6 |
Max.install size---X axis | mm | Square 110×110, diameter φ95 |
Max.install size---Y and Z axis | mm | Square 130×130, diameter φ110 |
Rapid moving speed | m/min | 10 |
Cutting speed | mm/min | 1-4000 |
Ball screw (diametermm/pitch) X,Y axis | mm | 20/5 |
Ball screw (diametermm/pitch) Z axis | mm | 25/5 |
Linear guide way width (X,Y axis) | mm | 20 |
Linear guide way width(Z axis) | mm | 25 |
Positioning accuracy | mm | 0.016 |
Repeatability accuracy | mm | 0.008 |
Tool magazine capacity | 12 | |
Air pressure | Mpa | 0.6 |
Machine weight | kg | 1300 |
Machine overall size (L×W×H) | mm | 1900×1400×2100 |
