CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine)

CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine) thumbnail-1

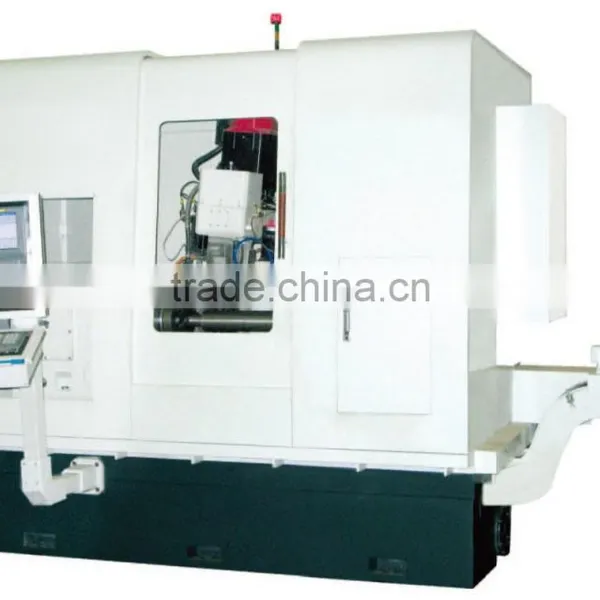

CNC Spline Shaft Milling Machine (Horizontal Gear Hobbing Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Gear Hobbing Machine
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Gear Hobbing Machine
CNC or Not CNC
Brand Name Tiamc, Timeway
Model Number HMK6020
Voltage as require
Dimension(L*W*H) 2500~3250x2470x2450mm
Weight 9000-12000kg
Certification ISO9001:2008, CE, SGS, TUV
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Features:



1. The machine is used for cutting straight-tooth and helicaitooth spline shaft,and straight-tooth,helical-tooth cylindrical geal workpiece with all kinds of tooth shape by using hobbing method.It can also hob straight-tooth and helical-tooth connecting shaft gear,and cutting taper spline,cone bottom spline as well as stepped gear.



2. The machine controls index by using electrical gear cabinet,the action of adjustment drive and shift of hob is finished automatically by CNC.And the precision is very high,it has wider range of speed of hobbing cutter .The hobbing speed is adjustable from 200r/min to 1200r/min steplessly.The maximum speed of workpiece is 200 rotors,and the cutting efficiency is rather high,as well as the cry cutting can be come ture in the condition of wind colling.



3. The machine can finish automatically single index and it can single index and it can single cut by using palte cutter.



4. Two different specification hobbing cutters can be mounted on the machine at the same time.It can cut different specification spline shaft and gear by installing the workpiece only once.



5. It is suitable for cutting all kinds of teeth shape spline shaft and gear in machine building industries.



SpecificationHMK6020
Max.diameter to be machinedΦ200mm
Max.module to be machined5mm
Max.length of the workpiece750~1500mm
Max.length of the machined650~1350mm
Range of teeth to be machined4~200(teeth)
Center high of machine370mm
Max.size of milling cutter to be mountedΦ130x200mm
Max.travel of tailstock sleeve70mm
Adjusting angle of milling head±45(degree)
No.of axes to be countrolled6 axis
No.of axes to be followed4 axis
Gears to be machinedstraight teeth/helical teeth
Oveall dimensions (LxWxH)2500~3250x2470x2450mm
Weight of the machine9000~12000kg
