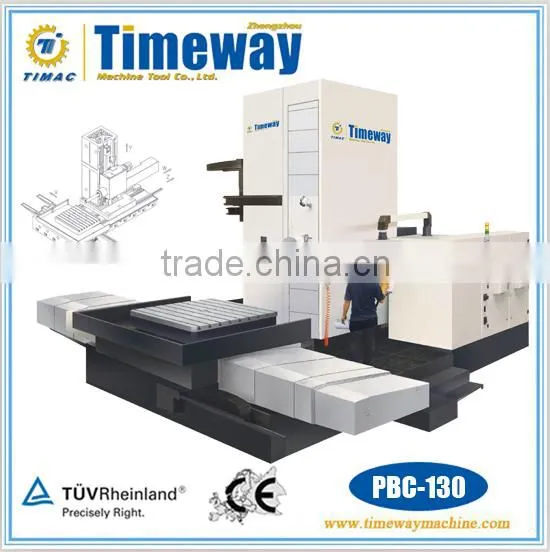

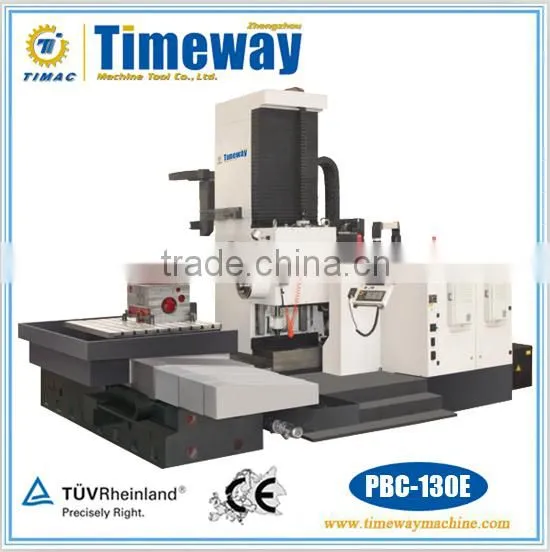

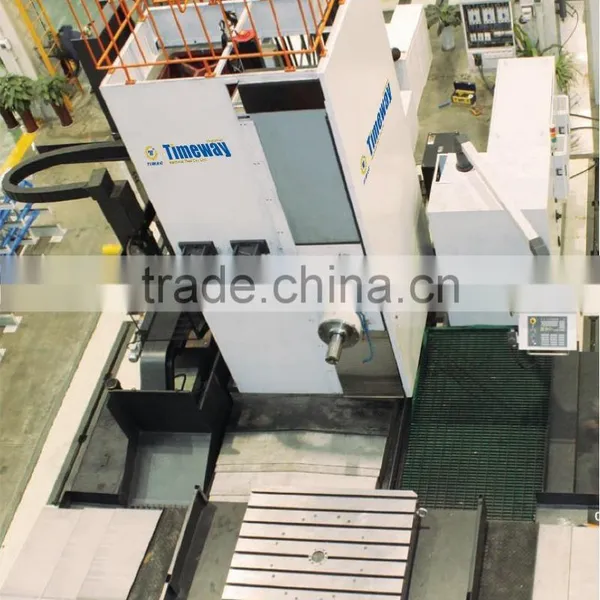

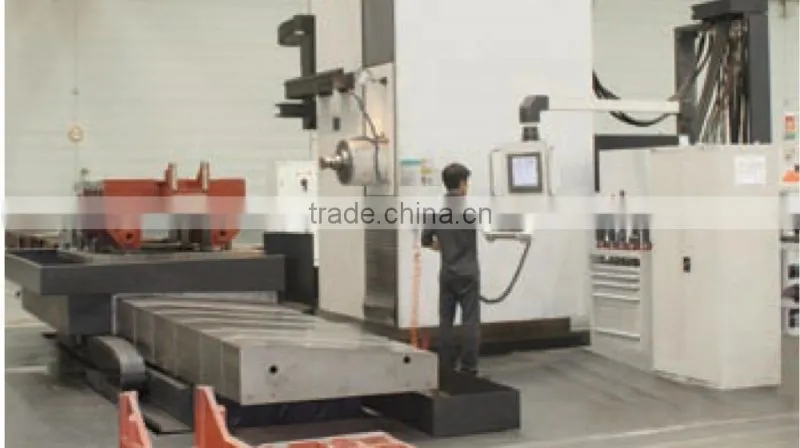

CNC Planer-type Horizontal Boring and Milling Machine Or Machining Center

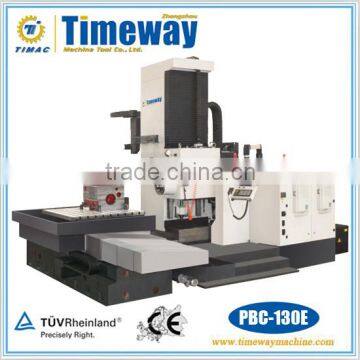

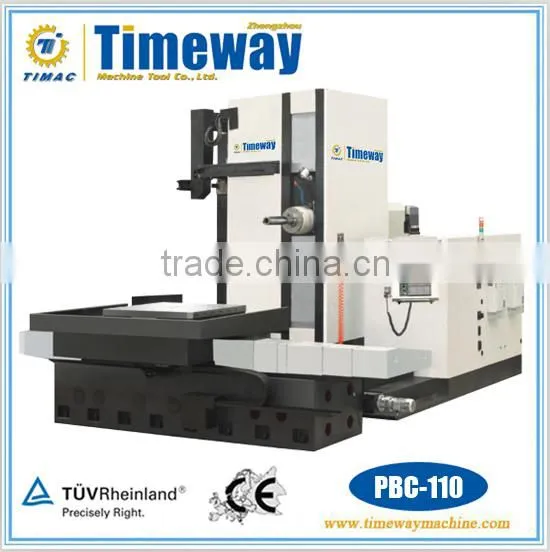

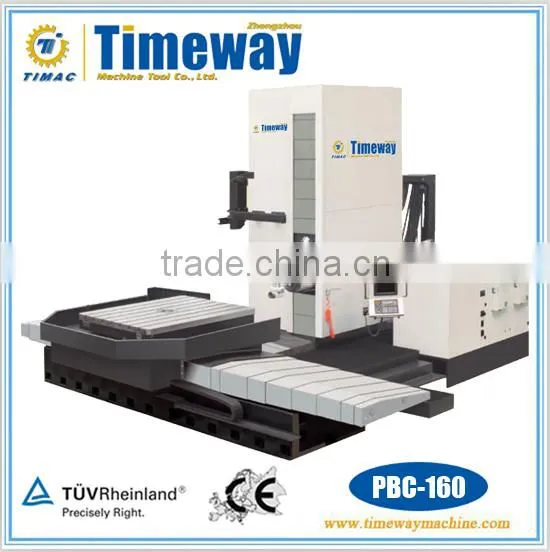

PBC-110 PBC-130 PBC-130E PBC-160
Machine summary
The machine tool is used for the processing of all kinds of large and medium parts,basic parts,box.It can high-efficietly and high-precision finish the processing of procedures of the parts, such as milling , drilling , boring , tapping. It realized linear interpolation,helical interpolation,arc interpolation,arbitrary four axis linkage.When optional CNC rotary table ,it increase greatly the processing range.
It is suitable for standard machinery, aviation, aerospace, automotive, nuclear, industry, energy, mould, locomotive, juki, engineering machinery, ships, machine tools, electronics, printing, textile and other manufacturing industries.
Feature and Performance
1.Double walled column construction provide very high torsional bending resistance.
2.The design of enhanced lathe bed,to increase its capacity and variable resistance.
3.Spindle bearing and spindle gear adopt the thin oil circulation cooling,lubrication.
4.Multiple roller linear guide and multiple sliding block with groups,ensure the reliable bearing capacity and service life.
High Performance
1.Broad stroke meet different processing requirements.
2.Table of differnt size and capacity is suitable for various parts processing.
3.Chip removal system is safe ,convenience,environmental protection.
High Precision
1.Two level 4steps gearboxes provide strong cutting force for spindle,wide speed range meet different processing requirements.
2.High-precision rotary table provide exact positioning for processing .
3.X,Y,Z axis is driven by servo motor that through high-precision servo reducer and screw connection,moving parts more stability.
4.The key parts are imported brand,such as screw, rolling linear guide,anti-backlash gear box,servo reducer,spindle bearing ,rotary supporting and gear ring.
5.Spindle back-bearing adopts tapered roller bearing with hydraulic penal,through adjustment oil pressure for changing the bearing pre-tightening force,achieving spindle performance of slow speed and high-rigidity,high-speed and high-precision.
Man-machine Engineering
1.Humanized indexable operation station.
2.The overall appearance of protection provide the operator with safety protection.
PBC-110 PBC-130 PBC-130E PBC-160
Standard configuration
Infinitely variable speed spindle box,adopt gear-box structure
Spindle constant temperature cooling system.
Pneumatic and hydraulic system
Centralized lubrication system
Tool cooling system
Machine protection shield
Guide protection shield
Screw-type chip conveyor
Chain-type chip conveyor
Electric cabinet control part
Headstock balance system
Air gun for cleaning
Handheld operational unit
Rigid tappiing
Electric cabinet air condition
Full enclosed-loop grating scale
Optional configuration
FANUC 31i,SIEMENS 840D CNC system
Workpiece automatic measuring device
Tool automatic measuring device
Spindle central water discharge
Tool magazine capacity 40T/60T tools
A variety of milling head ,swing plate and accessories
Technical parameters
| Specifications | Units | PBC-110 | PBC-130 | PBC-160 | PBC-130E | |
| Table | ||||||
| Table size | mm | 1400*1200 | 1400*1600 | 2000*2200 | 1600*1800 | |
| Max.load of worktable | kg | 8000 | 10000 | 30000 | 10000 | |
| T-slot size | mm | 7-28*160 | 9-28*160 | 7-36*250 | 9-28*160 | |
| Capacity | ||||||
| Worktable transverse travel | X | mm | 2000 | 2500 | 4000 | 2500 |
| Headstock vertical travel | Y | mm | 1600 | 2000 | 2500 | 2000 |
| Boring spindle travel | W | mm | 600 | 800 | 1000 | 800 |
| Column longitudinal travel | Z | mm | 1200 | 1600 | 2000 | 1600 |
|
Distance from spindle center to worktable surface |
mm | 0-1600 | 0-2000 | 0-2500 | 0-2000 | |
|
Distance from boring spindle end to worktable center |
mm | 75-1875 | 0-2400 | 75-3075 | 0-2400 | |
| Spindle | ||||||
| Boring spindle diameter | mm | Φ110 | Φ130 | Φ160 | Φ130 | |
| Spindle taper | ISO NO.50 | ISO NO.51 | ISO NO.52 | ISO NO.53 | ||
| Spindle speed range | rpm | 10-3000 | 10-2500 | 10-1600 | 10-1200 | |
| Spinde output torque | N.m | 2013/2395 | 3068/4152 | 4030/5507 | 3068/4152 | |
| Spindle motor power | kw | SIEMENS:18.5/25.5 | SIEMENS:22/30 | SIEMENS:30/41 | SIEMENS:20/30 | |
| Tool magazine | ||||||
| Capacity | T | 40 | 40(60) | 40(60) | 40 | |
| Tool changing type | Fixed | Fixed | Fixed | Fixed | ||
| The time of tool change | sec | 20 | 20 | 20 | 20 | |
| Max.length of tool | mm | 400 | 400 | 400 | 400 | |
| Max.diameter of tool | mm | Φ125 | Φ125 | Φ125 | Φ125 | |
| Max.weight of tool | kg | 25 | 25 | 25 | 25 | |
| Feeding | ||||||
| Feeding speed | X/Y/Z | mm/min | 2-6000 | 2-6000 | 2-6000 | 2-6000 |
| W | mm/min | 2-2000 | 2-2000 | 2-2000 | 2-2000 | |
| B | °/min | 10-180 | 10-180 | 10-180 | - | |
| Rapid feeding speed | X/Y/Z | mm/min | 10000 | 10000 | 10000 | 10000 |
| W | mm/min | 3000 | 3000 | 3000 | 3000 | |
| Worktable swing speed | rpm | 4 | 4 | 2.7 | 4 | |
| Accuracy | ||||||
| Positioning precision | X/Y | mm | 0.016/0.016 | 0.018/0.018 | 0.02/0.018 | 0.032/0.026 |
| Z/W | mm | 0.014/0.012 | 0.016/0.012 | 0.016/0.012 | 0.026/0.026 | |
| B | ″ | 6 | 6 | 8 | 12 | |
Repeat posotioning precision |
X/Y | mm | 0.012/0.012 | 0.013/0.013 | 0.014/0.014 | 0.026/0.02 |
| Z/W | mm | 0.012/0.01 | 0.012/0.01 | 0.012/0.011 | 0.02/0.02 | |
| B | ″ | 4 | 4 | 6 | - | |
| Machine weight | kg | 60000 | 66000 | 84000 | 70000 | |
| Machine dimension | mm | 5800*6800*5200 | 7900*6700*5000 | 9100*8500*6500 | 7050*6850*5650 | |

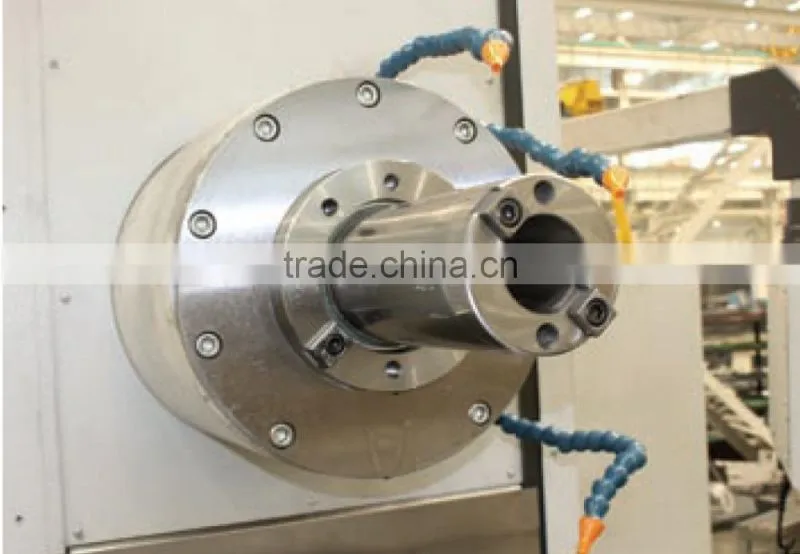

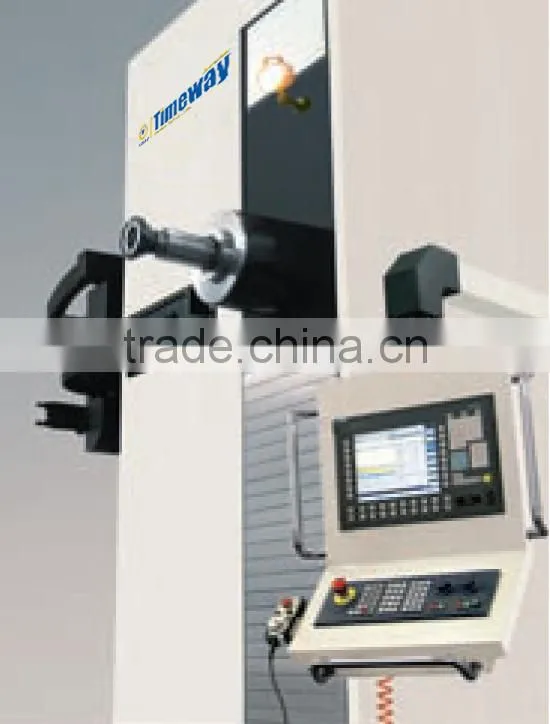

Spindle and Spindle box

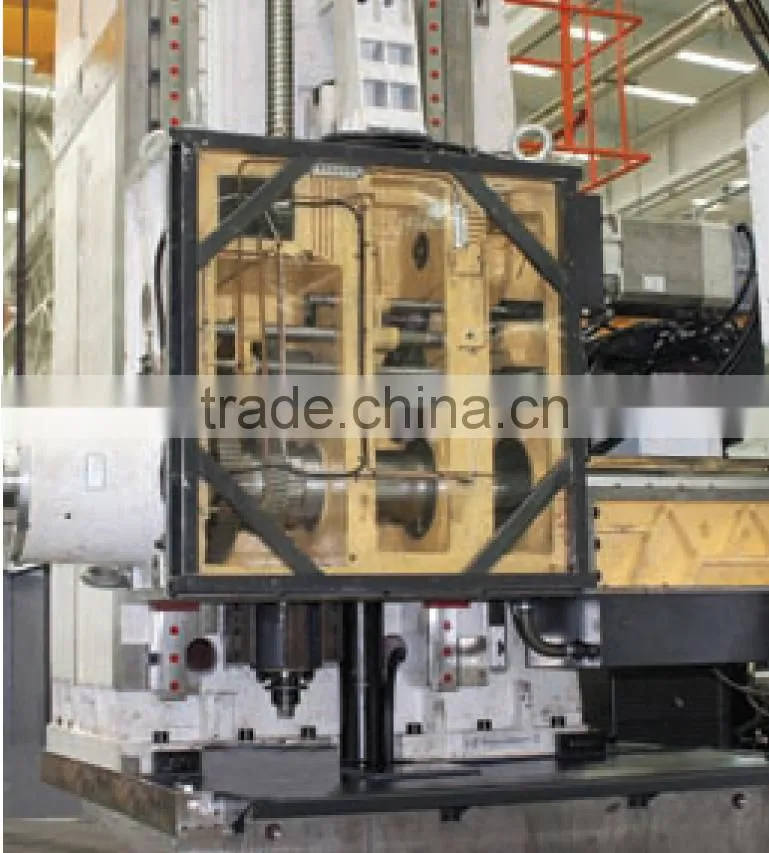

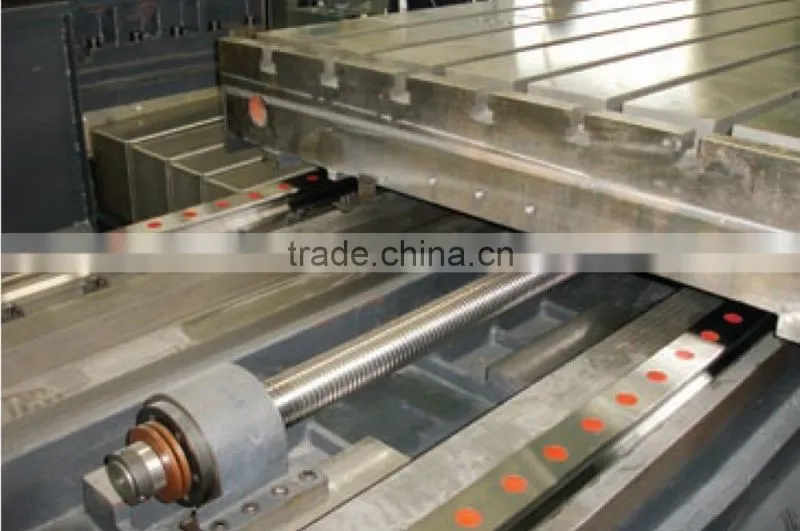

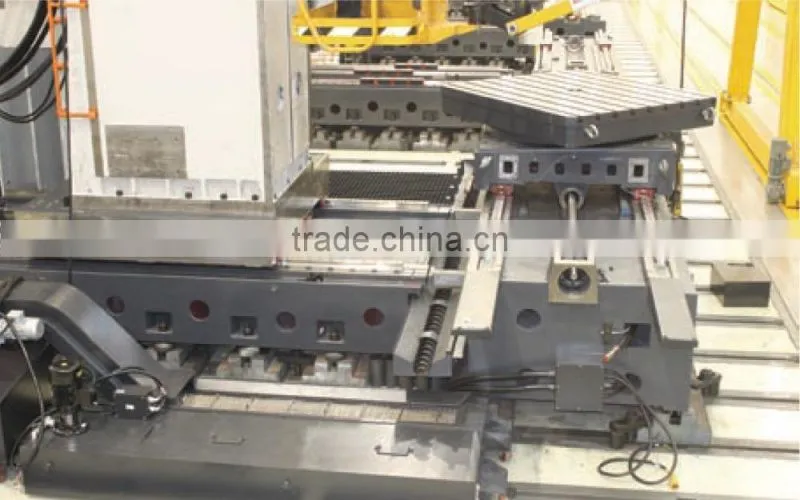

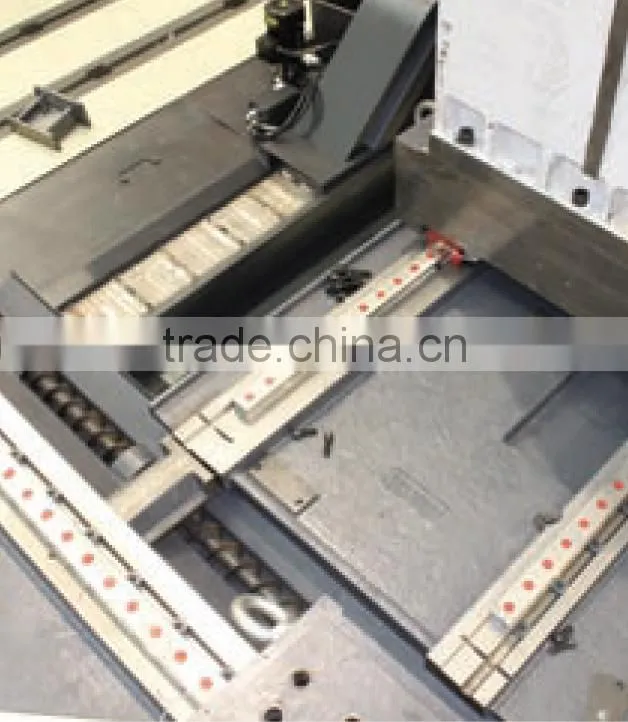

Rail & Screw & worktable
|
|
|

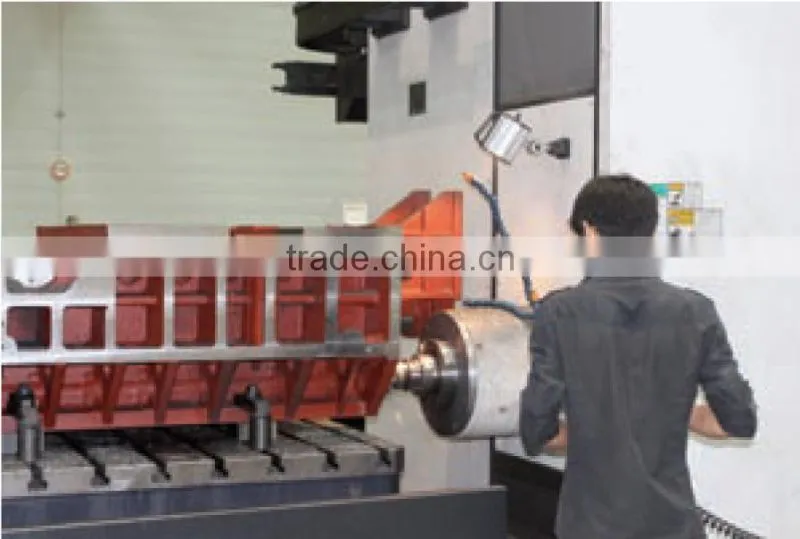

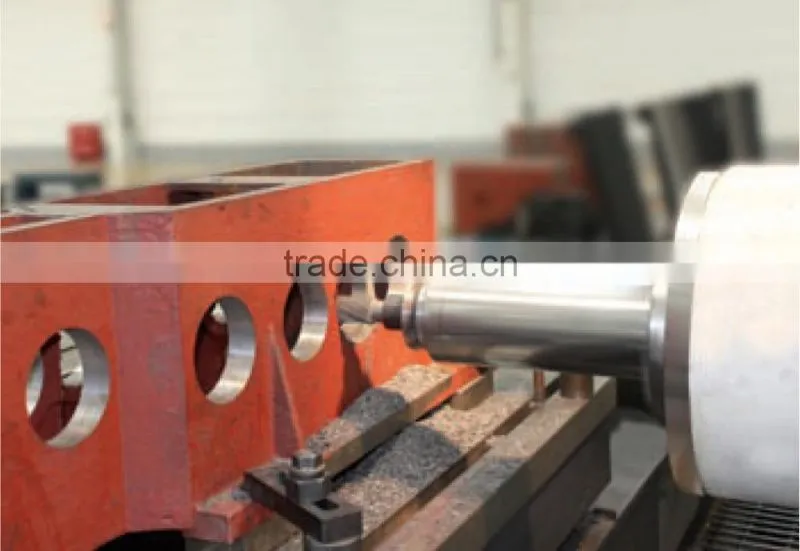

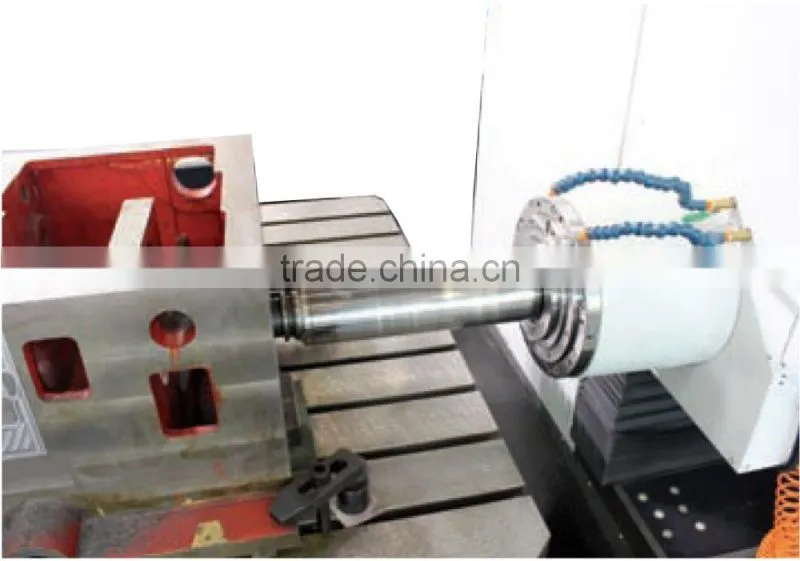

Processing Parts
|
|
|
|
