CNC Floor-type Horizontal Boring and Milling Machine or Machining Center
- 50 Set / Sets per Month
- China Ports
- T/T
Product Details
Condition: | New | CNC or Not: | CNC | Production Capacity: | 50sets/year |
Brand Name: | TIMAC | Model Number: | FBC-160 | Voltage: | 380V |
Power(W): | Spindle motor power 60/75KW | Weight: | 124000kg | Certification: | ISO CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

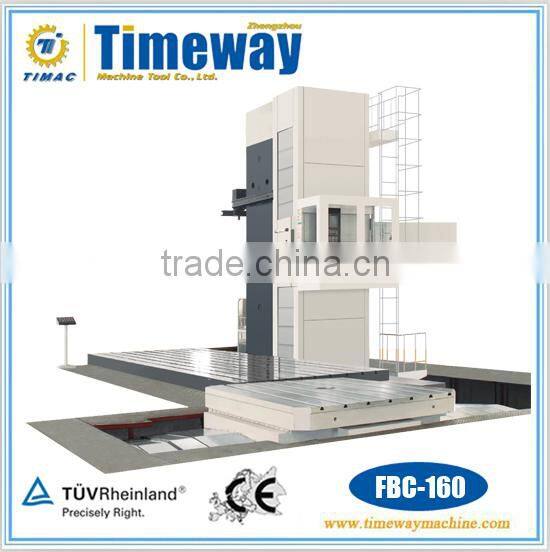

CNC Floor-type Horizontal Boring and Milling Machine Or Machining Center
FBC-130 FBC-160 FBC-200
Machine summary
The machine tool is used for the processing of all kinds of large and medium parts, basic parts, box. It can high-efficietly and high-precision finish the processing of procedures of the parts, such as milling , drilling , boring , tapping. It realized linear interpolation, helical interpolation, arc interpolation, arbitrary four axis linkage. When optional CNC rotary table , it increase greatly the processing range.
It is suitable for standard machinery, aviation, aerospace, automotive, nuclear, industry, energy, mould, locomotive, juki, engineering machinery, ships, machine tools, electronics, printing, textile and
other manufacturing industries.
Structure and performance
1.Apply super high column and spindle box,Spindle box adopts enclosed box-type structure,high strength. Column adopts M type cloth reinforced with internal corners of reinforced structure which can guarantee great precision.
2.Between lower saddle and lathe bed transmit by gear and rack,high power,high torque.
3.It is equipped with platform inpendent lift operation .
4.The ram out automaticlly compensate with hydraulic balance system.
5.According to machine size ,HFBC16 series bed adopts four article heavy load linear rolling guides,large load capacity ,good rigidity.
High Performance
1.The machine adopts the design of speed changing box with high-mid.-low three level gear that spindle speed is 3-1600rpm.It can meet the requirement of different cutting speed and torque .
2.The travel of super-high column ,spindle box ,square ram,boring bar, that can meet high-precision and high-rigidity processing of all kinds of large , super-large parts.
3.Square ram with high quality ductile iron material and spindle bearing with heavy load and high-speed , make boring bar finish cutting with large torque and high-speed.
High Precision
1.Apply large specification ,high-precision linear rolling guide ,guarantee all axis flexible motion,good stability.
2.Apply the ebtirely closed-loop control with high-precision grating scale, positioning precision high.
3.Spindle box and square ram adopt hydraulic compensation accuracy, it gaurantee the requirement of high-precision when square ram out.
4.All axis adopt grating scale ebtirely closed-loop test system.
Man-machine Engineering
1.Inpendent lift platform operation,easy to look and adjustment at the different height of the workpiece process.
2.Totally enclosed preparation,good safety.
3.Fully automatic chip removal .
Technical parameters of Machine Tools
Specifications | Units | FBC-130 | FBC-160 | FBC-200 | |
Capacity | |||||
Column transverse travel(X) | m | 4/6/8/10/12/15 | 4/6/8/10/12/15 | 6/8/10/12/15 | |
Headstock vertical travel(Y) | mm | 2500/3000/3500 | 3000/3600/4000/4500 | 3500/4000/4500 /5000/6000 | |
Square ram travel(Z) | mm | 1000 | 1250 | 1250 | |
Boring spindle axial travel(W) | mm | 800 | 1000 | 1250 | |
Max.boring diameter | mm | Φ500 | Φ600 | Φ700 | |
Max.drilling diameter | mm | Φ50 | Φ60 | Φ80 | |
Spindle | |||||
Boring spindle diameter | mm | Φ130 | Φ160 | Φ200 | |
Milling spindle diameter | mm | Φ240 | Φ260 | Φ330 | |
Spindle taper | ISO NO.50 | ISO NO.50 | ISO NO.60 | ||
Boring spindle speed range | rpm | 3-2000 | 3-1600 | 3-1600 | |
Boring spindle output torque | N.m | 3543/4885 | 5982/8380 | 18800 | |
Milling spindle output torque | N.m | 4900 | 8300 | 22000 | |
Spindle motor power | kw | SIEMENS:37/51 | SIEMENS:60/75 | SIEMENS:100 | |
Ram cross-sectional area | mm | 450*500 | 450*500 | 530*600 | |
Tool Magazine | |||||
Capacity | T | 60 | 60 | 60 | |
Tool change type | Optional | Optional | Optional | ||
The time of tool change | sec. | 15″ | 15″ | 20″ | |
Max.length of tool | mm | 400 | 400 | 500 | |
Max.diameter of tool | mm | Φ250 | Φ250 | Φ320 | |
Max.weight of tool | kg | 25 | 25 | 50 | |
Feeding | |||||
Feeding speed(X/Y/Z/W) | mm/min | 1-5000 | 1-5000 | 1-5000 | |
Rapid feeding speed(X/Y/Z/W) | mm/min | 6000 | 6000 | 6000 | |
Accuracy | |||||
Positioning accuracy | X/Y | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 |
Z1 | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
Z/W | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
Repeat positioning accuracy | X/Y | mm | 0.008/1000 | 0.008/1000 | 0.008/1000 |
Z1 | mm | 0.008/1000 | 0.008/1000 | 0.008/1000 | |
Z/W | mm | 0.008/1000 | 0.008/1000 | 0.008/1000 | |
Machine weight | kg | 102000 | 124000 | 180000 | |
Power capacity | Kva | 128 | 128 | 150 |

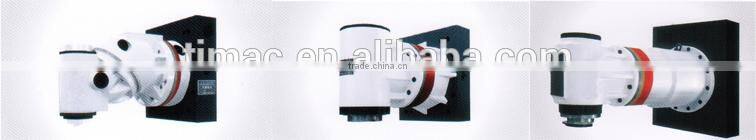

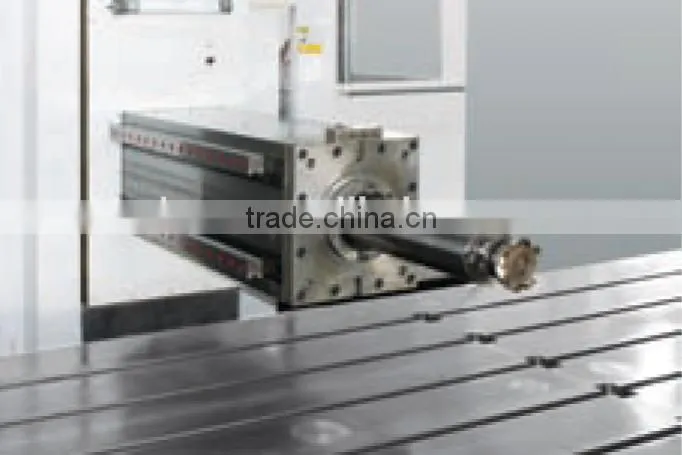

Milling Head (Optional)
Universal Milling Head Right-angle Milling Head Longer Right-ange Milling Head

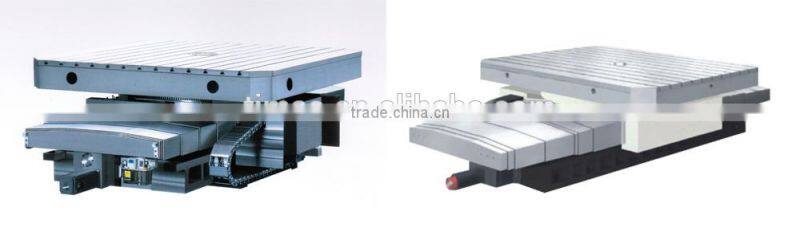

Technical Parameters of CNC Moving Rotary Table
Specifications | Units | MRT200*220 | MRT220*260 | MRT300*350 | |
Table size | mm | 2000*2200 | 2400*2600 | 3000*3500 | |
Bench height | mm | 1400 | 1495 | 1880 | |
T-slot size | mm | 9-28-200 | 9-36-250 | 9-42-320 | |
Worktable straight travel | mm | 2000 | 2500 | 3000 | |
Worktable swing angle | ° | 360 | 360 | 360 | |
Positioning precision | ″ | ±5 | ±5 | ±10 | |
Repeat positioning precision | ″ | ±3 | ±3 | ±6 | |
Max.load of worktable | kg | 30000 | 40000 | 65000 | |
Worktable weight | kg | 18000 | 22000 | 35000 |
Technical parameters of CNC swing plate
Specifications | Units | SP-600 | |
Table diameter | mm | Φ600 | |
Slide travel | mm | 0-200 | |
Max. swing over carriage | mm | Φ1000 | |
Max.speed | r/min | 250 | |
Radial force | N | 1000 | |
Positioning precision of straight motion | mm | 0.045 | |
Repeat positioning precision | mm | 0.03 | |
The average reverse value | mm | 0.025 |

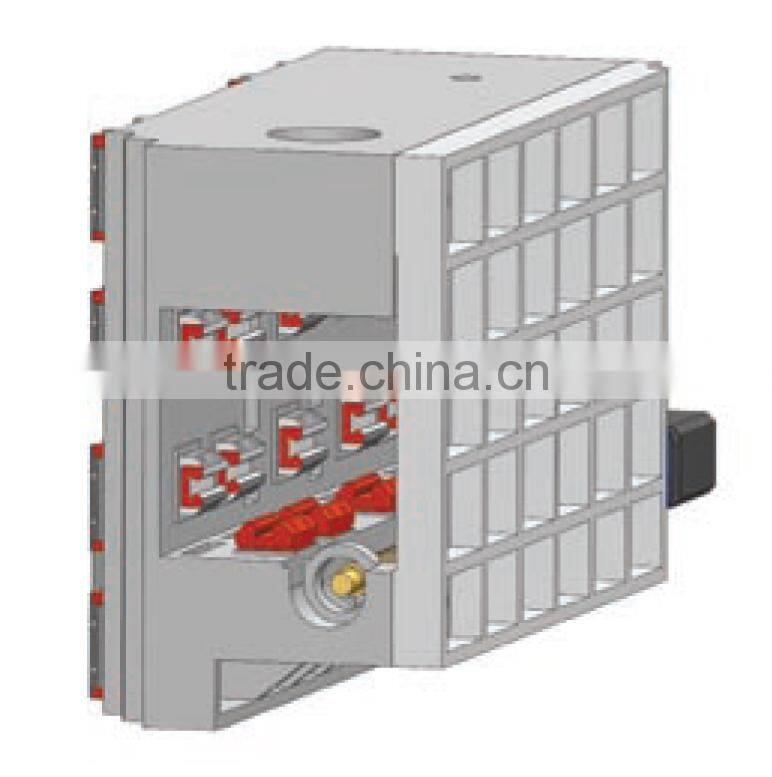

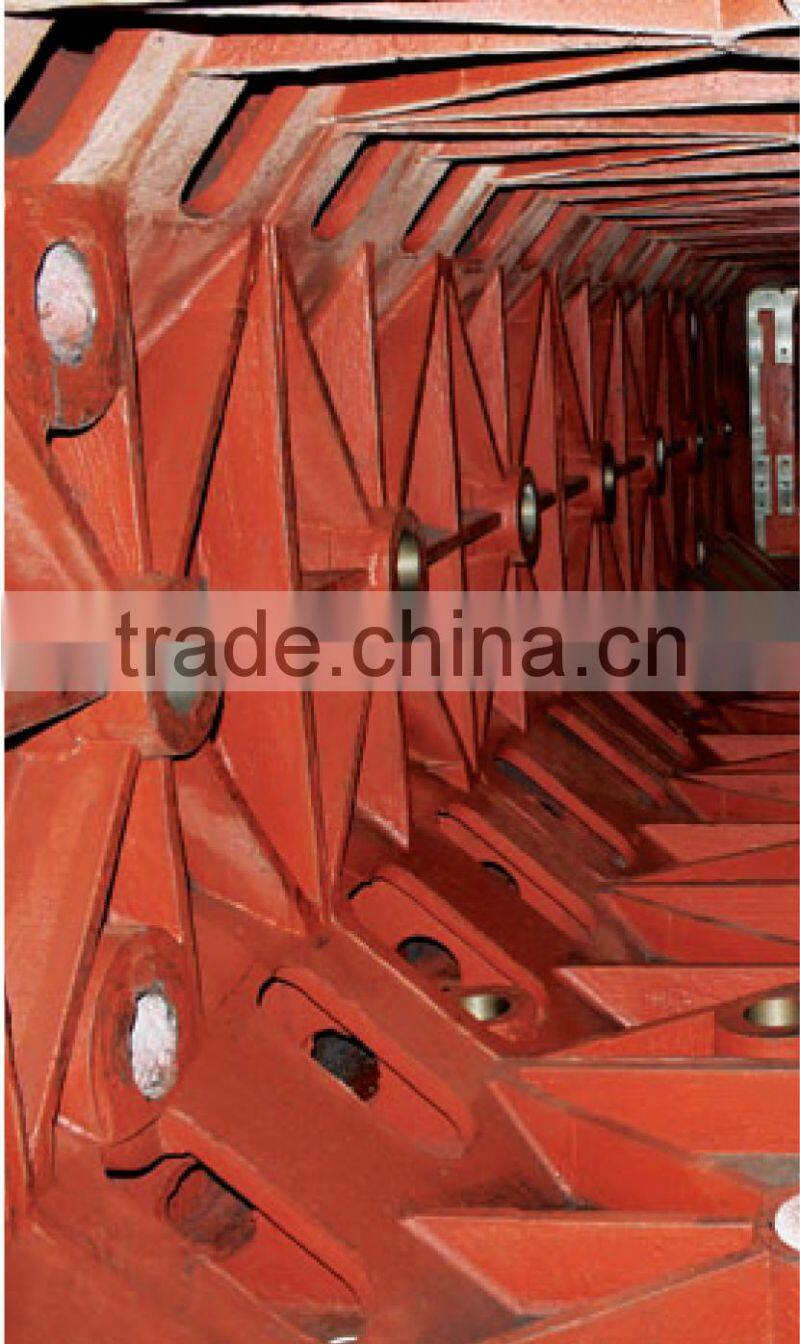

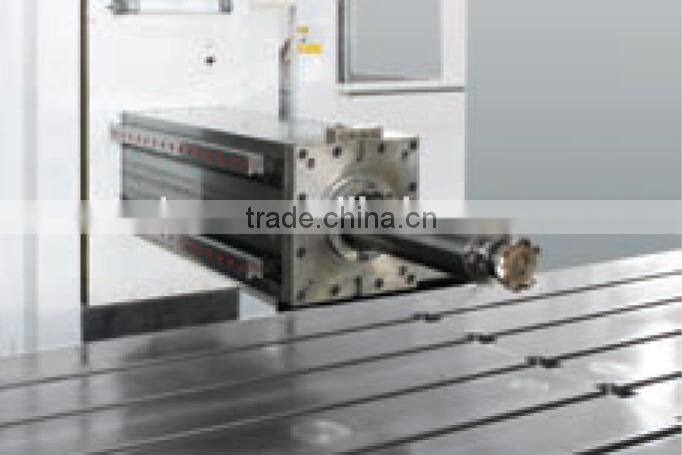

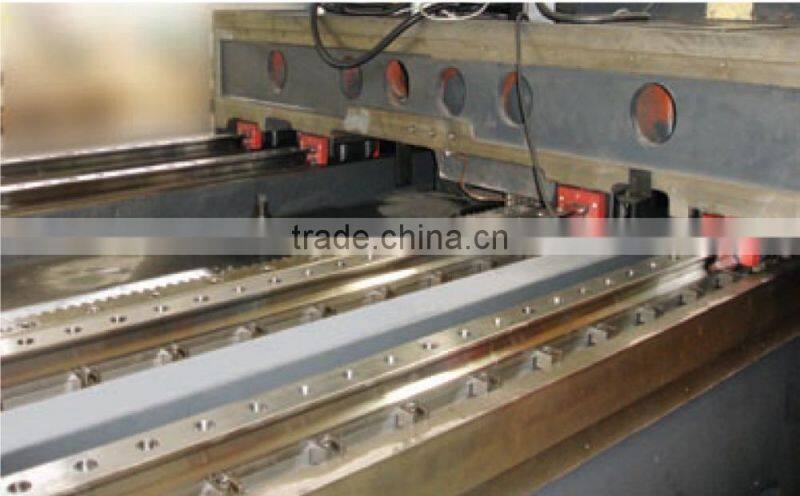

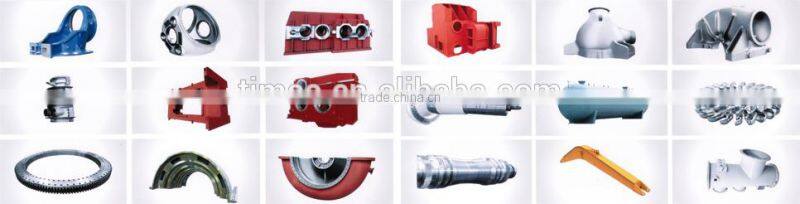

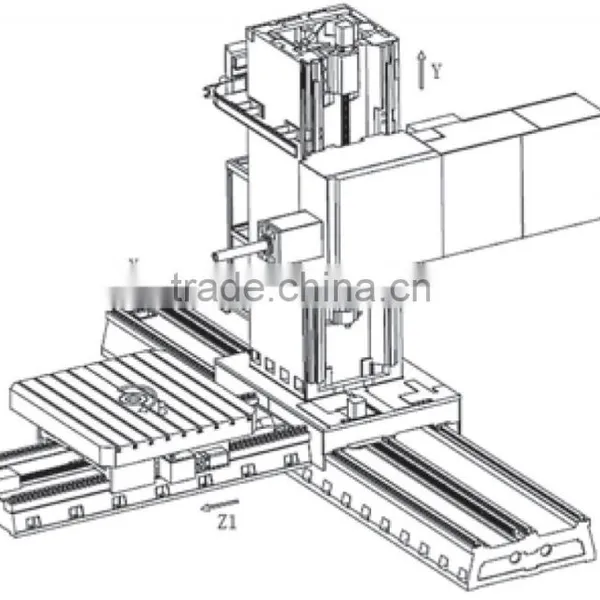

Structures and Parts

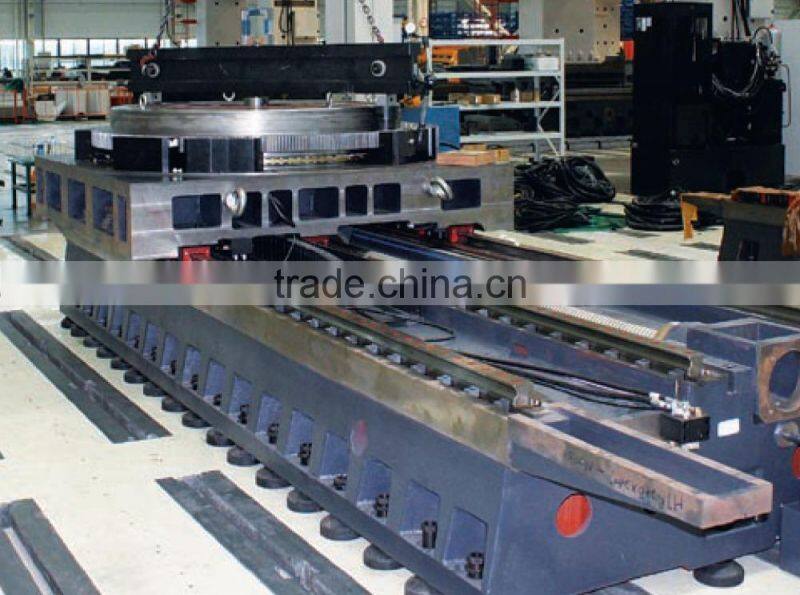

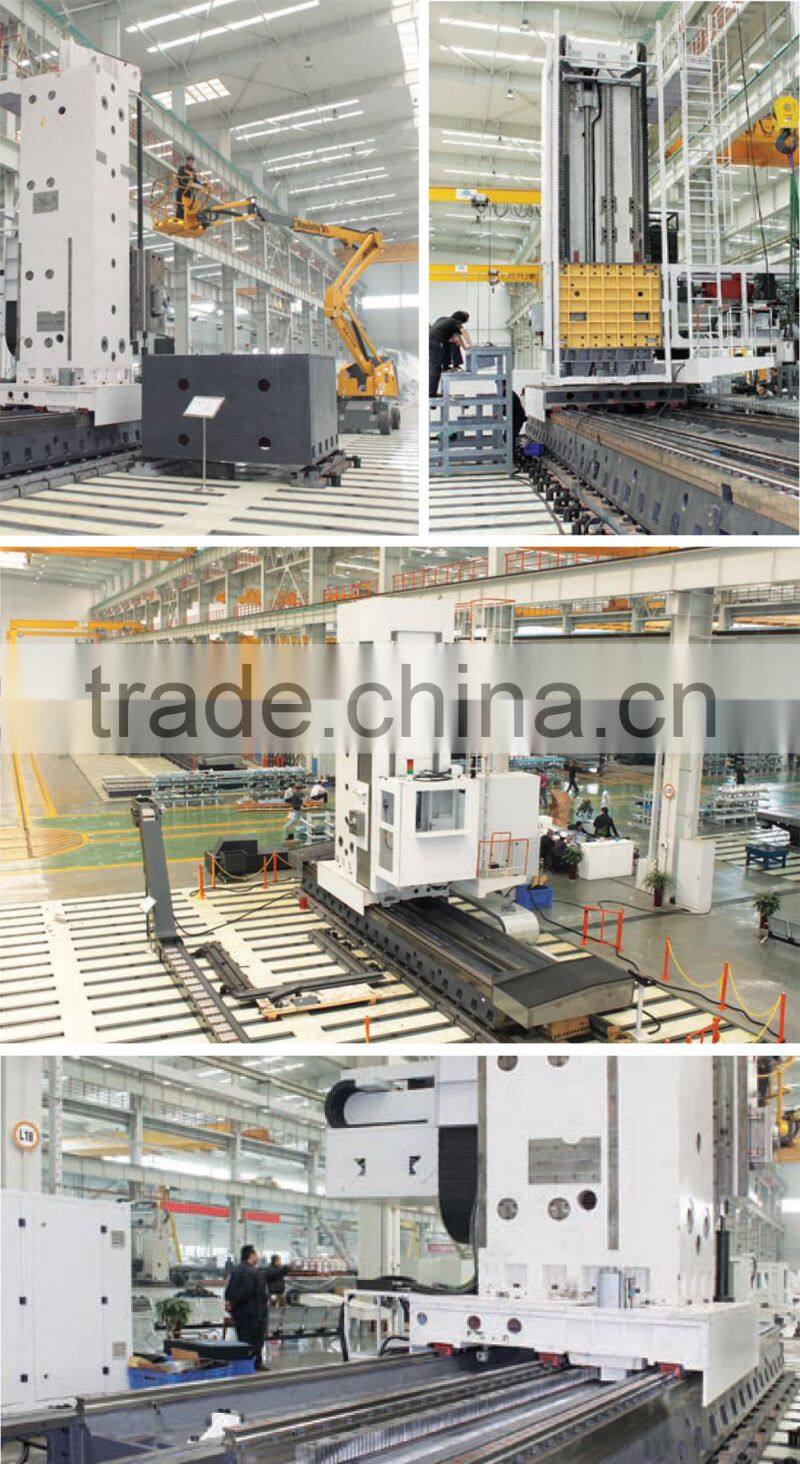

Machine tool assembly site

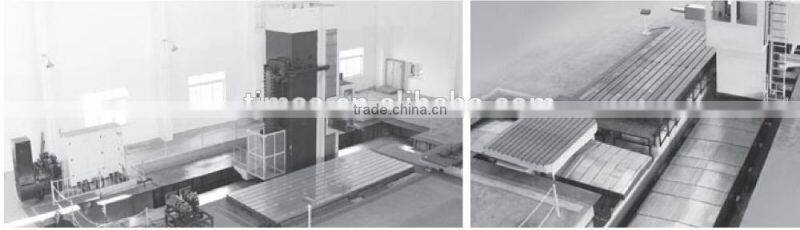

Machine Tool Installation
Processing Workpieces
