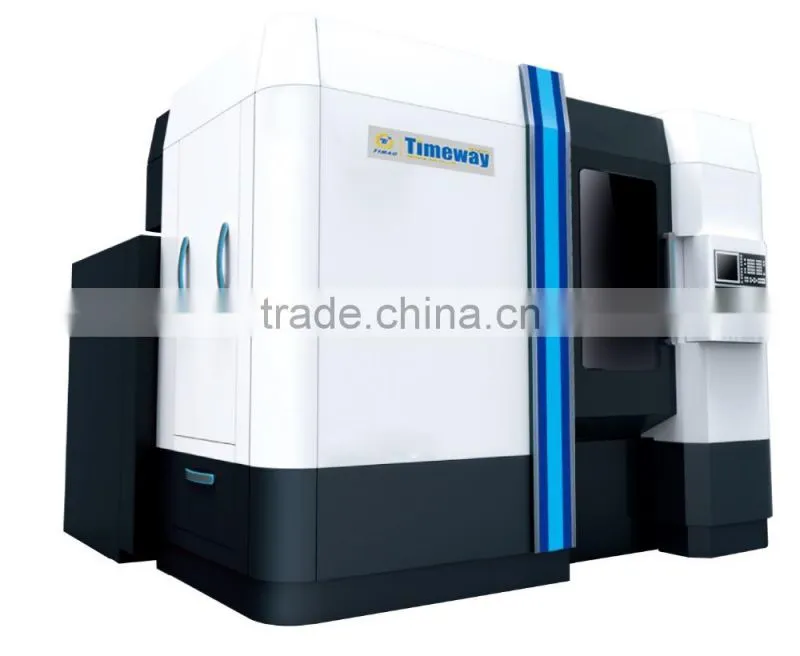

Economical and High Efficiency CNC Gear Hobbing Machine

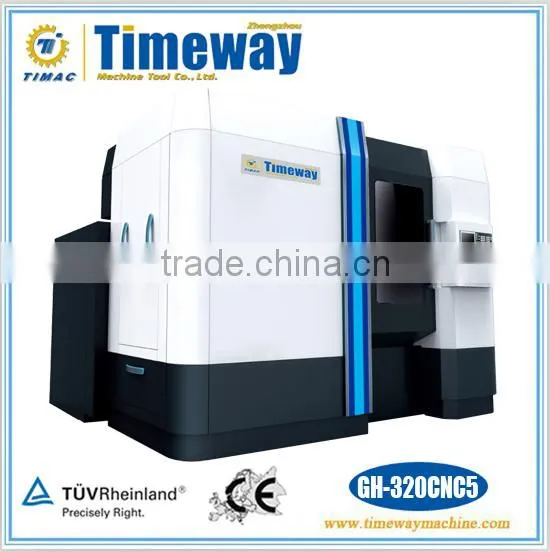

GH-320CNC4 GH-320CNC5
Machine Summary
The model GH-320CNC4 heavy-duty CNC gear hobbing machine is of 4 axes CNC one, its control axes: X-axis--radial feed motion; B-axis--rotary motion of the hob spindle; C-axis--rotary motion of the worktable and Z-axis-- the axial feed motion. Its 4-axis coordinated control: B, C, X and Z. Y-axis--hob shifting controlled by AC motor.
The model GH-320CNC5 heavy-duty CNC gear hobbing machine is of 4 axes CNC one. Its 4 axes coordinated control: B, C, X and Z. An extra Y-axis the hob shifting is controlled by servo-motor. The series economic machines are designed to cut cylindrical spur & helical gears, crowning or slightly tapered gears, etc. and can bear capacity of heavy load under powerful and high speed cutting. It is suited for the industries that produce gears in mass production, such as automobile, engineering, etc.
Performance and Feature
1. Being of vertical design: main bulky components like bed and column adopt the double-wall construction with large-sized reinforce-rib, rectangular and ample guideways covered with Telfon, so the machine features conpact construction, short transmission chain high accuracy. Axial(Z-axis) and radial(X-axis) feed axes are driven by AC servo motors through preloaded ball screws. All guideways are automatic lubricated.
2. The frequency converter for spindle drive, CNC controller, and the key hydraulic components are all from the reputable manufacturers.
3. The machine with high degree of automation can work in several square cycles; in addition cutting parameters can also be changed automatically in each square cycle. Either climb or conventional method may be used. Meanwhile the machine can cut workpiece with using multi-start hob and higher feed rate.
4. CNC control system: FANUC system if used as standard SIEMENS system is altemative one. The machine with high degree of automation can work repeatedly under the square cycles. Changing radial feed rate, selection of climb or conventional hobbing, hob shifting functions are avaiable.
5. The main components of control system are supplied by renowned companies.
Remarks
Standarad equipment: main machine, hob arbor assemblies Φ32 one for each, a complete set of change gears, tools for installion and adjustment.
Technical Parameters
| Specifications | Units | GH-320CNC4 | GH-320CNC5 |
| Max. workpiece dia. | mm | 320 | 320 |
| Max. module | mm | 8 | 8 |
| Min. No. of teeth | 6 | 6 | |
| Min. unit for programming | mm | 0.001 | 0.001 |
| Max. worktable speed | rpm | 60 | 60 |
| Hob spindle speed range(B-axis) | rpm | 120-700 | 120-700 |
| Axial feed speed | mm/r | 0.5-4 | 0.5-4 |
| Radial feed speed | mm/r | 1-4 | 1-4 |
| Center distance between hob and worktable | mm | 40-320 | 40-320 |
| Distance between hob axis and worktable surface | mm | 210-570 | 210-570 |
| Distance between tailstock end face and worktable surface | mm | 350-750 | 350-750 |
| Hob axial travel | mm | 200 | 200 |
| Max. hob head swivel angle | deg | ±45 | ±45 |
| Max. hob diameter*length | mm | 170*230 | 170*230 |
| Worktable dimension(diameter*bore diameter) | mm | 320*100 | 320*100 |
| Motor capacity/Main motor power | Kva/kw | 50/15 | 50/15 |
| Machine dimension(L*W*H) | cm | 434*408*275 | 434*408*275 |
| N.W/G.W | kg | 12500/14000 | 12500/14000 |
| No. of cases | 4 cases in total | 4 cases in total |

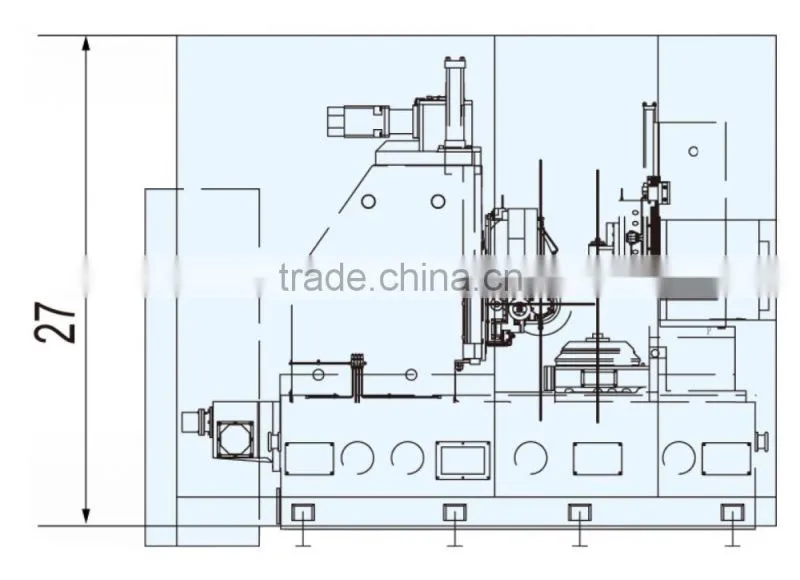

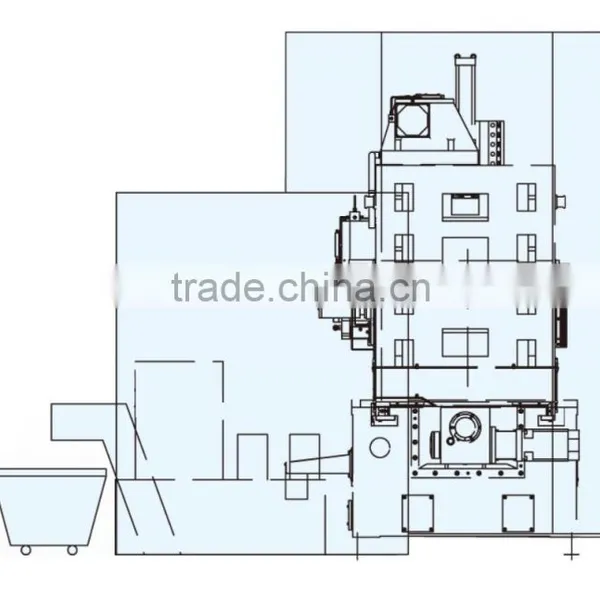

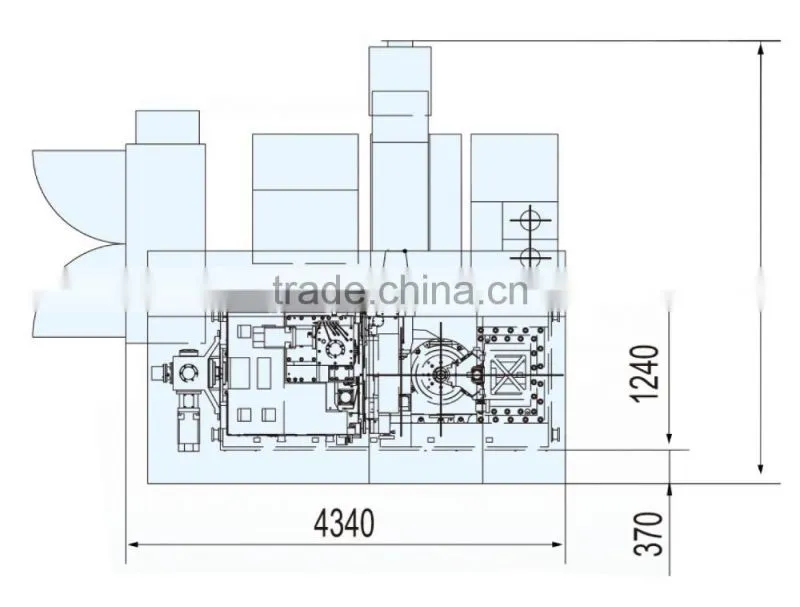

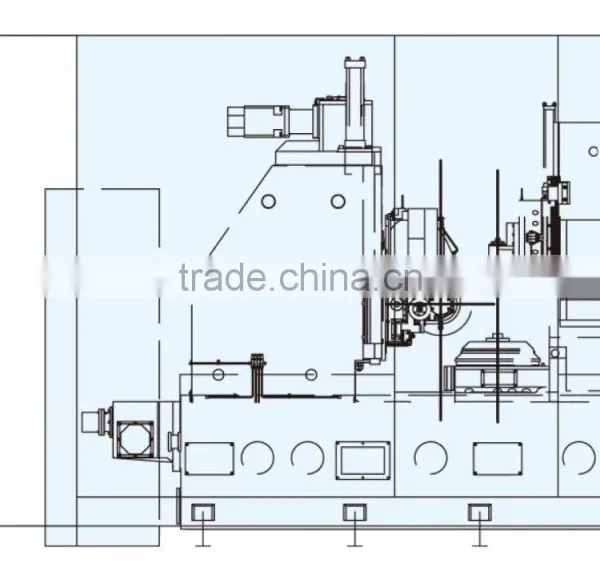

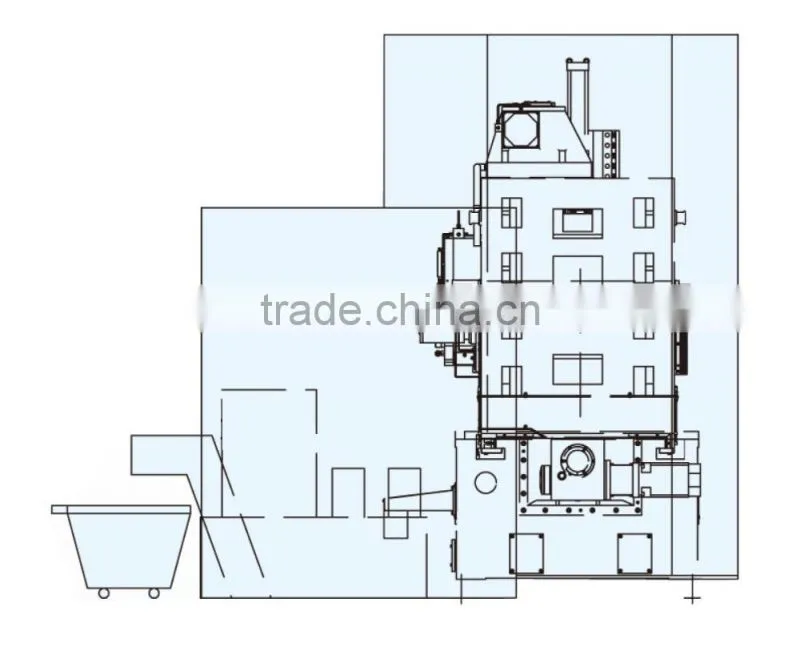

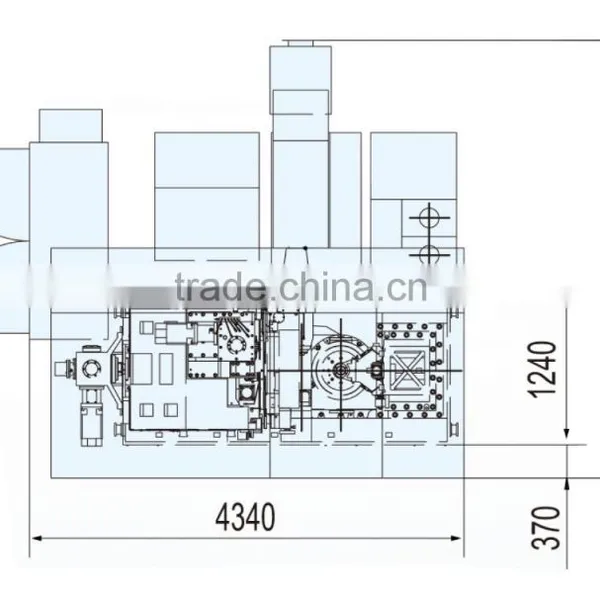

Components Plan
