Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > CNC Vertical Machining Center (VMC)

CNC Vertical Machining Center (VMC)

Name: CNC Vertical Machining Center (VMC)
Brand: TIMAC
SKU: 140796120
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

CNC Vertical Machining Center (VMC) thumbnail-1

CNC Vertical Machining Center (VMC) photo-1

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Brand Name TIMAC

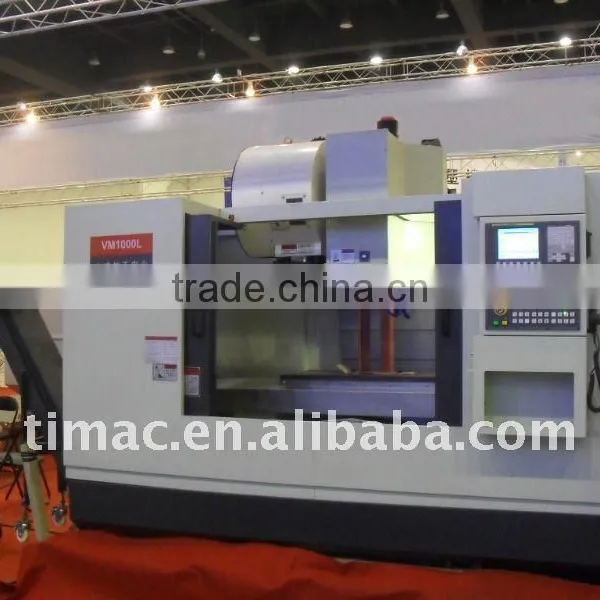

Model Number VM600L, VM800L, VM1000L

CNC vertical machining center (VMC)

Features:
1. Wide base desgn with x,y and Z three sets of precision linear roller ways for the machine
2. Ball screws are pre-stretched to eliminate back play.
3. Suitable for bath rough and finishing cut.

Specification	VM600L	VM800L	VM1000L
Travel
X travel	600mm	800 mm	1000 mm
Y travel	400 mm	500 mm
Z travel	480 mm	510 mm
Distance between spindle center and column guide way	484 mm	550 mm
Distance between spindle end and table	90~570 mm	155-665 mm
Table
Tablesize	750×400 mm	930×510 mm	1130×510 mm
Max. table load	450 Kg	600 Kg	600 Kg
T-slot (width×number×space)	18×3×110mm	18×3×160mm
Spindle
Taper bore of spindle	B-T40
Spindle speed	8000 rpm
Main motor power	7.5/11KW
Cutter removal from spindle	pneumatic
Feel
X,Y travel speed	0-20m/min
Z travel speed	0-20m/min
X,Y,Z Motor torque	12Nm
Repeataqbility(X/Y/Z)	±0.003mm
Tool chinging system
Tool number	Horizonal type: 16 Vertical type: 12	Horizonal type: 24 Vertical type: 20
Max. tool size(with adjacent tool)	Ø85 mm(Horizonal type) Ø110 mm(Vertical type)	Ø80 mm(Horizonal type) Ø90 mm(Vertical type)
Max. tool size(Without adjacent tool)	Ø130 mm(Horizonal type) Ø220mm(Vertical type)	Ø130 mm(Horizonal type) Ø150mm(Vertical type)
Max. tool length	350mm(Horizonal type) 250mm(Vertical type)	300mm(Horizonal type) 250mm(Vertical type)
Max. tool weight	8kg(Horizonal type) 8kg(Vertical type)	7kg(Horizonal type) 8kg(Vertical type)
Tool changing time(cut to cut)	2s(Horizonal type)
Other
Min. Input(X/Y/Z)	0.001 mm
Overall dimensilns(L×W×H)	3380×2060×2350mm	3950×2100×2600mm		3950×2100×2600mm
	(With automatic conveying)
Net weight	3900kg	5150kg		5480kg
