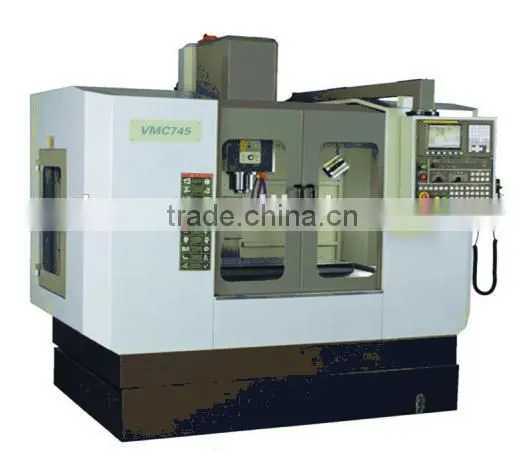

VERTICAL MACHINING CENTER

Zhengzhou Timeway Machine Tool Co., Ltd.
VERTICAL MACHINING CENTER thumbnail-1
VERTICAL MACHINING CENTER photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMEWAY
Model Number:
VMC745
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMEWAY
Model Number VMC745
Dimension(L*W*H) 2500x2000x2450mm
Weight 3500kg
After-sales Service Provided Engineers available to service machinery overseas

VERTICAL MACHINING CENTER



Features:

1. FANUC 0i mate MD CNC system;

2. High precision and speed spindle unit;

3. Umbrella type magazine;

4. Floating tools clamping system;

5. Separated electronic handwheel (MPG);

6. RS232 interface;

7. Oil and water separated design;

8. Interval auto-lubricating;

9. Full splash guard;

10. Tricolor alarm light;

11. 3-axis slide guide-ways.



Specification

Unit

VMC745

X-axis travel

mm

700

Y-axis travel

mm

450

Z-axis travel

mm

500

Spindle nose to table

mm

145-645

Spindle center to column guideway face

mm

460

Rapid feeding of X,Y axis

mm/min

12000

Rapid feeding of Z axis

mm/min

10000

Feeding speed

mm/min

1-5000

Table size

mm

700X450

Max. loading capacity of table

kg

600

T-slot No./width/distance of table



3/18/125

Spindle speed

r/min

8000

Main motor rated power

kw

5.5/7.5

Spindle nose taper



BT40

Magazine capacity

pcs

16

Magazine style



Umbrella

Max. diameter of tool

mm

φ80

Max. length of tool

mm

300

Max. weight of tool

kg

6

Pneumatic press

mpa

0.6

N.W

kg

3500

Overall dimension (LxWxH)

mm

2500x2000x2450
