1300x600mm CNC Vertical Machining Center/Machine centre(VMC1060B, VMC1060BL)
- 300 Set / Sets per Month
- China port
- T/T Credit Card
-
SMT panasonic CM202-DS
-
vmc650 CNC machining center|CNC machining center 650
-
vmc850 CNC machining center|Vertical Machining Center
-
vmc650 CNC machining center|CNC machining center 650
-
Plastic product processing flame-retardant ABS mold production Plastic shell Plastic accessories Injection molding mold design
-
Manufacturer abs blow mold processing PP PE Injection mold construction processing large electronic product mold injection
Product Details
| Condition: | New | Type: | Vertical | Brand Name: | TIMAC |
| Model Number: | VMC1060B, VMC1060BL | Voltage: | as require | Power(W): | 7.5/11kw |
| Dimension(L*W*H): | 3200*2480*2960mm | Weight: | 6600kg, 6800kg | Certification: | ISO, CE, SUV, SGS |
| Warranty: | 12monthes | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

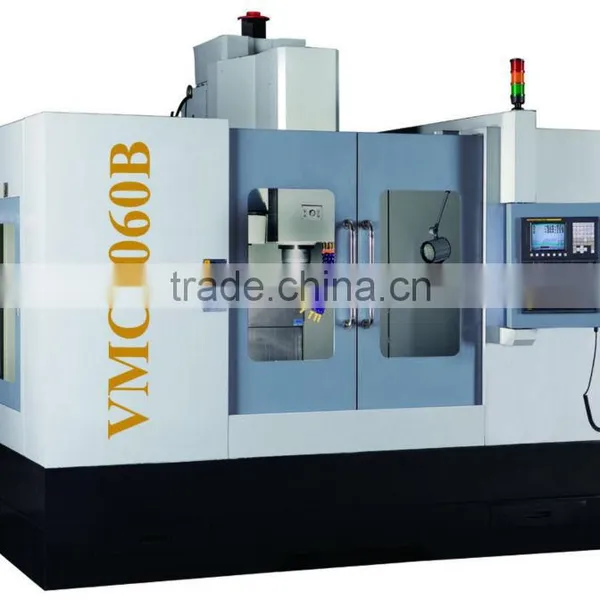

VMC1060B/VMC1060BL CNC VERTICAL MACHINING CENTER
Standard configuration:
* VMC1060B: 3-axis block guideway.
* VMC1060BL: 3-axis linear guideway.

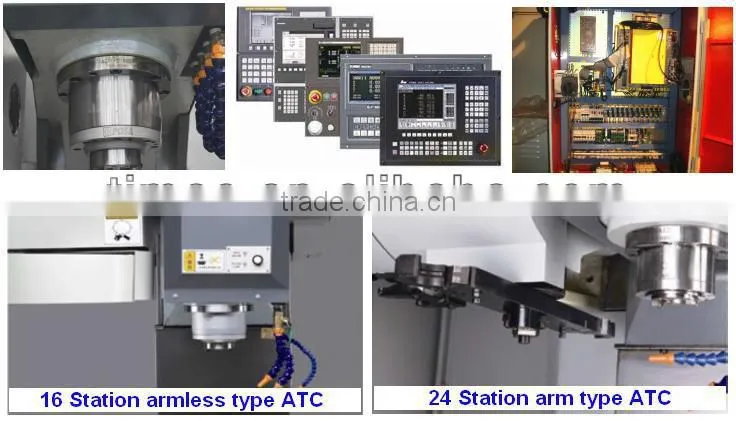

* FANUC 0i mate-MD CNC system.
* Taiwan high speed spindle unit(8000rpm).
* Taiwan BT40 Umbrella magazine of 16 tools capacity .
* Floating clamping and releasing system.
* Separated type electronic handwheel.
* Standard exterior RS232 interface.
* Designing with oil and water separated.
* Interval auto-lubricating.
* Full splash guard.
Optional configuration:
* FANUC 0i MD, Mitsubishi M64SM, Siemens SINUMERIK 828D, GSK983M CNC systems.
* Taiwan BT40 Round plate magazine of 24 tools capacity .
* The 4th-axis.
* Spindle with center of the water.
* Forceful cutting washing system.
* CF card
* Auto. chip removal device.
Specification | VMC1060B | VMC1060BL |
Table size(mm) | 1300*600 | 1300*600 |
Travel X-axis(mm) | 1000 | 1100 |
Travel Y-axis (mm) | 600 | 650 |
Travel Z-axis (mm) | 700 | 700 |
Spindle center to column guide way face(mm) | 630 | 630 |
Spindle nose to work table(mm) | 140-840 | 140-840 |
T-slot No./width/distance(mm) | 5-18*100 | 5-18*100 |
Spindle taper | BT40 | BT40 |
Max. diameter of tools | 80/130 | 80/130 |
Max. length of tools(mm) | 300 | 300 |
Rapid feeding of X/Y/Z(mm/min) | 15000/15000/12000 | 20000/20000/18000 |
Spindle max. speed (rpm) | 8000 | 8000 |
Main motor power (Kw) | 7.5/11 | 7.5/11 |
Max. loading of table(Kg) | 800 | 800 |
N/W(Kg) | 6600 | 6800 |
Overall dimension (mm) | 3200*2480*2960 | 3200*2480*2960 |

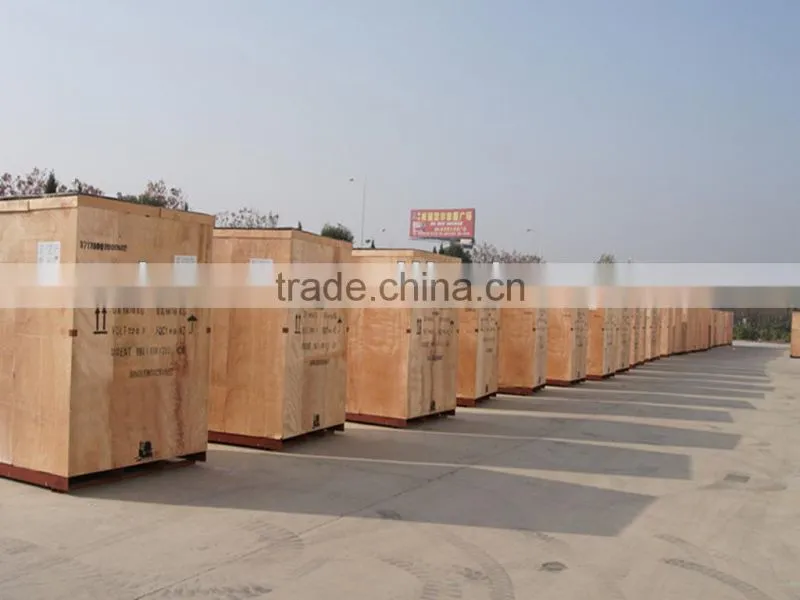

Packaging: Wooden case(can be fumigated).
Shipping: By sea or By train.
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
1. FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. T/T, L/C, Western Union payment terms is acceptable.
3. Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible)
4. Normal warranty period: 12monthes after delivery.
