Help CenterCNC Machining Center With Large Table Size 1500x720mm / Vertical Machining Center VMC1370B
Related Products
Specifications
Vertical Machining CenterTable size 1500x720mm
Table travel 1300x700x650mm
High spindle speed 800rpm
FANUC 0i mate MD

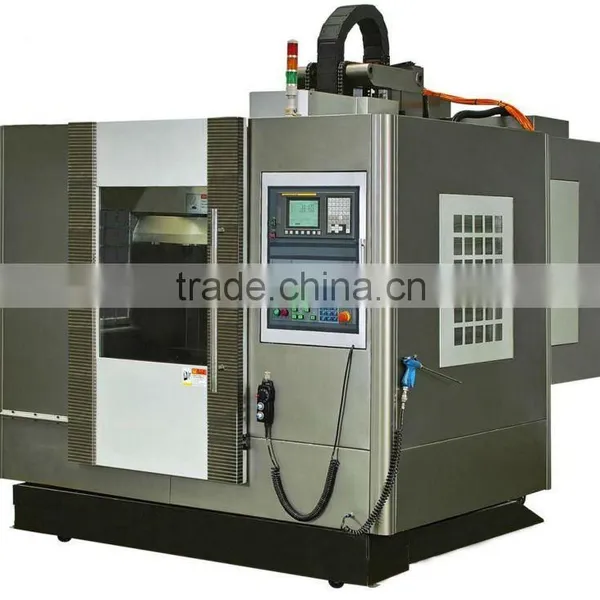

CNC Vertical Machining Center
Features:
1. The CNC vertical machining center adopts advanced international idea of design for modern structure machine tool and uses the latest software to analyze various technical data.
2. The reliable, high quality components and spare parts have been introduced to this nice machine tool. *No matter precise elements machining or moulds processing, the machining center will offer you excellent performance, high efficiency, higher accuracy and long-term stability.
3. It is uitable for machining parts of automobile, mold industry and so on.
4. Castings of this machining center are made by advanced Meehanite casting iron, such kind of material is very stable and can make sure there is no distortion after long-term using. Grade of casting is GC-275.
5. Mechanite cast iron GC40(GC275) is suitable for casting with thickness 10-15mm.
6. Optimized structure is adopted as column to support spindle box and its movement in Z axis direction.
7. Large capacity tool magazine with 20 tools, and advanced cam type tools changing system, random memory of magazine management, make tools changing faster and more stable.
8. Spindle of our VMC machine are made by top brand in Taiwan, the maximum spindle speed is 8000rpm, spindle taper is No. 50, which strengthen the cutting power.
9. Screws of X, Y, Z axes are provided by worldwide famous manufacturer, such as HIWIN, PMI in Taiwan, with accuracy P3 level.
10. Adopting three slide blocks for single axis will enhance load capacity around 30% , with this method the load capacity and the rigidity will be improved.
11. Nut block of screw and main machine body are built together for every axis, with this design, machine will get better rigidity and won’t lost accuracy when heavy cutting with acceleration movement impact.
| Specifications | Unit | VMC1370B |
| CNC Controller | FANUC 0i mate MD | |
| X/Y/Z axis travel | mm | 1300/700/650 |
| Spindle nose to table | mm | 150-800 |
| Spindle center to column | mm | 770 |
| Positioning Accuracy (mm) | mm | ±0.005 |
| Repeatability Accuracy (mm) | mm | ±0.003 |
| Spindle Speed (rpm) | m | 8000 |
| Spindle bore taper | NO.50 | |
| Table dimension | mm | 1500x720 |
| Max. load on table | kg | 1500 |
| T-slot | mm | 18TxP130x5 |
| Power (X/Y/Z) | kw | 3.5,3.5,3.5 |
| Rapid speed (X/Y/Z) | mm/min | 32000/48000 |
| Cutting speed (X/Y/Z) | mm/min | 12000 |
| Tool holder model | BT50 | |
| Tool capacity | pcs | 20 |
| Tool exchange time(T-T/C-C) | sec | 3.5/7 |
| Spindle power (30min/successive) | KW | 15/11 |
| Rated Power | KVA | 30 |
| Air power | Mpa/L/min | 0.6/200 |
| Machine height | mm | 3200 |
| Floor space | mm | 3600x2800 |
| Machine Weight | Kg | 12000 |
