Specifications
1. heavy cutting cnc machining center2. BT50 spindle
3. 1600x500mm table
4. 1000/500/580mm travel
5. 4 SLIDEWAYs for Y axis
VMC1050A VERTICAL MACHINE CENTER(Heavy cutting)
Standard configuration:
* 3-axis block guideway, and 4 slideways for Y axis.
* FANUC 0i mate-MD CNC system.
* BT50 spindle unit(3500rpm) from Taiwan for heavy cutting.

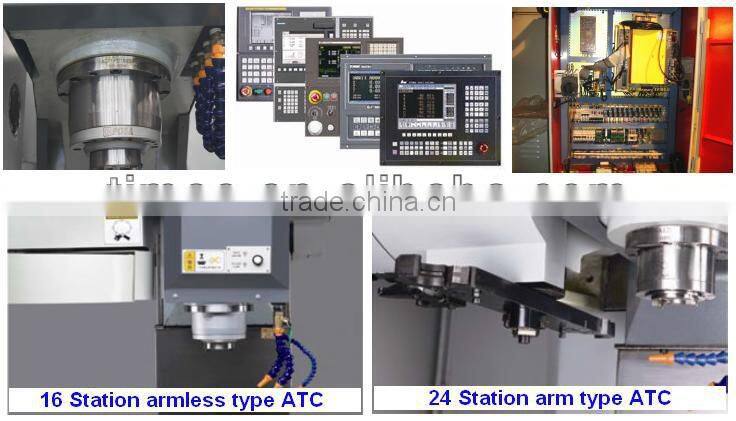

* BT50 Umbrella tool magazine (ATC) with 16 tools capacity from Taiwan.
* Balance system.
* Separated type electronic handwheel(MPG).
* Standard exterior RS232 interface.
* Designing with oil and water separated.
* Interval auto-lubricating.
* Electric cabinet cooling system.
* NSK screw bearing.
* Alarm lamp.
* Full splash guard.
Optional configuration:
* FANUC 0i MD, Mitsubishi M64SM, Siemens SINUMERIK 828D, GSK983M CNC systems.
* BT40 spindle unit (8000rpm) from Taiwan.
* Round plate tool magazine (ATC) with 24 tools capacity from Taiwan.
* The 4th-axis.
* Spindle with center of the water.
* Forceful cutting washing system.
* CF card.
* Auto. chip removal device.
| Specification | Unit | VMC1050A |
| X-axis travel | mm | 1000 |
| Y- axis travel | mm | 500 |
| Z- axis travel | mm | 580 |
| Spindle nose to table | mm | 140-720 |
| Spindle center to column guide-way face | mm | 520 |
| High speed feeding of X,Y, axis | mm/min | 15000 |
| High speed feeding of Z axis | mm/min | 12000 |
| Feeding speed | mm/min | 1-5000 |
| Size of table | mm | 1600x500 |
| Max. loading capacity of table | kg | 900 |
| T-slot NO./width /distance of table | 5/18/80 | |
| Spindle max. speed | r/min | 80-3500 |
| Main motor rated power | kw | 11/15 |
| Spindle nose taper | BT50 | |
| Magazine capacity | pc | 16/20(optional) |
| Max. diameter of tools | mm | 152 /200 |
| Max. length of tools | mm | 300 |
| Max. weight of tools | kg | 15 |
| X/Y/Z to ac servo motor | nm | 11 |
| N.W | kg | 6900 |
| Overall dimension | mm | 3500x2450x2400 |
Packaging: Wooden case(can be fumigated).
Shipping: By sea or By train.
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
1. FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. T/T, L/C, Western Union payment terms is acceptable.
3. Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible)
4. Normal warranty period: 12monthes after delivery.
