Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > CNC Vertical Machining Center (VMC)

CNC Vertical Machining Center (VMC)

Name: CNC Vertical Machining Center (VMC)
Brand: TIMAC
SKU: 140796076
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

CNC Vertical Machining Center (VMC) thumbnail-1

CNC Vertical Machining Center (VMC) photo-1

US$ 10,000 - 30,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Brand Name TIMAC

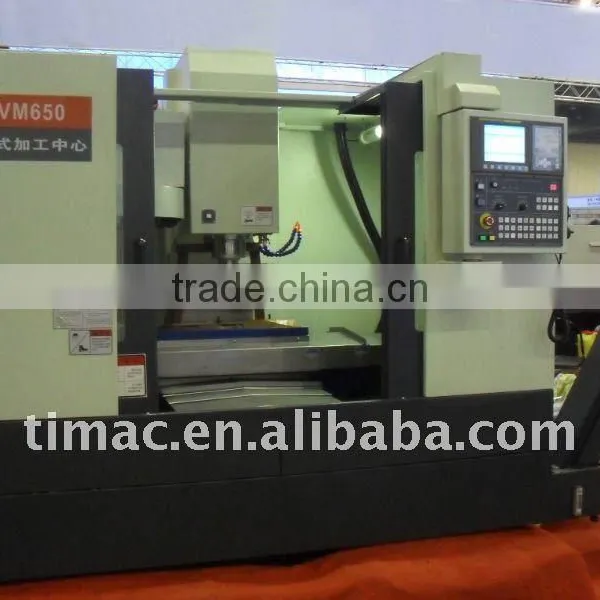

Model Number VM650, VM800, VM1100

CNC Vertical Machining Center (VMC)

Features:
1. With high speed, accuracy and rigidity as well as temperature stable increasing spindle system.
2. Super grade lubricationg grease for spindle bearings ensures its long service life.
3. Spindle hole is equipped with air-blowing devce for cleaning.
4. Rectangular guide ways of X,Y and Z axes with good resistance against vibration and impact are suitable for heavy load cutting, finish and rough machining.
5. Adequate workpiece cooling system.

Specification	VM650	VM800		VM1100
Travel
X travel	600mm	800 mm		1100 mm
Y travel	400 mm	450 mm		550 mm
Z travel	500 mm	550 mm		600 mm
Distance between spindle center and column guide way	450 mm	550 mm		610 mm
Distance between spindle end and table	138-648 mm	150~700 mm		150~750 mm
Table
Table size	800×400 mm	950×460 mm		1200×580 mm
Max. table load	500kg	600kg		800kg
T-slot(width×number×space)	18×3×135mm	18×3×150mm		18×5×120mm
Spindle
Taper bore of spindle	BT40
Spindle speed	60-8000rpm
Main motor power	7.5/11KW	7.5/11KW		11/15KW
Cutter removal from spindle	Pneumatic	Pneumatic		Pneumatic
Feel
X,Y travel speed	0-12m/min	0-16m/min		0-20m/min
Z travel speed	0-12m/min	0-16m/min		0-20m/min
X,Y,Z Motor torque	12Nm	12Nm		22Nm
Repeatability(X/Y/Z)	±0.003 mm	±0.003 mm		±0.003 mm

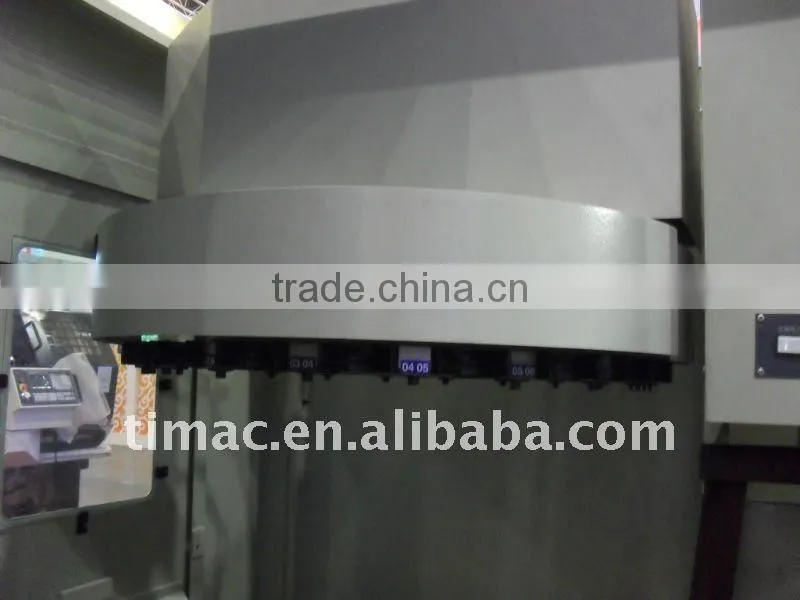

Tool changing system
Tool number	vertical type: 16 horizontal type: 20		vertical type: 24 horizontal type: 20
Max. tool size (With adjacent tool)	Ø85 mm(vertical type) Ø90 mm(horizontal type)		Ø80 mm(vertical type) Ø90 mm(horizontal type)
Max. tool size (Without adjacent tool)	Ø130 mm(vertical type) Ø150mm(horizontal type)		Ø130 mm(vertical type) Ø150mm(horizontal type)
Max. tool length	350mm(vertical type) 250mm(horizontal type)		300mm(vertical type) 250mm(horizontal type)
Max. tool weight	8kg(vertical type) 8kg(horizontal type)		7kg(vertical type) 8kg(horizontal type)
Tool changing time(cut to cut)	2s(vertical type)
Other
Min. Input(X/Y/Z)	0.001 mm
Overall dimensions(L×W×H)	2280×1880×2100 m	2400×2110×2800 mm		2900×2350×2900 m
Net weight	4500kg	5000kg		7000kg
