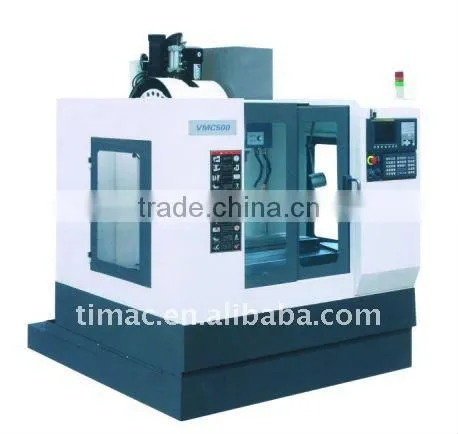

Help CenterVertical Machining Center/CNC Vertical Machining Center VMC500
Related Products
-
CNC Vertical Machining Center (VMC)US$ 10,000 - 30,000MOQ: 1 Set -
5 Axis CNC Vertical Machining Center(Five Axes VMC)NegotiableMOQ: 1 Set
-
VMC846 CNC Vertical Machining CenterUS$ 20,000 - 39,990MOQ: 1 Set
-
VMC700 CNC Vertical Machining CenterNegotiableMOQ: 1 Set
-
Full Closed CNC Milling Machine / VMC-1354BUS$ 5,000 - 20,000MOQ: 1 Set
Specifications
1. CNC vertical machining center;2. FANUC 0i mate-MD CNC system;
3. Umbrella type magazine.
Specification |
Unit |
VMC500 |
X-axis travel |
mm |
500 |
Y-axis travel |
mm |
320 |
Z-axis travel |
mm |
500 |
Spindle nose to table |
mm |
125-520 |
Spindle center to column guideway face |
mm |
360 |
Rapid feeding of X,Yaxis |
mm/min |
24000 |
Rapid feeding of Z axis |
mm/min |
1800 |
Feeding speed |
mm/min |
1-5000 |
Table size |
mm |
800x320 |
Max. loading capacity of table |
kg |
300 |
T-slot NO./width distance of table |
|
3/14/100 |
Spindle max.speed |
r/min |
10000 |
Main motor rated power |
kw |
3.7/5.5 |
Spindle nose taper |
|
BT30 |
Magazine capacity |
pcs |
10 |
Magazine style |
|
Umbrella |
Max. diameter of tool |
mm |
60 |
Max. length of tool |
mm |
200 |
Max. weight of tool |
kg |
5 |
Pneumatic press |
mpa |
0.6 |
N.W |
kg |
2600 |
Overall dimension(LxWxH) |
mm |
1600x1840x2110 |
Standard accessories:
FANUC 0i mate-MD CNC system.
High precision and speed spindle unit
Umbrella type magazine
Floating tools clamping system
Separated type electronic hand wheel(MPG)
RS232 interface
Oil and water separated design
Interval auto-lubricating
Full splash guard
Tricolor alarm light
3-axis liner guide-ways
