Specifications
1. CNC Vertical machining center2. 3axes wide box ways
3. High speed spindle 8000rpm
4. 16 tools Taiwan tool magazine
Vertical Machining Center

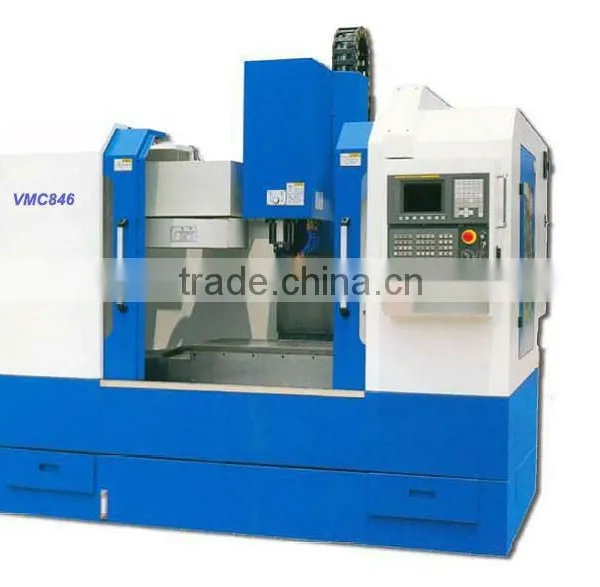

VMC846: Table size-800x460mm, Travel-800x460x500mm;
VMC1050 : Table size-1100x510mm, Travel-1000x510x510mm;
Features:
1. The machine adopts Meehanite cast iron, and the base use wide rectangular guideways, which have high rigidity.
2. X, Y, Z axes are all wide box ways, which through the medium frequency quenching and precision grinding, ensure the machine's rigidity.
3. Taiwan made spindle unit (8000rpm) with high speed, high precision.
4. Taiwan made 16 tools armless tool magazine.
5. Cooling system adopts large fluid and high pressure coolant pump, to make sure the enough cooling under the high speed processing condition;
6. The machine adopts full close type protection guard; make the clean circumstance and safety of the operator.
Specification |
Unit |
VMC846 |
VMC1050 |
Table tavle(X,Y,Z) |
mm |
800x460x500 |
1000x510x510 |
Table size |
mm |
800x460 |
1100x510 |
Number/Width/Distance of T-slot |
mm |
3-18-150 |
5-18-100 |
Max. load of table |
kg |
500 |
800 |
Distance from spindle nose to table surface |
mm |
150-650 |
120-630 |
Distance from spindle axis to column guideway |
mm |
560 |
600 |
Rapid feed speed X/Y/Z |
mm/min |
18000 |
12000 |
Feed speed |
mm/min |
2-4000 |
2.5-4000 |
Taper of spindle |
BT40 |
BT40 |
|
Spindle speed range |
rpm |
40-8000 |
60-8000 |
Spindle motor power |
kw |
5.5/7.5 |
7.5/11 |
Tool magazine capacity |
pc |
16 |
16 |
Max. weight of tool |
kg |
8 |
8 |
Max. dimension of tool |
mm |
130x300 |
130x300 |
Positioning accuracy |
mm |
±0.015 |
±0.015 |
Repeat positioning accuracy |
mm |
±0.0075 |
±0.0075 |
Min. time of tool exchange |
sec |
3 |
3 |
Overall dimension |
mm |
2450x2200x2300 |
2900x2200x2620 |
Machine weight |
kg |
4360 |
5370 |
Standard items:
FANUC 0i mate MD controller; FANUC servo main motor; FANUC servo feed motors on three axes; Taiwan 16 stations armless type tool magazine; RS232 I/O interface; Movable electronic handwheel (MPG); Spindle blowing chips system; Work light; Tricolor alarm light;
Optional items:
The 4th axis; Taiwan 24 stations arm type tool magazine; Automatic chip conveyor.
