5 Axis CNC Vertical Machining Center(Five Axes VMC)

Name: 5 Axis CNC Vertical Machining Center(Five Axes VMC)
Brand: TIMAC
SKU: 140796078
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Brand Name TIMAC

Model Number VMC630/5axes

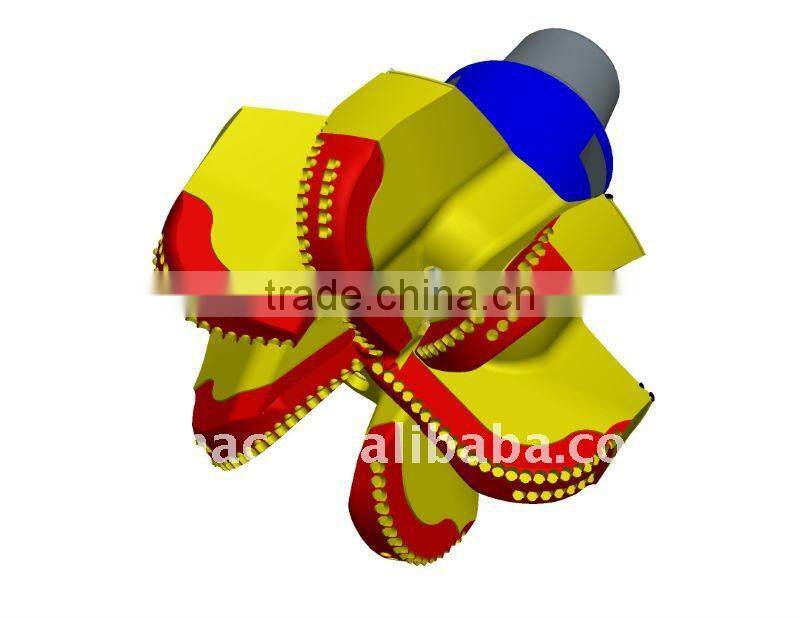

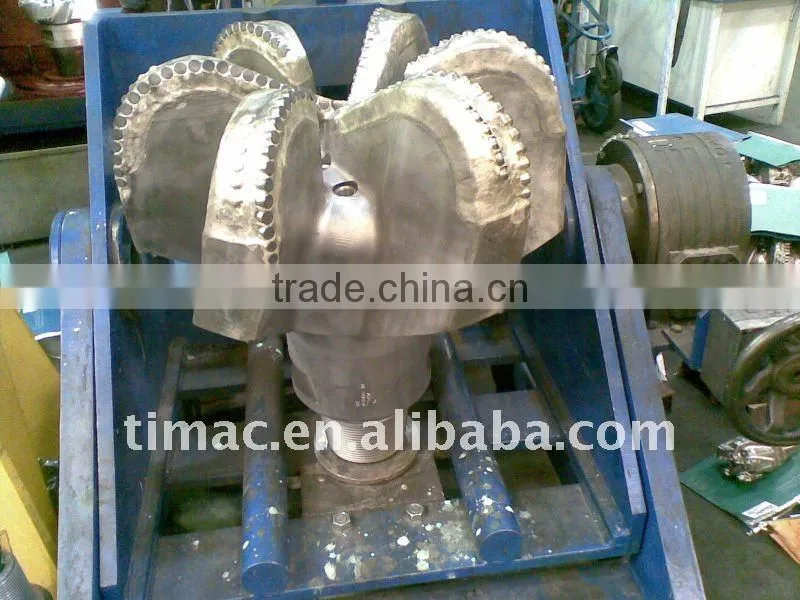

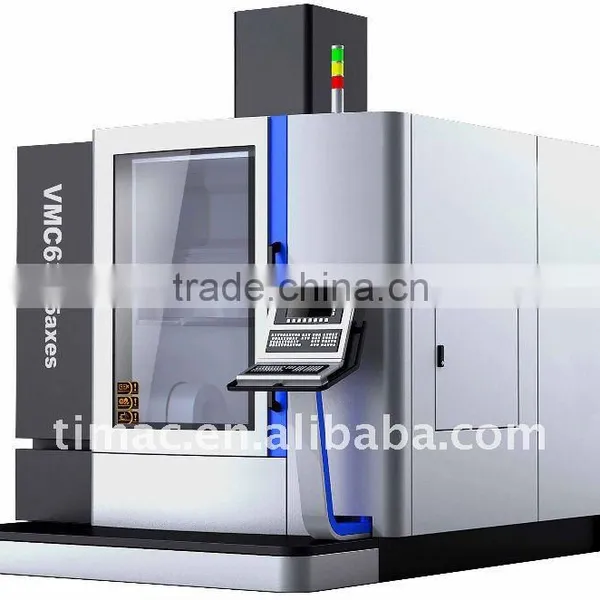

5 axis CNC Vertical Machining Center(Five axes VMC)

Main specification and technical parameters:

Specification		Unit	VMC630/5axes
Travel	X axis travel	mm	800
	Y axis travel	mm	850
	Z axis travel	mm	560
	X axis swing angle	degree	100~110
	C axis swing angle	degree	360
	Distance from spindle to table	mm	250~810
Worktable	Worktable size	mm	630
Worktable	Max. load of worktable	kg	600
Spindle	Spindle taper		HSKA63
	Max. speed of spindle	r/min	20~18000
	Spindle rated torque	N.m	78
	Spindle rated speed	r/min	4300
Feeding speed	X, Y axis rapid move	m/min	40
	Y axis rapid move	m/min	32
	X, Y,Z Feeding speed	mm/min	3~20000
	A axis Max. rapid swing speed	r/min	30
	C axis Max. rapid swing speed	r/min	60
Auto-tool changer system	Magazine form		chaim
	Tool NO.	pcs	32
	Tool change time
	Max. length of tool	mm	300
	Max. diameter of tool	mm	76/127
	Max. weight of tool	kg	6.5
Motor	Spindle motor	kw	35
	X/Y1/Y2/Z motor	kw	5.37x4
	A axis Torque motor	kw	27.1x2
	C axis torque motor	kw	22.7
	Coolant pump motor	kw	0.75
	Hydraulic pressure station motor	kw	5.5
	Water-coolant pump motor	kw	4.5
	Grease lubrication pump motor	kw	0.025
	Thin oil lubrication pump motor	kw	0.02
	rotating chip cleaner motor	kw	0.2x2
	Chain plate chip cleaner motor	kw	0.4
Accuracy	X/Y/Z axis positioning accuracy	mm	0.1
	X/Y/Z Repeatability	mm	0.005
	A/C axis positioning accuracy		8"
	A/C Repeatability		5"
Structure size	Height	mm	3780
	Dimension size(Lx W)	mm	4170x4200
	Weight	kg	16000
	Power demand	kw	170
Work environment	Temperature	degree	-5~45
	Relative humidity		0~90%
	Air pressure	Mpa	0.6
	Hydraulic system work pressure	Mpa	10
	Power		50Hz 380V

List of major equipment and parts suppliers:

Item	Specification	Supplier
CNC control system	HEIDENHAIN iTNC530	Germany HEIDENHAIN
Spindle	2SP1204-1HB05-2DF2	Germany SIEMENS
Servo unit		Germany HEIDENHAIN
Encode screw	GOP-5	Spain FAGOR
Angle coder	RCN729	Germany HEIDENHAIN
Ball screw		Japan THK
Ball screw bearing		Germany IBC screw bearing
Double ratory worktable bearing	SX 01 1868 VSP	Germany INA bearing
Double ratory worktable bearing	VRT395	Germany INA bearing
Lined slide rail		Switzerland MR
Lubrication System		China
Coupling		Germany KRT
Tool Magazine		Taiwan
Position switch		Germany
Protective guard		China
Hydraulic components		Japan
Drag chain		Germany
Electrical contactors		Germany SIEMENS
Constant temperature tank device		China
pneumatic system		Japan SMC
