GY- Series CNC Dynamic Beam Gantry Moving Frame-type
Boring and Milling Machining Center
GY-40A GY-45A GY-50A GY-55A GY-60A GY-65A
Machine Summary

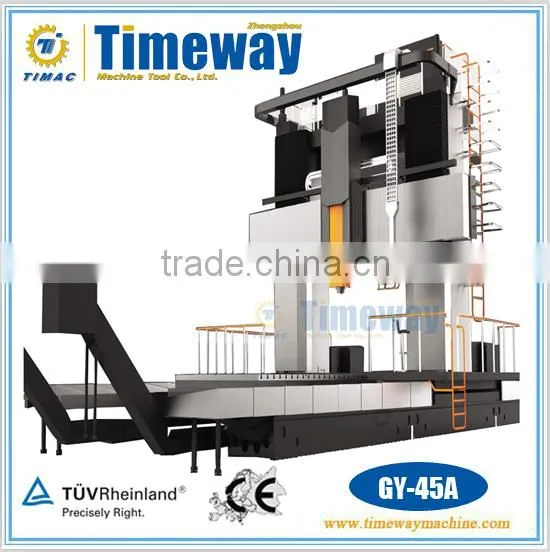

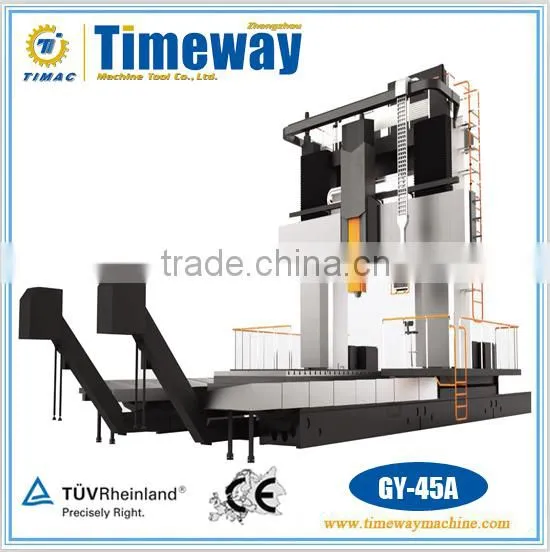

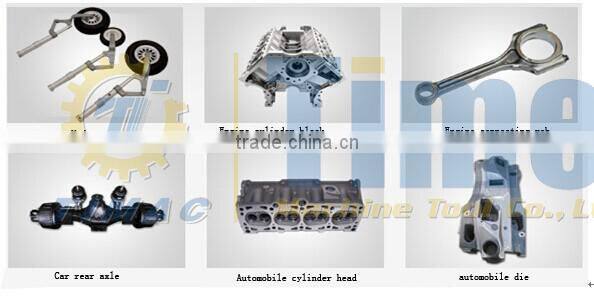

GY series machine tool consists of fixed table ,moving gantry frame and beam.Main structural parts are made of high strength cast iron and phenolic sand molding with the good shock absorption and thermal stability.The structure of the whole machine is characterized by the high rigidity and high reliability.It is suitable for the processing of heavy and extra-heavy basic parts in the industries of metallurgy, railway , heavy machine shipbuilding and automobile,especially the CNC processing of all kinds of plane ,curved surface,space curved surface and hole with large weight and long length.It is widely applied in the rough and fine processing of complicated parts of plate,box and chassis.
Structure and Performance
1.The machine tool can finish 4-axis linkage curved surface processing and rigid tapping .The addition of accessory milling head can meet the demand of five-face processing.It can add the accessory milling head according to customers' demand of processing and realize the five-face processing by one time of clamping accordingly.The spindle of boring and milling head is driven by AC spindle servo motor.The output terminal of spindle servo motor is directly connected to the automatic gear box with the top and lower gear.The exterior coder can realize the fixed-direction and rigid tapping of spindle.
2.Apply the computer-aided engineering (CAE) system to finish the optimized structure design and enhance the reliability of machine tool,and the finite element method(FEM) to take the scientific analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole mahcine structure.
3.Apply two-times aging treatment for the cast to guarantee the complete release of internal stress and the precision persistence of the machine tool.
4.The operator can take the right-and -left and vertical adjustment for the operation box during the processing as required.
5.A set of machine tool can be equipped with double gantry moving structure to process the same workpiece or different workpiece in the meantime ,with higher efficiency and smaller floor area.

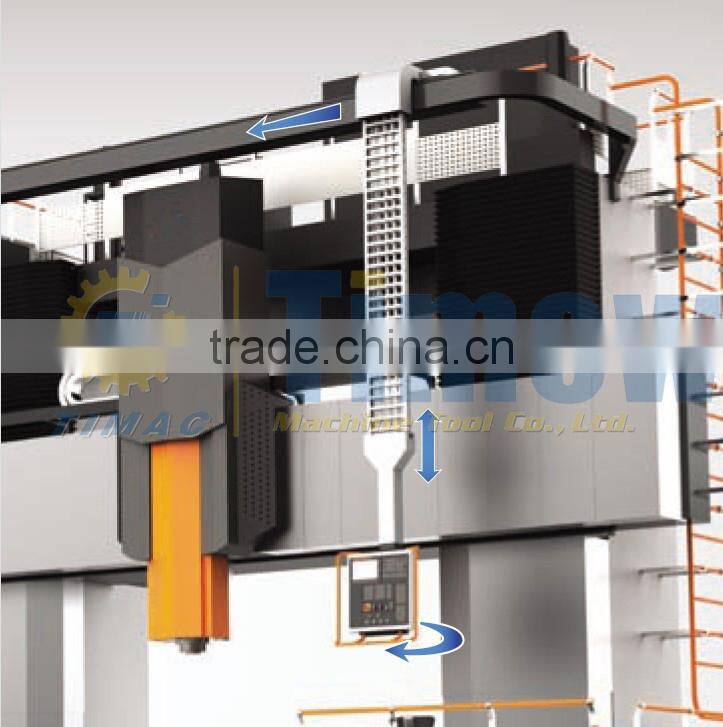

6.The hydraulic and electrical control system are located in the maintenance platform in the back of beam, convenient for the maintenance.
7.The guides of key parts,such as the bed guide and beam guide,all adopt the freely extensible cover to keep the guide form the external pollution and damage and prolong the service life.
8.Both sides are equipped with the chain-type chip conveyor,which can collect the scrap iron after the processing and transfer it to the cart in the front of the machine tool.
Guide Type
1.Y-axis,W-axis traverse slide ,transverse guide and slide wedge surface all adopt the filming treatment to enhance the precision and service life of Y and W-axis guide.
2.Z-axis when being equipped with the square ram,it adopts the rectangle sliding guide.
3.When being equipped with the whole-wrapped sliding block,it adopts the static-pressure guide.
4.X-axis adopts the constant flow static-pressure guide with the high bearing capacity,strong abilities of shock proof and shock absorption,good presicion stability and long service life.
5.The fixed displacement multi-stage pump with the open-type constant flow static-pressure guide can provide the hydraulic oil with the constant flow.

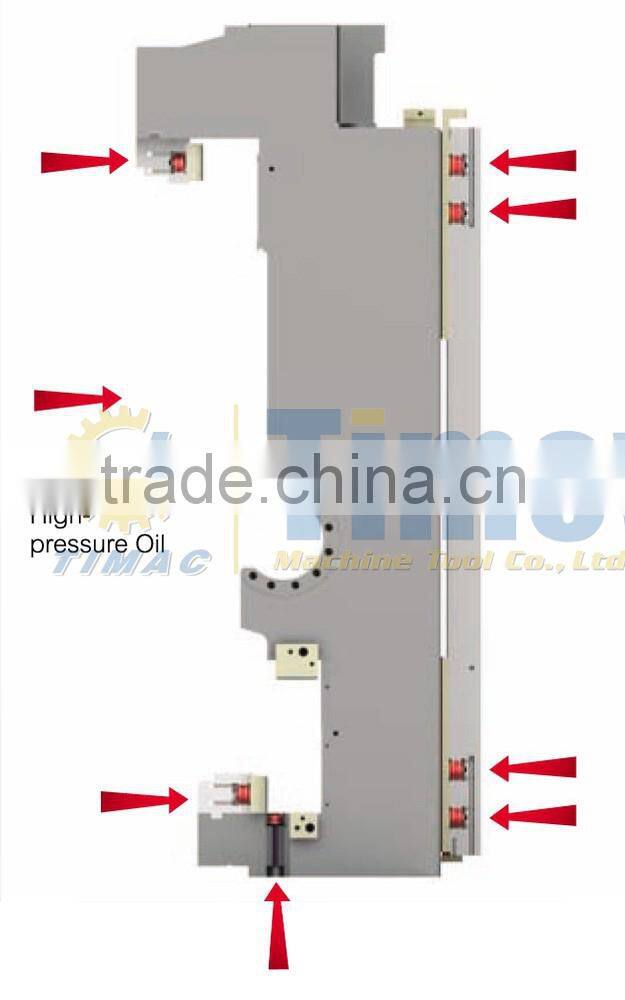

6.Hydraulic lock mechanism of beam and vertical ram guide.

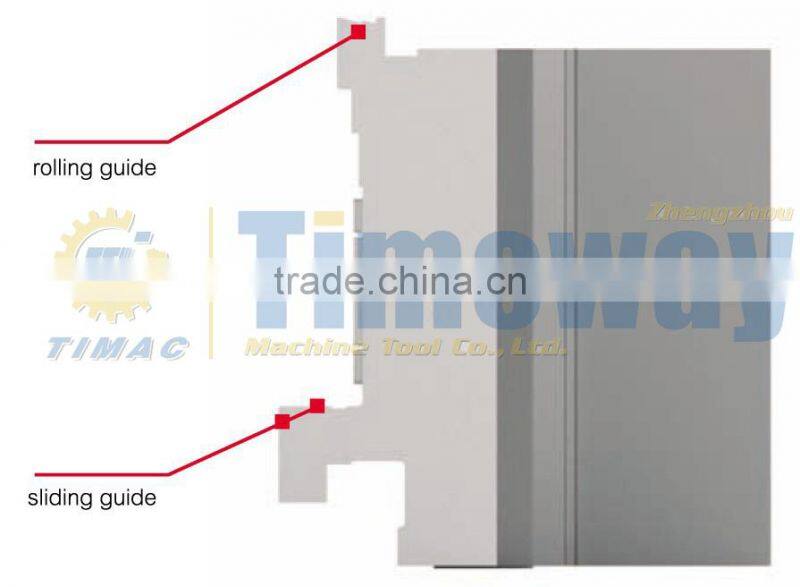

7.The beam adopts the composite structure of rectangle up-and-down stage solid guide and rolling guide to neutralize the disturbing moment caused by the offset of center of gravity of spindle box's boring and milling head and traverse slide .The upper guide and traverse slide adopt the multiple rolling mechanisms with the mechanical unloading structure,Y-axis traverse slide ,transverse guide and slide wedge all adopt the filming treatment to enhance the precision and service life.
Feeding Drive
1.Adopt AC servo motor with the direct connection to the precision planet reduction box to drive the ball screw rod.Equipped with the screw rod supporting device,it can avoid the distorted falling of screw rod affected by the gravity(G40/G45MA).

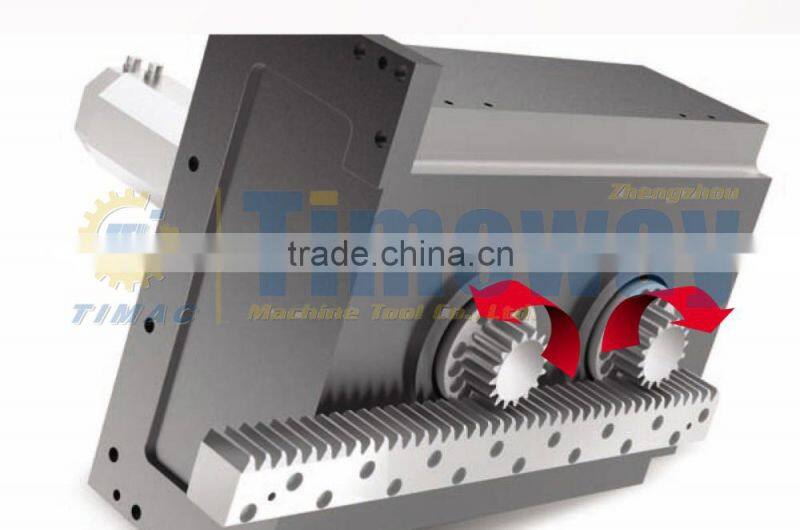

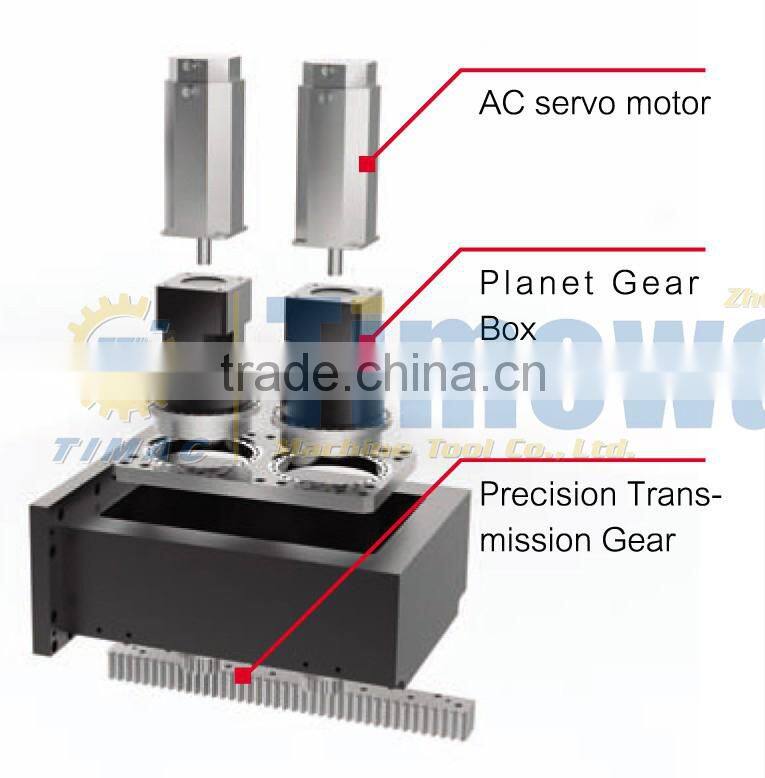

2.Adopt two sets of AC servo motor with the direct connection to the precision planet reduction box to drive the double gear-rack gear mechanism.Eliminate the backlash by the electric control and achieve the linear movement of transmission gear and rack toothing driven shaft(G50/G55/G60/G65MA).
3.W-axis is equipped with the reduction box and motor with the internal contracting brake to guarantee the stability of beam during the processing.

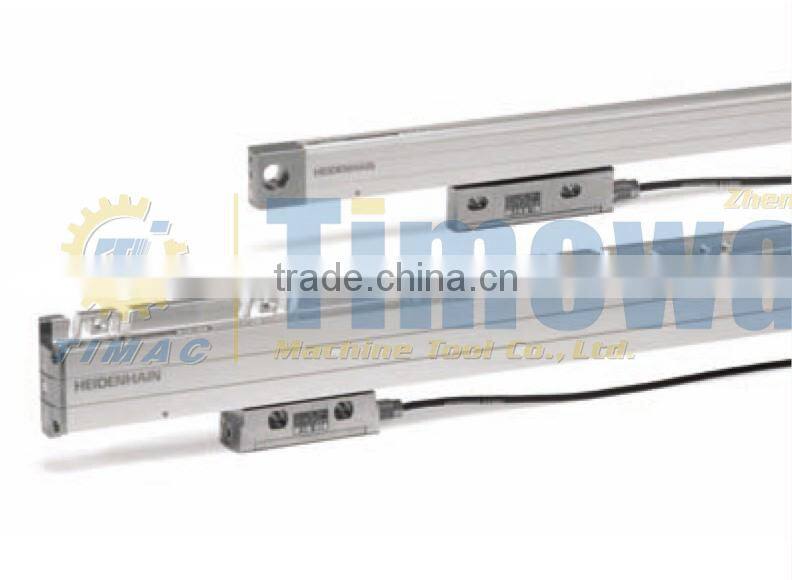

4.Three axes can all adopt the precision greating scale to realize the fully-enclosed position feed-back ,precision of 3-axis location and repeated location.
5.Double motor backlash elimination ,control the clamping status between the driving spindle and driven spindle by the numerical control sytem to guarantee the optimal torque coupling and automatically eliminate the backlash for X-axis left-to-right movement.
Ram and Spindle

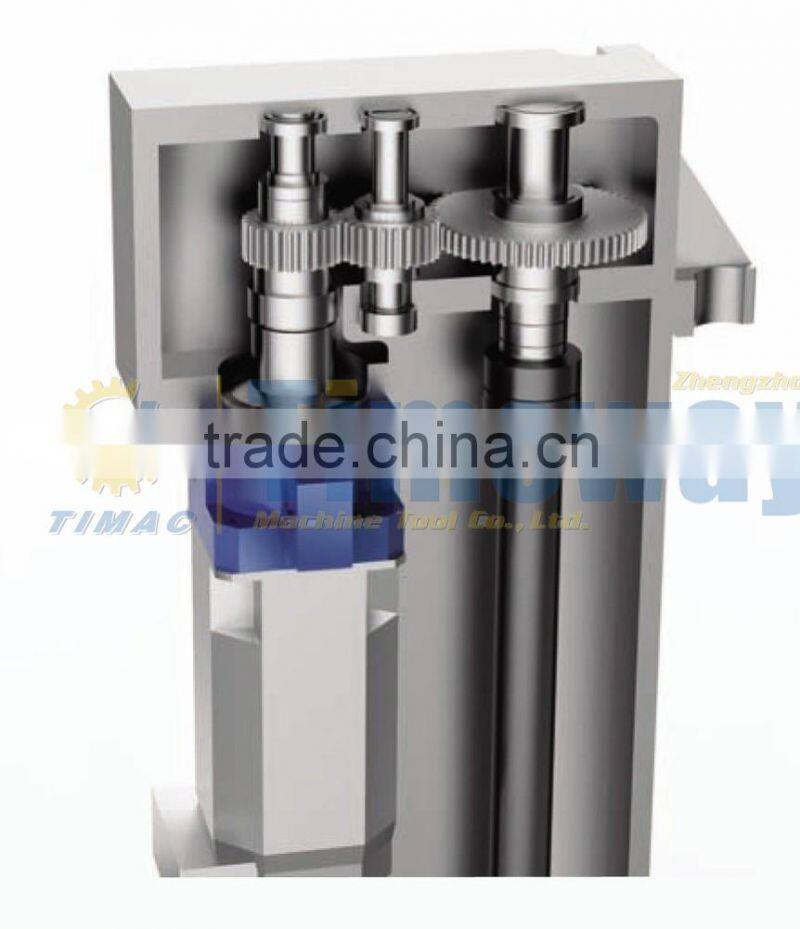

1.Spindle adopts the "gripping-type"tension which can automatically tighten up the parts.The mechanism of tool holder tension is the disc spring tension and hydraulic unlock.

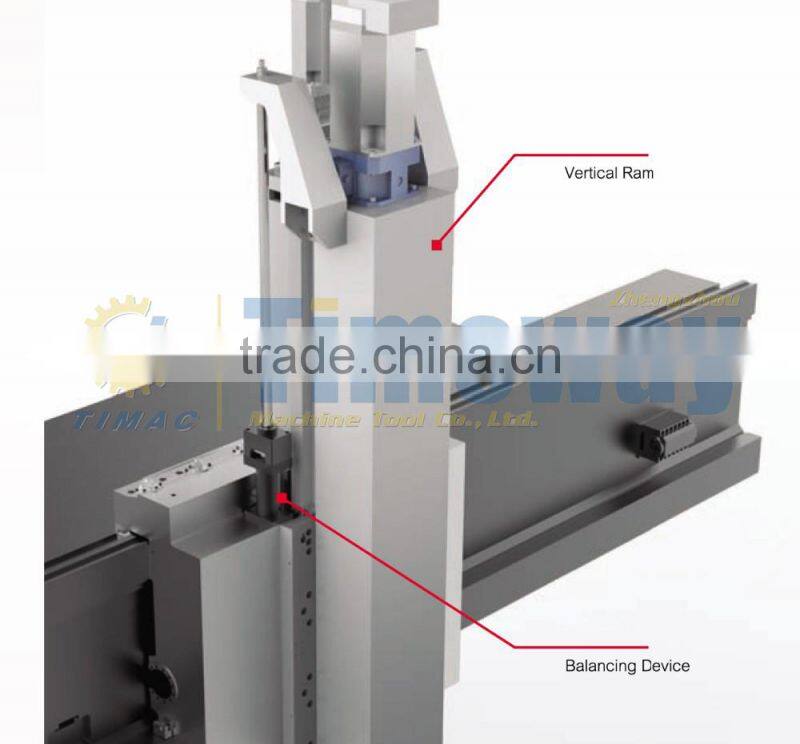

2.The ram and milling head spindle has the function of power protection.Such function can set the limit of spindle's maximal operating power.when the vertical ram extends out totally or has the different accessory milling heads,it can set the power limitation according to the extended ram or peak power output of related accessorymilling head,which can guarantee that the ram can extend out completely or the processing security when using the different accessory milling heads to avoid the overloading operations.
3.The vertical ram adopts the nodular graphite cast iron with the standard option of rectangular guide square ram.In case of requiring the large torque output,it can adopt the whole-wrapped square ram optionally.
4.The ram is equipped with the equalizer to reduce the loading of Z-axis screw and prolong its service life.
5.It adopts the constant temperature oil cooler to control the temperature rise of spindle and reduction box.
6.It can be equipped with the boring and milling spindle with the large torque output.Used configurations:high power spindle motor,rigid coupling ,large torque direct-connected spindle ,constant temperature and oil circulating cooling.two-stage planet gear reduction box (constant temperature and lubrication by oil circulation.

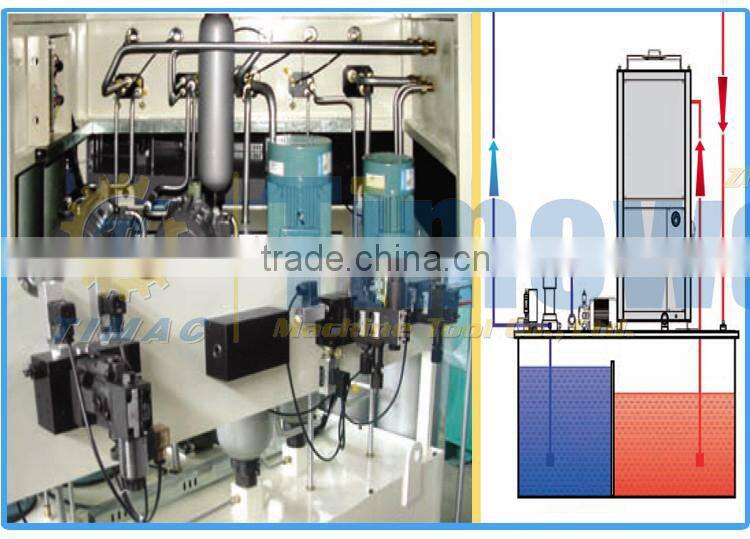

Hydraulic System
1.Hydraulic and lubrication system protection.This system has function of pressure relay protection,voltage-loss protection of lubrication duct,alarming protection of oil fluid blockage and oil temperature protection.
2.The static pressure tank is controlled by the constant temperature.Apply the centralized lubrication for the timed and measured lubrucation of each axis.
3.The hydraulic system controls the clamping and releasing of spindle ,the grabbing of accessory head,hydraulic balabce of Z-axis and clamping and releasing of guide.The hydraulic system possesses the functions of two-stage filtration and low-oil alarming.
Tool Magazine and Accessory Milling Head

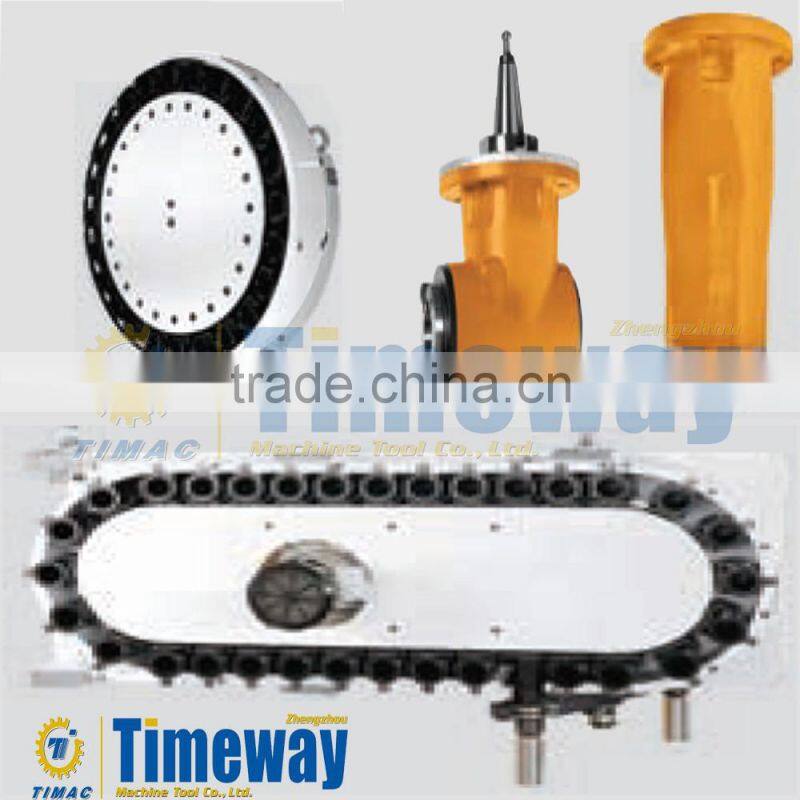

1.It can set all kinds of accessory milling heads grabbed manually or automatically as required.It can also be equipped with the accessory head magazine that changes the accessory milling heads automatically and thus enlarges the technique scope of machinetool processing.
2.Add the tool magazine in the left column of machine tool.Set tools in the magazine according to the required processing technique.Control the ram to the tool-change point by the program.The toolchange holder finishes the automatic tool-change.
Machining Samples
Standard configuration
SIEMENS 840DSL CNC system
Direct-connected spindle with two-stage reduction box
Planet reductiong box
Rectangle guide square ram
X-axis static pressure guide
Y,Z axis grating scale
X-axis double gear-rack electric backlash elimination
X,W axis double grating ruler synchronization
Static pressure oil tank
More than quantitative pump
Air condition
Hydraulic pressure station
Guide protection
Chain-type chip removal
Oil tank with oil cooler
Spindle oil cooler
Centralized automatic lubrication system
Air filtration purification device
Optional configuration
FANUC 31i-MB CNC system
Static-pressure guide whole-wrapped ram
Y-axis doeble gear-rack electric backlash elimination
Vertical tool magazine
Vertical and horizontal tool magazine
The attachment head library
Accessory milling heads grabbed automatically
Attachment head loss prevention system
Flat right-angle milling head
Universal milling head
Right-angle milling head
Extended milling head
Manual/semi-auto./fully-auto. 90 degree milling head
Technical Parameters
| Specifications | Units | Gy-40A | GY-45A | GY-50A | GY-55A | GY-60A | ||
| Table | Width | mm | 3000 | 3500 | 4000 | 4500 | 5000 | |
| Length | mm | 8000-50000 | ||||||
| Max.loading | t/m2 | 20 | ||||||
| Travel | X-axis travel | mm | 8500-50500 | |||||
| Y-axis travel | mm | 4500 | 5000 | 5500 | 6000 | 6500 | ||
| Z-axis travel | mm | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 | ||
| W-axis travel | mm | 2400-4000 | ||||||
| Max.width of passing work-piece | mm | 4000 | 4500 | 5000 | 5500 | 6000 | ||
| Spindle | Distance from spindle end to table surface | mm | According to the customer request design | |||||
| Spindle specification | BT50/BT60 | |||||||
| Spindle transmission | Two-stage gear reduction box | |||||||
| Spindle output power | kw | 28/38,41/56,55/78,60/84,71/114,100/140 | ||||||
| Spindle torque | Nm | 1470-11320 | ||||||
| Spindle speed | rpm | 10-1500/10-3000 | ||||||
| Feeding speed | Feeding speed X/Y/Z | mm/min | 5-8000 | |||||
| Rapid traverse speed X/Y/Z | m/min | 10 | ||||||
| Rapid traverse speed W | m/min | 2 | ||||||
| Feeding speed W-axis | m/min | 2 | ||||||
| Precision standard | VDI/DGQ3441 | |||||||
| Others | Vertical ram section | mm | 500*500/600*600 | |||||
| CNC system | SIEMENS 840DSL or other CNC system | |||||||
