Double Column CNC Gantry Machining Centre

Name: Double Column CNC Gantry Machining Centre
Brand: TIMAC
SKU: 140796028
Availability: InStock

Double Column CNC Gantry Machining Centre thumbnail-1

Double Column CNC Gantry Machining Centre photo-1

US$ 50,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Gantry

Brand Name:

TIMAC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Gantry

Brand Name TIMAC

Model Number GMC1220

Voltage 380V/50Hz

Power(W) 18.5kw(Spindle)

Dimension(L*W*H) 5800x4000x4000mm

Weight 20000kgs

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

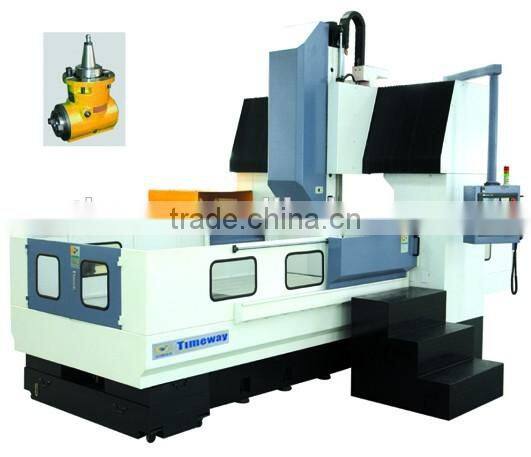

Double Column Gantry Frame Machining Center

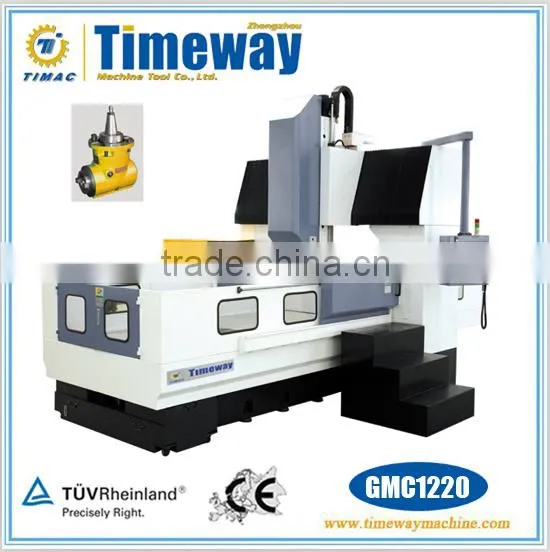

GMC1220 GMC1220A GMC1840 GMC1860 GMC2330 GMC2350

Main Outlook

Product Description

Performance and Feature

The machine is widely suitable for general machinery, automobilem, aerospace, printing and packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process.
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term.
X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; high-precision, high-speed, strong cutting and high rigid.
Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool.
For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.

Standard Accessories

FANUC 0i MD control system
Round plate type magazine
The highest spindle speed 3000rpm(gear transmission, hydraulic two shifts, suitable for low speed heavy cutting)
Hydraulic driving Z-axis automatic balancing system
The base protection

Optional Accessories

Chain tool magazine with 30 tools
Chain tool magazine with 42 tools
Double helix chip conveyor and chain chip conveyor
Semi-protection guard

Technical Parameter

Fixed Beam Gantry Frame-type Series

Specification	Unit	GMC1220	GMC1430
Worktable
Worktable size	mm	1250x2000	1400x3000
T-slot (Number/Width/Distance)	mm	7-22-180	7-22-180
Max. weight of the workpiece	kg	5000	7500
Travel
X-axis travel	mm	2200	3100
Y-axis travel	mm	1600	2000
Z-axis travel	mm	700	700
Distance from spindle end to worktable surface	mm	200-900	370-1070
Gantry width	mm	1550	1750
Spindle
Spindle speed	rpm	50-3000(100-6000)	50-750/750-3000(hydraulic 2-shifts)
Spindle bore taper	-	BT50	BT50
Spindle motor power	kw	18.5	15/18
Feed
X/Y-axis rapid feeding speed	m/min	15	15
Z-axis rapid feeding speed	m/min	10	12
Feeding speed	mm/min	1-4000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.022/0.022/0.022	0.022/0.022/0.022
X/Y/Z-axis repositioning accuracy	mm	0.012/0.012/0.012	0.012/0.012/0.012
Tool Magazine
Capacity	T	16	24
Max. diameter/length of tool	mm	Φ130/300	Φ127/300
Max. weight of tool	kg	15	15
Others
Net weight	kg	20000	25000
Overall dimension	mm	5800x4000x4000	8000x4000x4000

Fixed Beam Gantry Frame-type Series

Specification	Unit	GMC1840	GMC1860
Worktable
Worktable size	mm	1800x4000	1800x6000
T-slot (Number/Width/Distance)	mm	9-22-180	9-22-180
Max. weight of the workpiece	kg	10000	12000
Travel
X-axis travel	mm	4000	6000
Y-axis travel	mm	2200	2200
Z-axis travel	mm	1000	1000
Distance from spindle end to worktable surface	mm	250-1250	250-1250
Gantry width	mm	2200	2200
Spindle
Spindle speed	rpm	50-3000(100-6000)	50-3000(100-6000)
Spindle bore taper	-	BT50	BT50
Spindle motor power	kw	30	30
Feed
X/Y-axis rapid feeding speed	m/min	8/10	8/10
Z-axis rapid feeding speed	m/min	10	10
Feeding speed	mm/min	1-4000	1-4000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.025/0.022/0.022	0.03/0.025/0.025
X/Y/Z-axis repositioning accuracy	mm	0.015/0.012/0.012	0.015/0.012/0.012
Tool Magazine
Capacity	T	24	24
Max. diameter/length of tool	mm	Φ127/300	Φ127/300
Max. weight of tool	kg	15	15
Others
Net weight	kg	70000	80000
Overall dimension	mm	10715x4838x4749	15773x4838x4749

Fixed Beam Gantry Moving Series

Specification	Unit	GMC2330	GMC2350
Worktable
Worktable size	mm	2300x3000	2300x5000
T-slot(Number/Width/Distance)	mm	11-28-200	11-28-200
Max. weight of the workpiece	kg	8000	15000
Travel
X-axis travel	mm	3000	5000
Y-axis travel	mm	2700	2700
Z-axis travel	mm	1000	1000
Distance from spindle end to worktable surface	mm	260-1260	260-1260
Gantry width	mm	2700	2700
Spindle
Spindle speed	rpm	50-3000(100-6000)	50-3000(100-6000)
Spindle bore taper	-	BT50	BT50
Spindle motor power	kw	30	30
Feed
X/Y-axis rapid feeding speed	m/min	8/10	5/10
Z-axis rapid feeding speed	m/min	10	10
Feeding speed	mm/min	1-4000	1-4000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.025/0.022/0.022	0.03/0.025/0.025
X/Y/Z-axis repositioning accuracy	mm	0.015/0.012/0.012	0.015/0.012/0.012
Tool Magazine
Capacity	T	24	24
Max. diameter/length of tool	mm	Φ127/300	Φ127/300
Max. weight of tool	kg	15	15
Others
Net weight	kg	68000	70000
Overall dimension	mm	9132x5198x4610	13032x5198x4610
