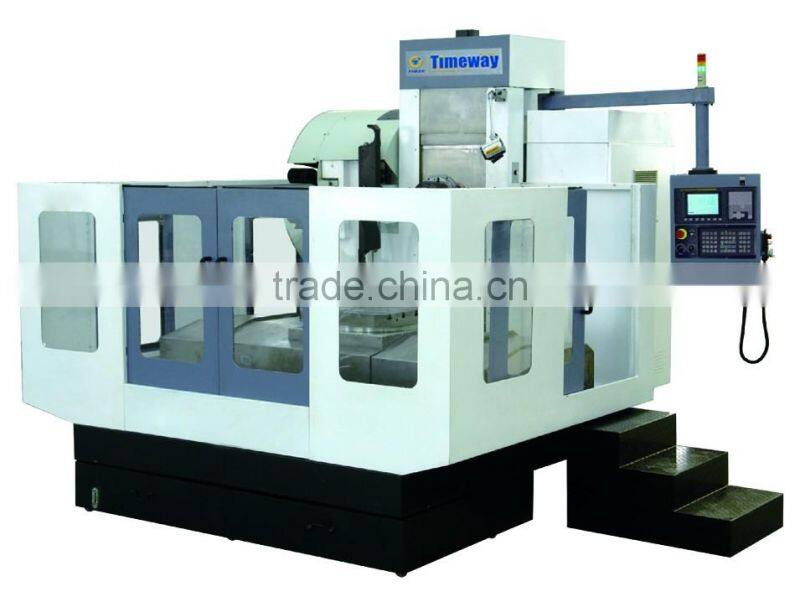

Four-axis CNC Horizontal Machining Center (Horizontal Milling Machine Centre)

Name: Four-axis CNC Horizontal Machining Center (Horizontal Milling Machine Centre)
Brand: TIMAC
SKU: 140796024
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

Brand Name TIMAC

Model Number HMC630

Voltage 380V/50Hz

Power(W) 11/15kw(Spindle)

Dimension(L*W*H) 3200x3500x2700mm

Weight 9500kgs

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Four-axes CNC Horizontal Machining Centre

HMC500 HMC500L HMC630 HMC800

Main Outlook

Product Description

Feature:

Fixed beam type structure.
Round plate type ATC with 24 tools capacity.
NC rotary working table. Mini dividing: 1 degree, hydraulic clamp, large clamping force, suit for heavy-duty process.
Such machining processes as boring, milling, drilling, enlarging, reaming and tapping are realized, with fixture of box, shell, cam, mold type and other complicated workpieces one time.
Balance equipment for pneumatic and hydraulic up-down exchange.
HMC630: Z-axis with four line hard guideway coated, precision scraped, X-axis extra-heavy-duty linear guideway, Y-axis hard guideway.
HMC500/HMC800: 3-axis hard guideway.
HMC500L: 3-axis linear guideway

Standard Accessories:

Optional Accessories

Technical Parameter

Specification	Unit	HMC800	HMC630	HMC500L	HMC500
Travel
X-axis travel	mm	1200	800	700	700
Y-axis travel	mm	900	650	650	650
Z-axis travel	mm	1100	740	600	600
Spindle nose to worktable center	mm	160-1260	260-1000	170-770	170-770
Spindle center to wokrtable surface	mm	0-900	0-650	50-700	50-700
Spindle
Spindle speed	rpm	4000(2shifts)	3200	6000	6000
Spindle taper	-	BT50	BT50	BT50	BT50
Spindle motor power	kw	15/18.5	11/15	11/15	11/15
Worktable
Worktable size	mm	800x800	630x630	500x500	500x500
Max. weight of workpiece	kg	2500	1000	800	800
T-slot(Number/width/distance)	mm	5-22-160	5-22-125	5-14-100	5-14-100
Dividing accuracy	"	10	10	10	10
Repeat dividing accuracy	"	4	4	4	4
Tool Magazine
Capacity	T	24	24	24	24
Max. diameter of tools	mm	Φ127/Φ178	Φ127/Φ178	Φ127/Φ178	Φ127/Φ178
Max. length of tools	mm	300	300	300	300
Max. weight of tools	kg	15	15	15	15
Feed
X/Y-axis rapid feeding speed	m/min	12/12/12	15/10/10	20/15/15	15/10/10
Feeding speed	mm/min	1-5000	1-5000	1-5000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.022	0.016	0.016	0.022
X/Y/Z-axis repositioning accuracy	mm	0.012	0.008	0.008	0.012
Others
Guideway type	-	Hard guideway (X/Y/Z) Z-axis four guideways	Linear guideway (X) Hard guideway (Y/Z) Z-axis four guideways	Linear guideway (X/Y/Z)	Hard guide (X/Y/Z)
N.W	kg	18000	9500	8500	8500
Overall dimension(LxWxH)	mm	4000x4700x3600	3200x3500x2700	3000x3200x2700	3000x3200x2700
