Five Face Double Column Gantry Frame Machining Center(CNC Machine Centre)

Name: Five Face Double Column Gantry Frame Machining Center(CNC Machine Centre)
Brand: TIMAC
SKU: 140796026
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 50,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Gantry

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Gantry

Brand Name TIMAC

Model Number GMC1430

Voltage 380V/50Hz

Power(W) 15/18kw(Spindle)

Dimension(L*W*H) 8000x4000x4000mm

Weight 27000kgs

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

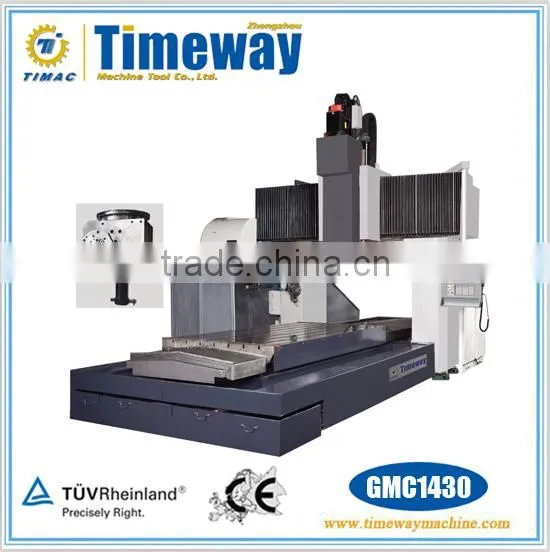

Five-Face Double Column Gantry Frame Machining Center

GMC1430

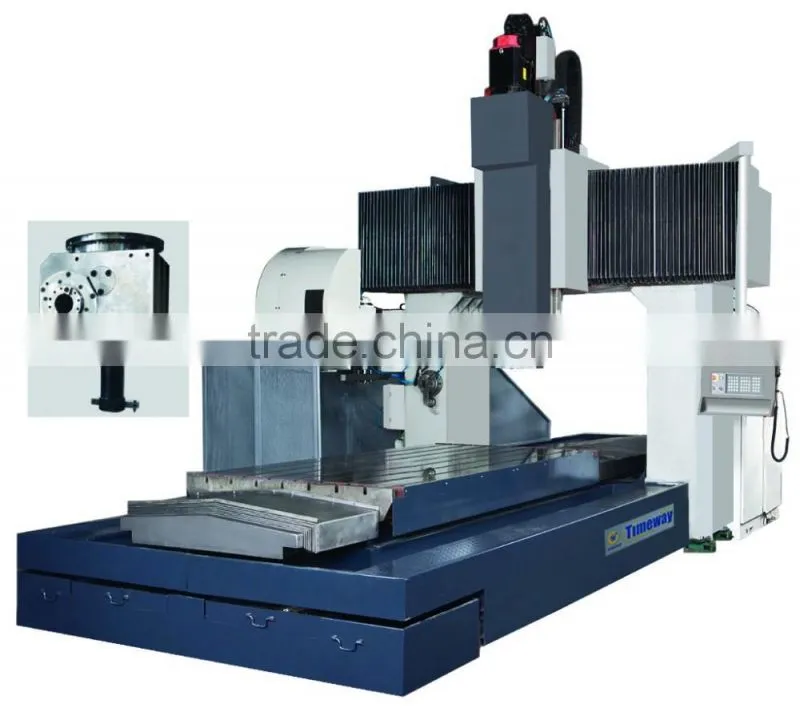

Main Outlook

Product Description

Performance and Feature

The machine is widely suitable for general machinery, automobilem, aerospace, printing and packing, textile machinery, metallurgy, petrochemical, locomotive box line, mold and other large and medium-sized machinery parts processing and mould manufacturing, one-time can complete the rest of the five other than the mounting surface coarse, half finishing and finishing requirement, can finish milling, drilling, tapping, boring, reaming, and other process.
Adopt gantry frame fixed beam structure, machine bed and main parts use high-strength cast iron, ensure stability of the machine during long using term.
X/Y-axis adopt super overloading linear rolling guideway, Z-axis adopts rectangular hardened and plastic hard guideway; high-precision, high-speed, strong cutting and high rigid.
Spindle box is equipped with hydraulic automatic balancing system, balancing dynamically the self-weight of spindle box, guarantee processing accuracy and stability of the machine tool.
For high-precision and high rigidity and large-torque spindle unit, main transmission adopts gear speed shifting, high and low speed automatic transmission by hydraulic station, suitable for low-speed heavy cutting.

Standard Accessories

FANUC 0i MD control system
Round plate type magazine with 24 tools
The highest spindle speed 3000rpm(gear transmission, hydraulic two shifts, suitable for low speed heavy cutting)
Hydraulic driving Z-axis automatic balancing system
The base protection
Milling head index: 5deg

Optional Accessories

Technical Parameter

Specification	Unit	GMC1430
Worktable
Worktable size	mm	1400x3000
T-slot(Number/Width/Distance)	mm	7-22-180
Max. weight of the workpiece	kg	7500
Travel
X-axis travel	mm	3100
Y-axis travel	mm	2000
Z-axis travel	mm	700
Distance from spindle end to worktable surface	mm	205-905
Gantry width	mm	1750
Spindle
Spindle speed	rpm	50-566/566-3000(Hydraulic 2-shifts)
Spindle bore taper	-	BT50
Spindle motor power	kw	15/18
Feed
X/Y-axis rapid feeding speed	m/min	15
Z-axis rapid feeding speed	m/min	12
Feeding speed	mm/min	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.022/0.022/0.022
X/Y/Z-axis repositioning accuracy	mm	0.012/0.012/0.012
Tool Magazine
Capacity	T	24
Max. diameter/length of tool	mm	Φ127/300
Max. weight of tool	kg	15
Others
Net weight	kg	27000
Overall dimension	mm	8000x4000x4000
Five-face milling head
Indexing angle	°	5deg
Indexing speed	rpm	5
Distance from vertical spindle end to worktable surface	mm	205-905
Distance from horizontal spindle center to worktable surface	mm	325-1025
Distance from horizontal spindle center to vertical spindle center	mm	125
