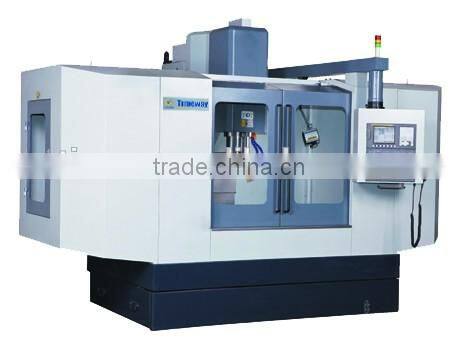

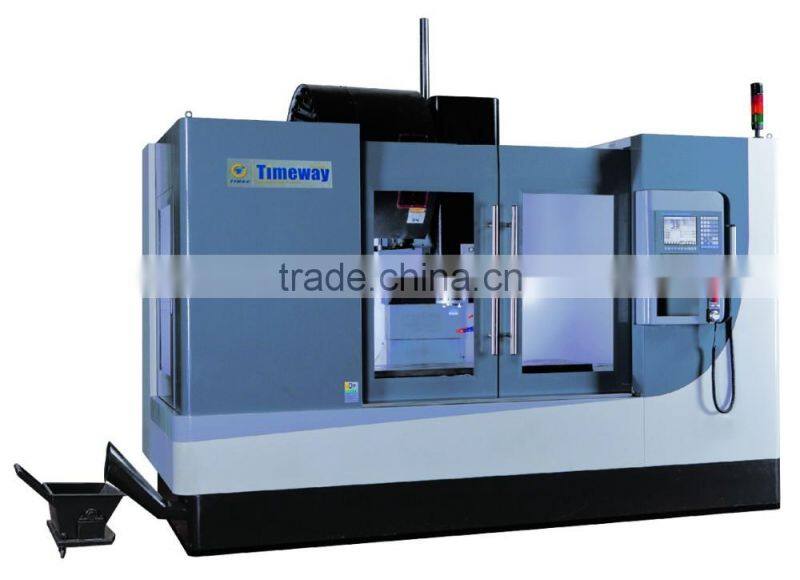

High-Precision CNC Vertical Machining Centre with Hard Guideway
VMC1050 VMC1050A VMC1050B VMC1050C
Standard Accessories
- FANUC 0i-mate MD control system
- Three axis hardened guideway
- Spindle from Taiwan speed
- Tool magazine with manipular from Taiwan
- Full protection guard
- Ball screw from Taiwan
Optional Accessories
- KND-2000MII/HNC/SIEMENS/GSK/MITSUBISHI control system
- Chain-type automatic chip conveyor
- Spindle central water discharge
- Fourth axis
Technical Parameter
Specification | Unit | VMC1050 | VMC1050A | VMC1050B | VMC1050C |
Travel | |||||
X-axis travel | mm | 1000 | 1000 | 1000 | 1000 |
Y-axis travel | mm | 500 | 500 | 500 | 500 |
Z-axis travel | mm | 580 | 580 | 580 | 580 |
Spindle nose to worktable surface | mm | 140-720 (270-850 heighten) | 140-720 (270-850 heighten) | 170-750 (300-800 heighten) | 170-750 (300-880 heighten) |
Spindle center to column guideway face | mm | 545 | 545 | 545 | 545 |
Worktable | |||||
Worktable size | mm | 1600x500 | 1600x500 | 1600x500 | 1600x500 |
T-slot (Number/width/dis.) | mm | 5-18-80 | 5-18-80 | 5-18-80 | 5-18-80 |
Max. weight of workpiece | kg | 600 | 900 | 600 | 900 |
Spindle | |||||
Spindle speed | rpm | 80-3500 | 80-3500 | 80-6000 | 80-6000 |
Spindle taper | - | BT50 | BT50 | BT40 | BT40 |
Spindle motor power | kw | 11/15 | 11/15 | 11/15 | 11/15 |
Feed | |||||
X/Y-axis rapid feeding speed | m/min | 10 | 15 | 10 | 15 |
Z-axis rapid feeding speed | m/min | 8 | 12 | 8 | 12 |
Feeding speed | mm/min | 1-5000 | 1-5000 | 1-5000 | 1-5000 |
Accuracy | |||||
X/Y/Z-axis positioning accuracy | mm | 0.02/0.016/0.016 | 0.02/0.016/0.016 | 0.02/0.016/0.016 | 0.02/0.016/0.016 |
X/Y/Z-axis repositioning accuracy | mm | 0.012/0.008/0.008 | 0.012/0.008/0.008 | 0.012/0.008/0.008 | 0.012/0.008/0.008 |
Tool Magazine | |||||
Capacity | T | 16(20) | 16(20) | 16(24) | 16(24) |
Max. diameter of tools | mm | Φ152/Φ200 (Φ125/Φ150) | Φ152/Φ200 (Φ125/Φ150) | Φ80/Φ130 (Φ80/Φ150) | Φ80/Φ130 (Φ80/Φ150) |
Max. length of tools | mm | 300(300) | 300(300) | 300(300) | 300(300) |
Max. weight of tools | kg | 15 | 15 | 7 | 7 |
Others | |||||
Guideway type | - | Hard Guideway (X/Y/Z) Y-axis four guideways | Hard guideway (X/Y/Z) Y-axis four guideways | Hard Guideway (X/Y/Z) Y-axis four guideways | Hard guideway (X/Y/Z) Y-axis four guideways |
N.W | kg | 6700 | 6700 | 6500 | 6500 |
Overall dimension (LxWxH) | mm | 3500x2450x2400 | 3500x2450*2400 | 3500x2450x2400 | 3500x2450x2400 |

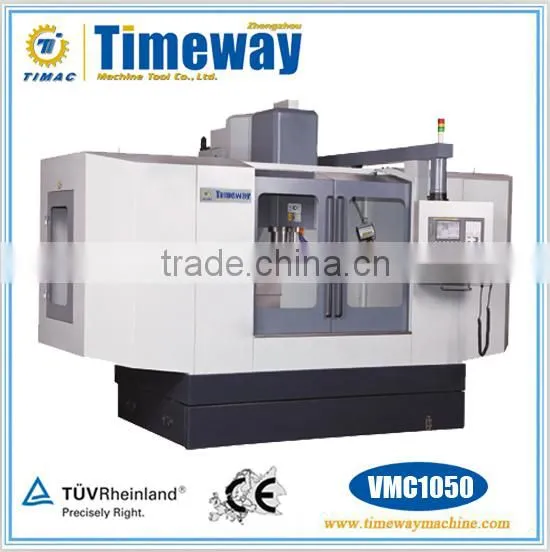

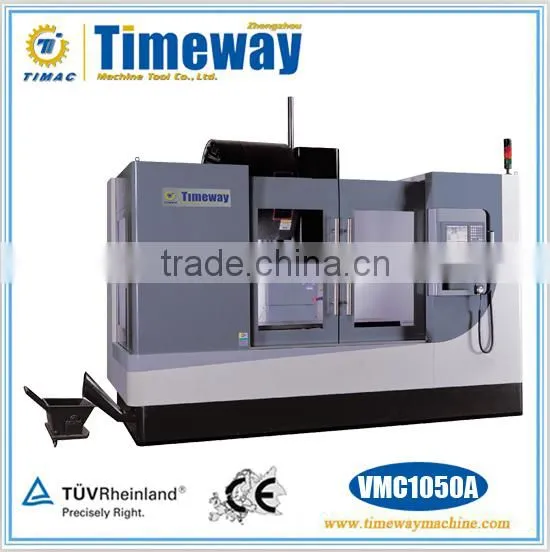

VMC1050 VMC1050A
Actual Pictures
| |
|
