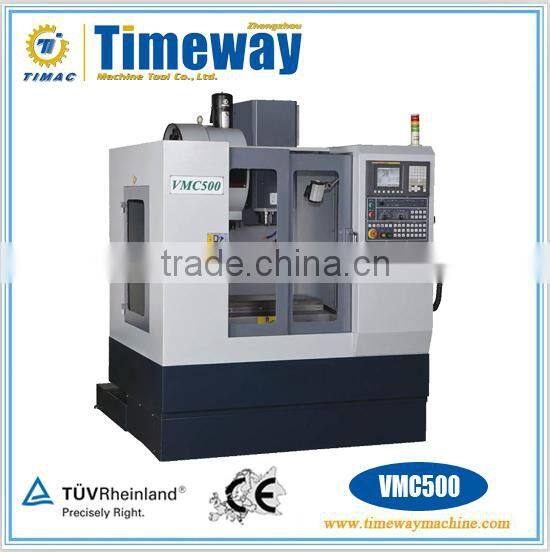

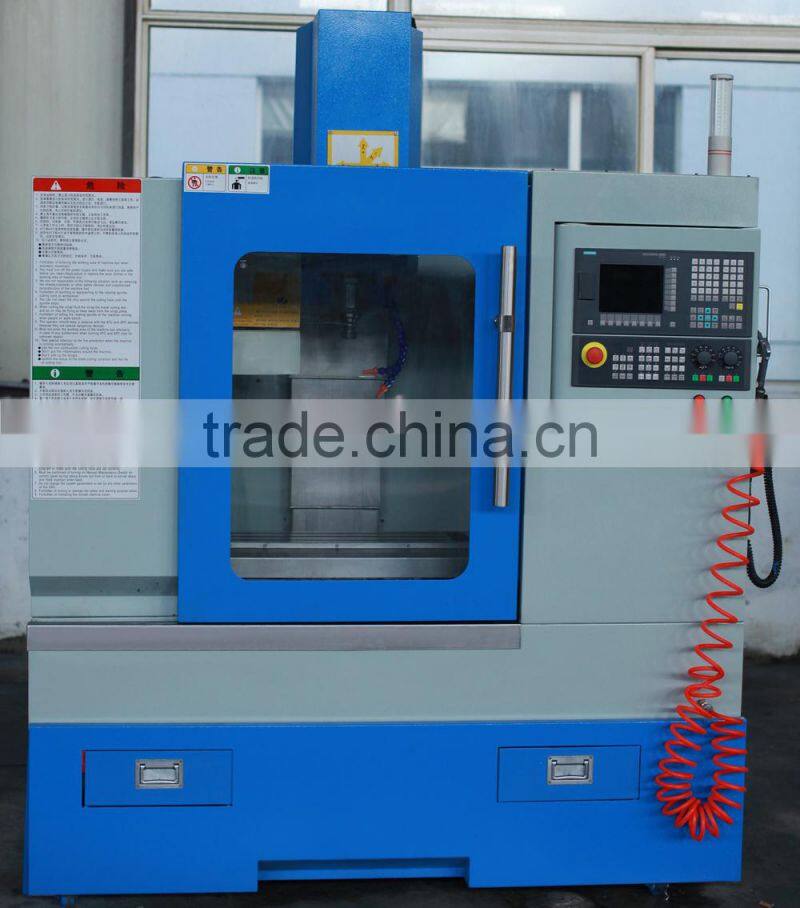

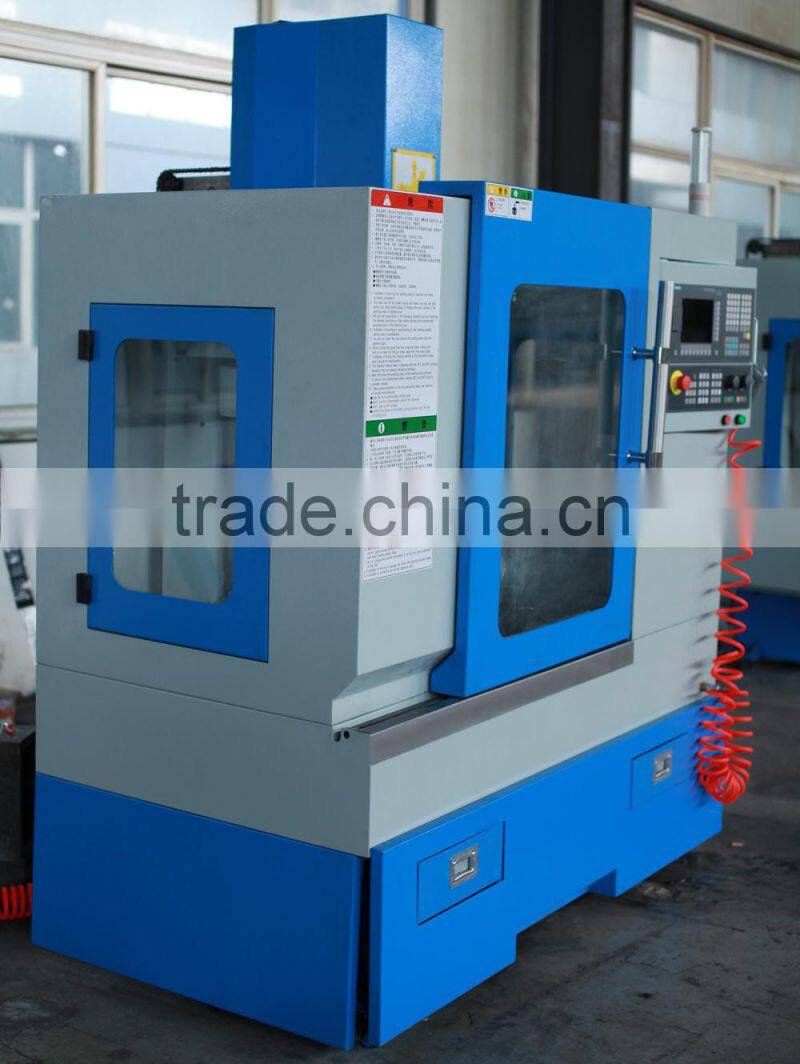

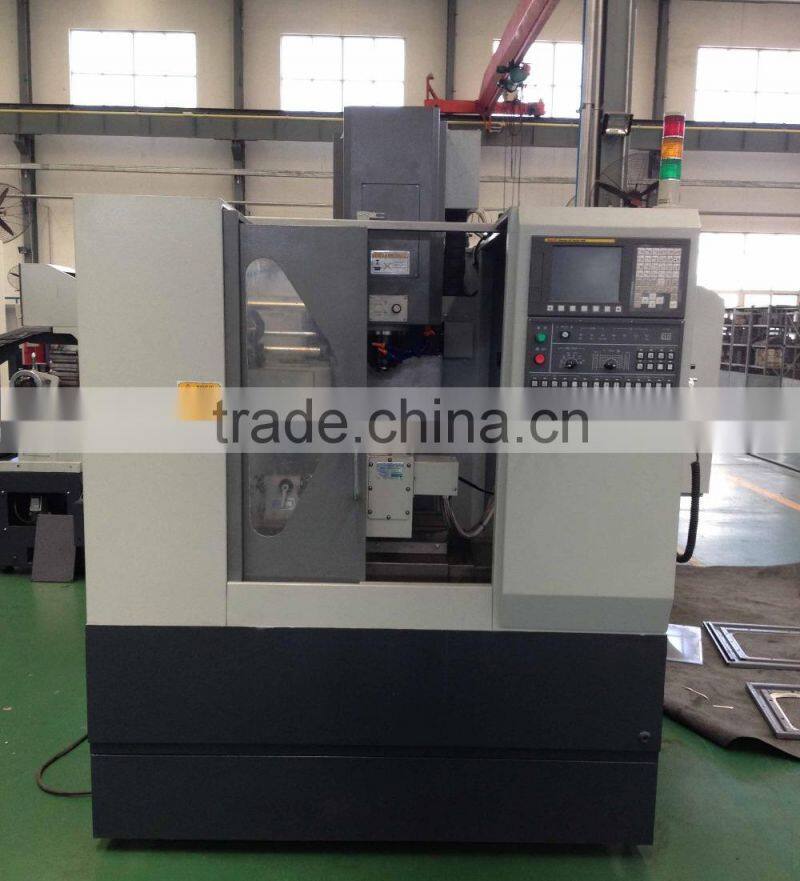

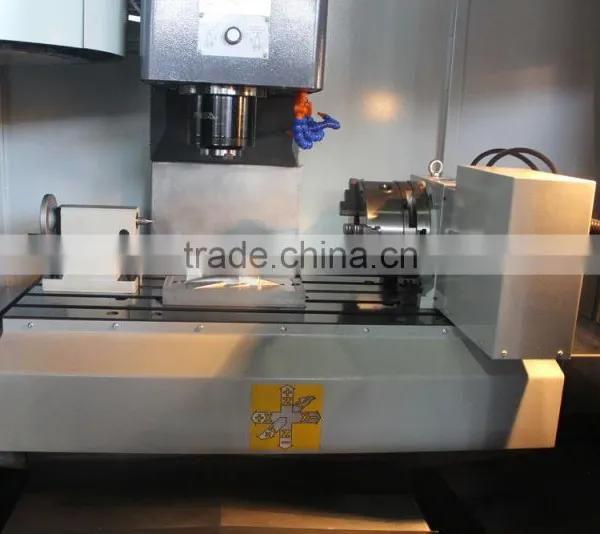

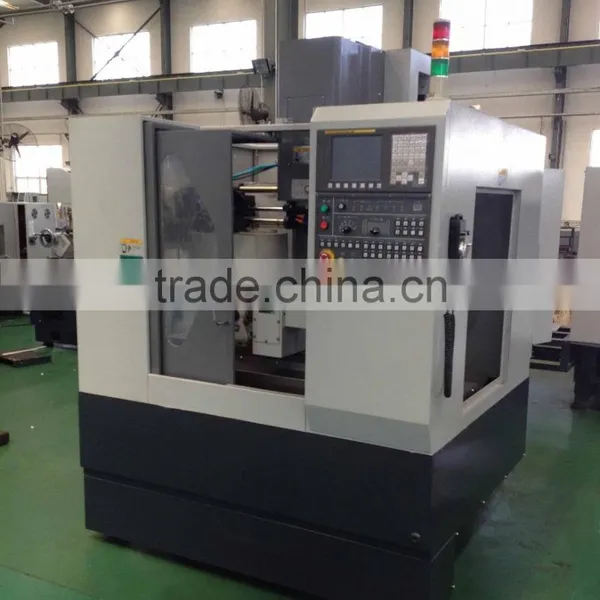

Vertical Machining Center (VMC500)
Features:
3-axis precision linear guide-ways;
FANUC 0i mate-MD CNC system;
High precision and speed spindle unit;
Umbrella type magazine with 10 tools capacity;
Separated type electronic hand wheel (MPG);
RS232 interface;
Oil and water separated design;
Internal settled auto. chip conveying units;
Interval auto-lubricating;
Full splash guard;
Tricolor alarm light;
Operation manuals (English edition).
Parameter:
| Specification | Unit | VMC500 | |
| *Travel | X-axis | mm | 500 |
| Y-axis | mm | 320 | |
| Z-axis | mm | 400 | |
| *Capacity | Table size | mm | 320*800 |
| Max.loading capacity of table | kg | 300 | |
| Spindle nose to table | mm | 125-520 | |
| Spindle center to column guideway face | mm | 360 | |
| T-slot NO./width/distance of table | 3/14/100 | ||
| *Feeding | Rapid feeding of X,Y axis | mm/min | 24000 |
| Rapid feeding of Z axis | mm/min | 18000 | |
| Feeding speed | mm/min | 1-5000 | |
| *Spindle | Spindle max.speed | r/min | 10000 |
| Spindle nose taper | BT30 | ||
| *Turret | Magazine capacity | pcs | 10 |
| Magazine style | Umbrella | ||
| Max.diameter of tool | mm | 60 | |
| Max.length of tool | mm | 200 | |
| Max. weight of tool | kg | 5 | |
| *CNC Controller | Alternatives | FANUC; SIEMENS; FAGOR | |
| *Other | Main motor rated power | kw | 3.7/5.5 |
| Pneumatic press | mpa | 0.6 | |
| N.W | kg | 2600 | |
| Overall dimension | mm | 1600x1840x2110 | |

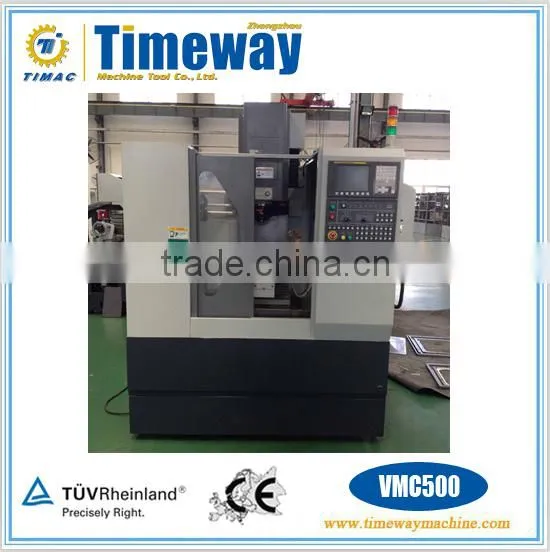

* VMC500 series CNC Machining Center
* VMC400 series CNC Machining Center
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 1.8*2.1*2.3M N.W./G.W.: 2600/2800KGS
Container loaded: 3 sets / 20'GP
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
