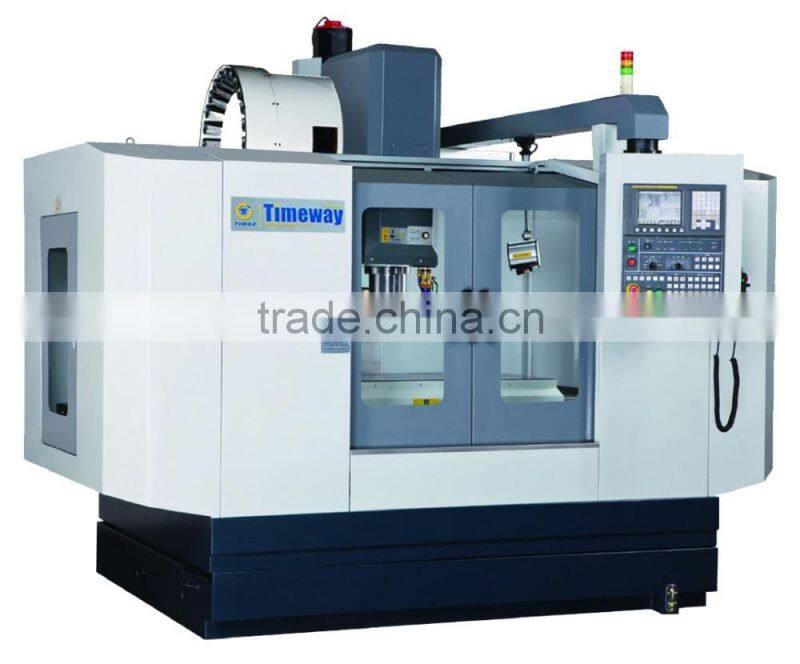

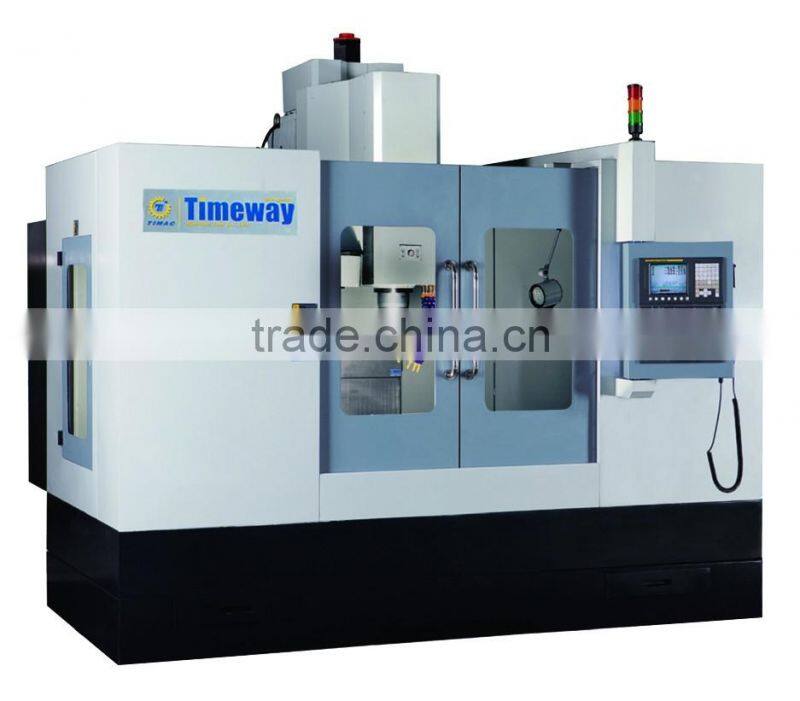

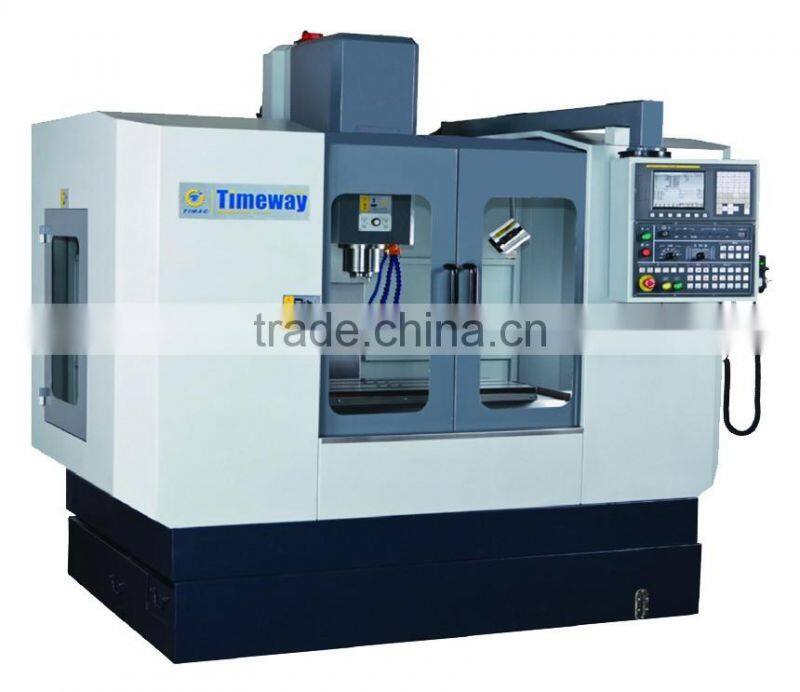

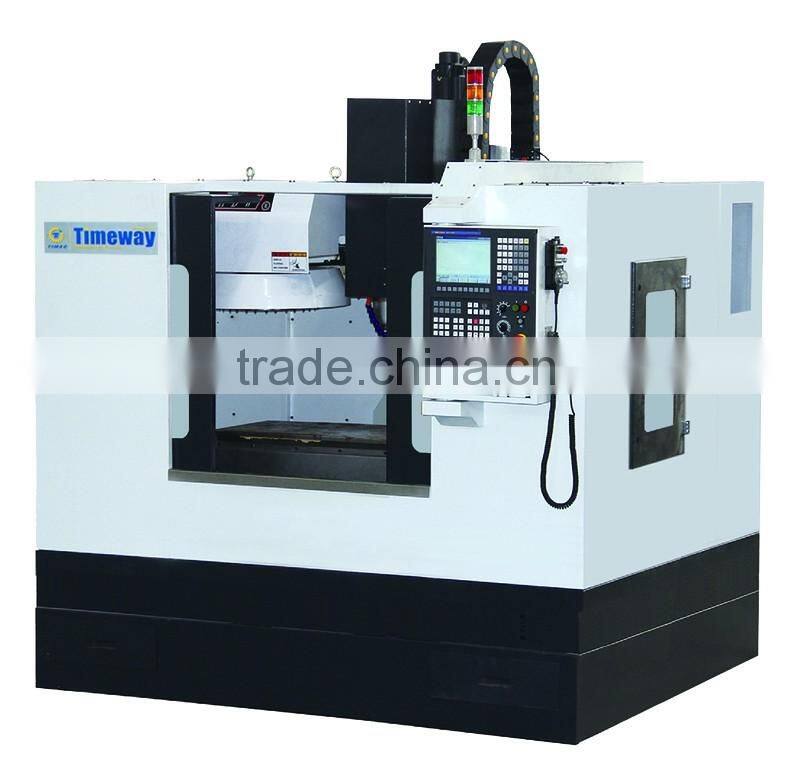

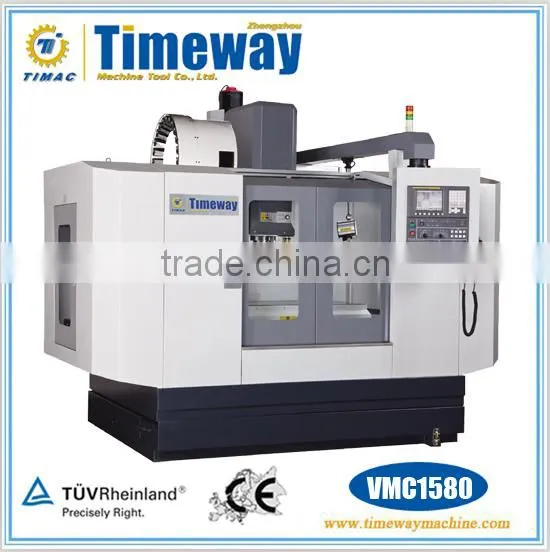

High Precision CNC Vertical Machine Centre

Name: High Precision CNC Vertical Machine Centre
Brand: TIMAC
SKU: 140796008
Availability: InStock

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Vertical

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Brand Name TIMAC

Model Number VMC1060

Voltage 380V/50Hz

Power(W) 7.5/11kw(Spindle)

Dimension(L*W*H) 3200x2250x2960mm

Weight 6600kgs

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

High-Precision CNC Vertical Machining Centre with Hard Guideway

VMC500 VMC650 VMC745 VMC850 VMC1060 VMC1370 VMC1580

Main Outlook

Product Description

Standard Accessories

Optional Accessories

Technical Parameter

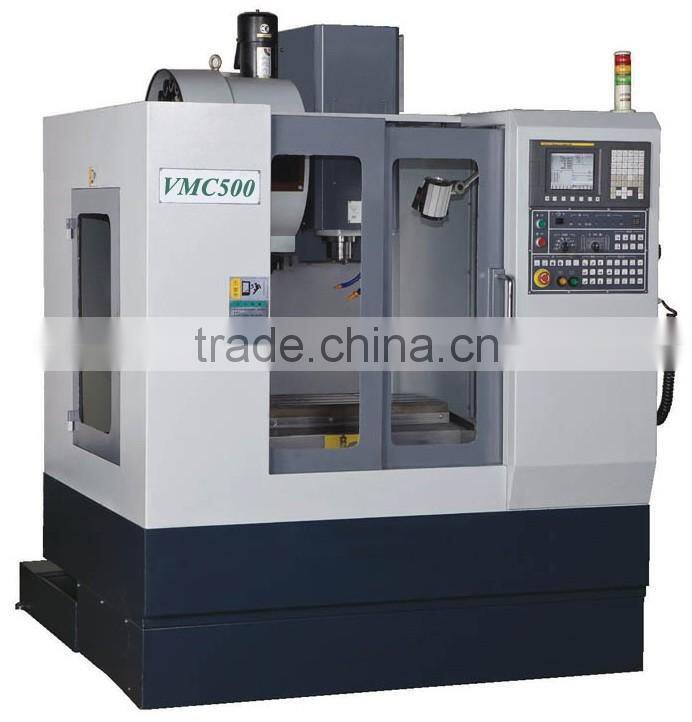

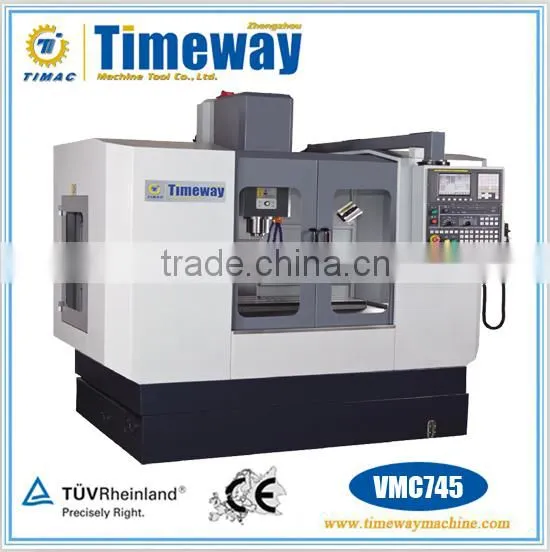

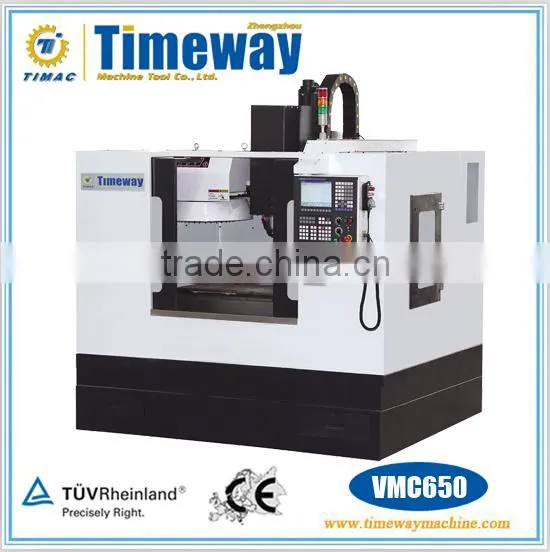

VMC500/VMC650/VMC745/VMC850

Specification	Unit	VMC500	VMC650	VMC745	VMC850
Travel
X-axis travel	mm	500	650	700	800
Y-axis travel	mm	320	350	450	500
Z-axis travel	mm	400	500	550	500
Spindle nose to worktable surface	mm	120-520	100-600	120-670	110-610
Spindle center to column guideway face	mm	360	375	460	560
Worktable
Worktable size	mm	800x320	950x350	1000x450	1050x500
T-slot (Number/width/distance)	mm	3-14-100	3-14-100	3-18-125	5-18-90
Max. weight of workpiece	kg	300	400	600	600
Spindle
Spindle speed	rpm	100-10000	80-8000	80-8000	60-8000
Spindle taper	-	BT30	BT40	BT40	BT40
Spindle motor power	kw	5.5/7.5	3.7/5.5	5.5/7.5	7.5/11
Feed
X/Y-axis rapid feeding speed	m/min	18	12	12	18
Z-axis rapid feeding speed	m/min	18	10	10	18
Feeding speed	mm/min	1-5000	1-5000	1-5000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.01/0.01/0.01	0.025/0.02/0.02	0.016/0.012/0.012	0.016/0.012/0.012
X/Y/Z-axis repositioning accuracy	mm	0.006/0.006/0.006	0.015//0.01/0.01	0.01/0.008/0.008	0.01/0.008/0.008
Tool Magazine
Capacity	T	10(20)	12	16(24)	16(24)
Max. diameter of tools	mm	Φ60/Φ100	Φ90/Φ150	Φ80/Φ130 (Φ80/Φ125)	Φ80/Φ130 (Φ80/Φ125)
Max. length of tools	mm	200	300	300(300)	300(300)
Max. weight of tools	kg	5	6	6	6
Others
Guideway type	-	Hard guideway (X/Y/Z)	Dovetail guideway (X) Rectangular hard guideway (Y/Z)	Hard guideway (X/Y/Z)	Hard guideway (X/Y/Z)
N.W	kg	2500	3000	3500	4500
Overall dimension(LxWxH)	mm	1600x1840x2110	2380x1950x2300	2100x2450x2300	2700x2150x2700

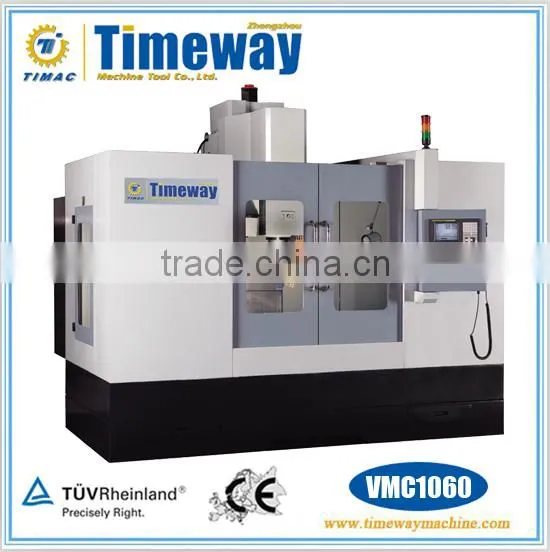

VMC1060/VMC1370/VMC1370A/VMC1580

Specification	Unit	VMC1060	VMC1370	VMC1370A	VMC1580
Travel
X-axis travel	mm	1000	1200	1300	1500
Y-axis travel	mm	600	700	700	800
Z-axis travel	mm	700	600	650	700
Spindle nose to worktable surface	mm	140-840	150-750	140-790	170-870
Spindle center to column guideway face	mm	650	785	785	800
Worktable
Worktable size	mm	1300x600	1360x700	1400x710	1700x800
T-slot(Number/width/distance)	mm	5-18-100	5-18-152.5	5-22-120	5-22-135
Max. weight of workpiece	kg	800	1000	1000	1500
Spindle
Spindle speed	rpm	60-8000	60-8000	60-6000	50-8000
Spindle taper	-	BT40	BT50	BT50	BT50
Spindle motor power	kw	7.5/11	11/15	11/15	11/15
Feed
X/Y-axis rapid feeding speed	m/min	15	15	15	15
Z-axis rapid feeding speed	m/min	12	12	12	12
Feeding speed	mm/min	1-5000	1-5000	1-5000	1-5000
Accuracy
X/Y/Z-axis positioning accuracy	mm	0.016/0.012/0.012	0.02/0.016/0.016	0.02/0.016/0.016	0.02/0.016/0.016
X/Y/Z-axis repositioning accuracy	mm	0.01/0.008/0.008	0.012/0.008/0.008	0.012/0.008/0.008	0.012/0.008/0.008
Tool Magazine
Capacity	T	16(24)	16(24)	16(24)	24
Max. diameter of tools	mm	Φ80/Φ150 (Φ80/Φ130)	Φ152/Φ200 (Φ125/Φ150)	Φ152/Φ200 (Φ125/Φ150)	Φ127/Φ200
Max. length of tools	mm	300(300)	350(300)	350(300)	350
Max. weight of tools	kg	6	15	15	15
Others
Guideway type	-	Hard Guideway (X/Y/Z) Y-axis four guideways	Hard guideway (X/Y/Z)	Hard guideway (X/Y/Z)	Hard guideway (X/Y/Z)
N.W	kg	6600	10000	11000	15000
Overall dimension(LxWxH)	mm	3200x2250x2960	3950x3320x2750	3700x2950*2970	3569x4100x3055
