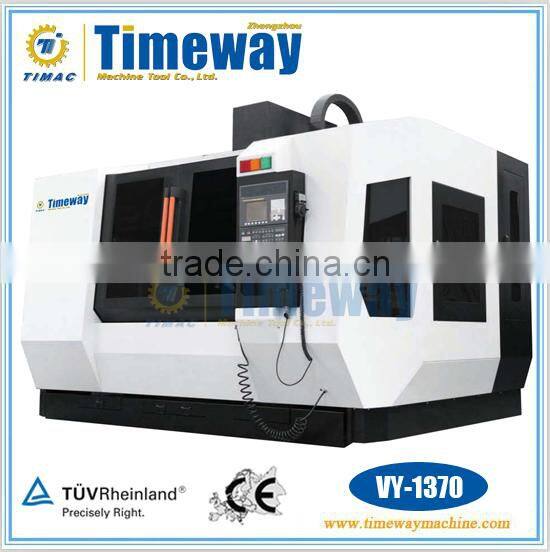

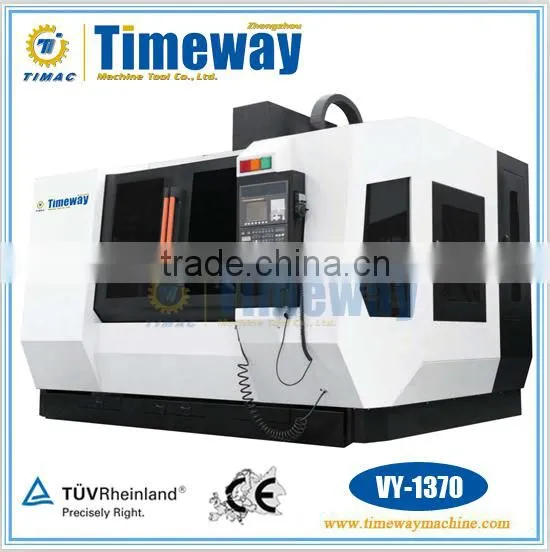

VY Series Hot-sales Vertical Machining Center With Hard Guideway
VY-850 VY-1060 VY-1370 VY-1690 VY-1370G VY-1690G
Machine Summary

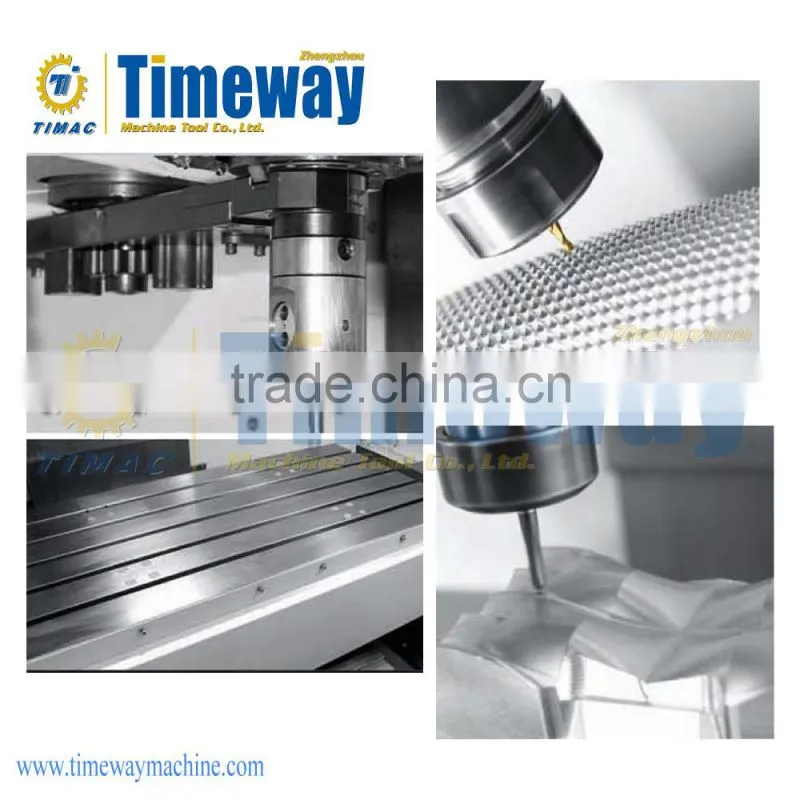

VY series vertical machining center adopts the moving structure of middle and small-scale complicated parts.It can finish all kinds of processing, such as milling ,drilling,expanding ,boring ,tapping and profile milling at one time of clamping.It is suitable for the parts processing with high precision,multiple procedure and complicated shape.It is the key facility in industries of general machinery, mold, aviation, energy and traffic.
Structure and Performance

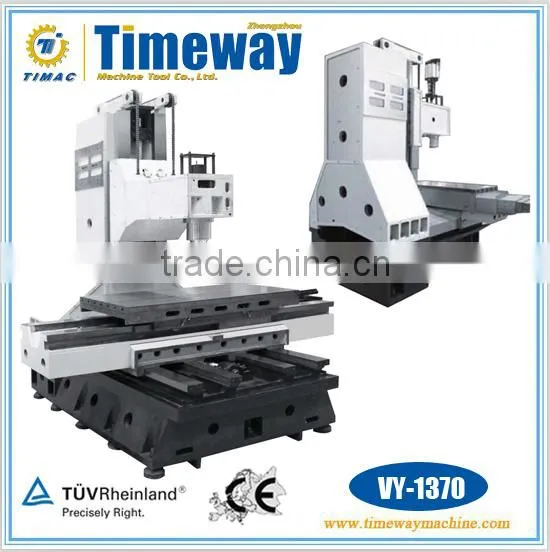

1.The column adopts the herringbone structure characterized by the large contact surface to guarantee the stability of machine tool and enhance the processing precision and surface smoothness.
2.Apply the computer-aided engineering(CAE) system to finish the optimized structure design and enhance the reliability of machine tool ,and the finite element method(FEM) to take the scienfic analysis and optimization of design structure,which can guarantee the rigidity and stability of the whole machine structure.

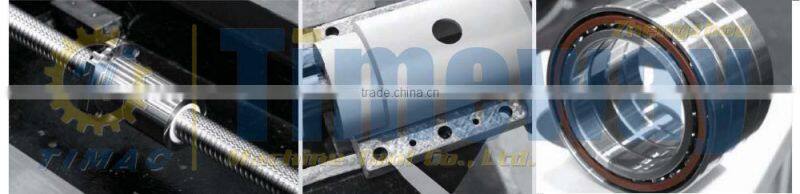

3.3-axis adopts imported C3-level precision ball screw.Apply the pretension to each axis to enhance the transmission rigidity and location precision.
4.The precision scraping of three-axis seat has no gasket design to guarantee the smooth-ness of three-axis transmission.
5.The spindle applies the imported precision P4-level bearing to guarantee the high precision and high rigidity of the spindle.

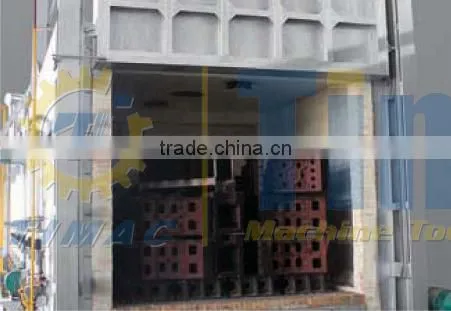

6.The bed ,saddle,table ,column and spindle box are made of high strength inoculated cast iron and resin bonded sand and treated by multiple aging processes to guarantee the rigidity and stability of the machine tool.

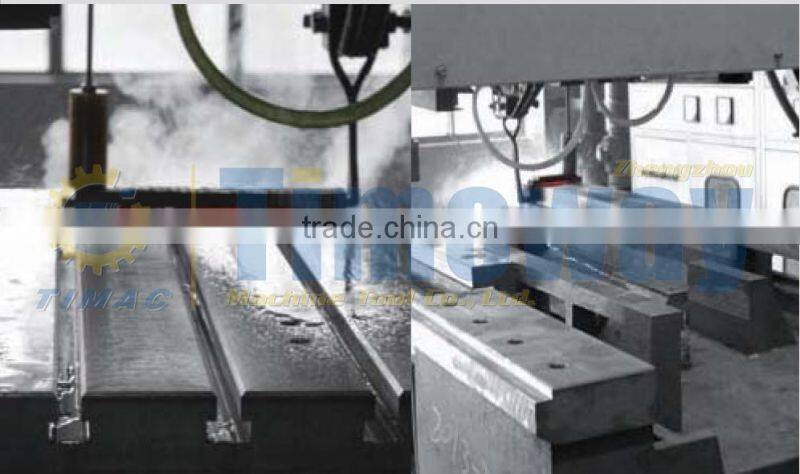

7.The machine adopts the rectangle sliding guide and the guide surface is treated by the high-frequency quenching and grinded by the imported guide grinding machine to result in the good precision stability.The guide is attached by the wearing piece with small friction coefficient and strong bearing capacity.
8.The imported spindle component adopts P4-level precision bearing with large span of bearing arrangement.Accompanied with the sliding guide,it is suitable for the strong and heavy cutting.
9.Standard belt-type 8000(6000)rotation spindle that applies the imported precision P4-level bearing to assemble the main body to guarantee the high precision and high rigidity of the spindle.
10.Both ends of the ball screw adopt the immported PN7-level screw supporting bearing special for CNC machine tool and also the precision nut for the pretension to reduce the thermal deformation,but greatly enhance the location precision and repeated location precision.

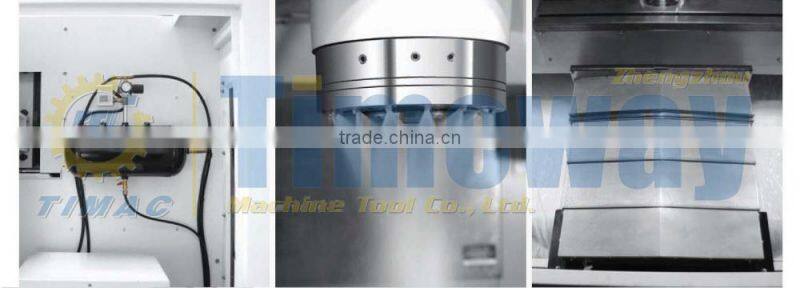

11.All guides and ball screws adopt the centralized,timed and measured lubrication,leading to the complete and reliable lubrication.Meanwhile,the main lubrication duct has the function oil pressure-loss protection.
12.The oil cup of unclamping cylinder has the function of liquid-level detection to guarantee the reliability of unclamping.
13.The fully-enclosed fast tool-change tool magazine can guarantee the safe ,reliable and efficient tool change.
14.The tool magazine is optionally equipped with the air cylinder to guarantee the stable pressure of air supply and avoid the stuck tool caused by the insufficient air supply(optional).
15.The cyclic spraying of spindle can provide the full cooling during the processing (Optional).
16.The punching for the chassis provides the great convenience for operators to clean the scrap iron and enhance the working efficiency(Optional).
17.Large-type Y-axis 4-sliding track design with wide guide,large span and strong bearing capacity.
18.The table surface and sliding guide surface are treated by the high-frequency quenching with the hardness up to HRC 45,and grinded by the imported guiding machine to result in the good precision stability.
19.Adopt the gear-type spindle and design of integrated machine head and gear case,which greatly promotes the structural rigidity,effectively avoids the effect of heavy cutting.
Standard configuration
FANUC 0i Mate-MD CNC system
FANUC 0i-MD CNC system
Electric tank with air condision
Automatical lubrication device
Cutting blow
Electric heat exchanger
Tool cooling system
Spindle with air curtain protection system
Air filtration purification device
Air gun
Air pressure test system
Lighting system
Communication interface
Three color light alarm
Full-enclosed protection shield
Handheld electronic hand wheel
Tools and tool box
Horizonral adjustment bolts and shim
Technical documents
Optional configuration
FANUC 0i Mate-MD CNC system
FANUC 0i-MD CNC system
MITSUBISHI M70V CNC system
SIEMENS 828D CNC system
SIEMENS 840DSL CNC system
BT40 belt-type 8000 rotation spindle
BT40 belt-type 10000 rotation spindle
BT50 belt-type 8000 rotation spindle
Screw-type chip conveyor
Chain-type conveyor
Tool test system
Workpiece test system
Electric cabinet air condision
Spindle oil cooler
Spindle cyclic spray
Spindle central water discharge
Chassis stampings system
CNC rotary table
Grating scale
Water gun
Oil mist absorber
Technical Parameters
| Specifications | Units | VY-1370 | VY-1690 | VY-1370G | VY-1690G | |
| Table | Table dimension | mm | 1400*700 | 1800*900 | 1400*700 | 1800*900 |
| Max. load | kg | 1200 | 1800 | 1200 | 1800 | |
| T-slot(Dimension*Distance*Quantiy) | mm | 18*100*7 | 22*135*7 | 18*100*7 | 22*135*7 | |
| Travel | Three-axis travel X/Y/Z | mm | 1300/700/650 | 1600/900/750 | 1300/700/650 | 1600/900/750 |
| Spindle | Distance from spindle nose to table surface | mm | 150-800 | 150-900 | 150-800 | 170-920 |
Distance from spindle center to column guide surface | mm | 725 | 920 | 725 | 920 | |
| Spindle type | BT40/BT50 belt-type | BT40/BT50 belt-type | BT50 gear-type | BT50 gear-type | ||
| Rivet-type | BT50-45° | BT50-45° | BT50-45° | BT50-45° | ||
| Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 | |
| Main motor power | kw | 15/18.5 | 18.5/22 | 15/18.5 | 18.5/22 | |
Feeding speed | 3-axis feeding motor power X/Y/Z | kw | 4/4/4 | 7/7/7 | 4/4/4 | 7/7/7 |
| Rapid traverse speed X | m/min | 20 | 20 | 20 | 20 | |
| Rapid traverse speed Y | m/min | 20 | 20 | 20 | 20 | |
| Rapid traverse speed Z | m/min | 20 | 20 | 20 | 20 | |
| Cutting and feeding speed | mm/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | |
Tool magazine (Disk-type) | Tool magazine capacity | T | 24/30 | 24/30 | 24/30 | 24/30 |
| Max.tool diameter*length/weight | mm*mm /kg | Φ112*300/15 | Φ112*300/15 | Φ112*300/15 | Φ112*300/15 | |
| Tool changing time | sec. | 3 | 3 | 3 | 3 | |
| Precision | Location precision X/Y/Z | mm | 0.018 | 0.018 | 0.018 | 0.018 |
| Repeated location precision X/Y/Z | mm | 0.009 | 0.009 | 0.009 | 0.009 | |
| Others | Power capacity | Kva | 35 | 45 | 35 | 45 |
| Pressure of air supply | kgf/cm2 | 6.5 | 6.5 | 6.5 | 6.5 | |
Overall dimension (Length*width*height) | mm | 3585*2830*3080 | 4215*3515*3270 | 3585*2830*3080 | 4215*3515*3270 | |
Net weight of tool machine (Approximate) | kg | 10000 | 14500 | 10000 | 14500 | |
