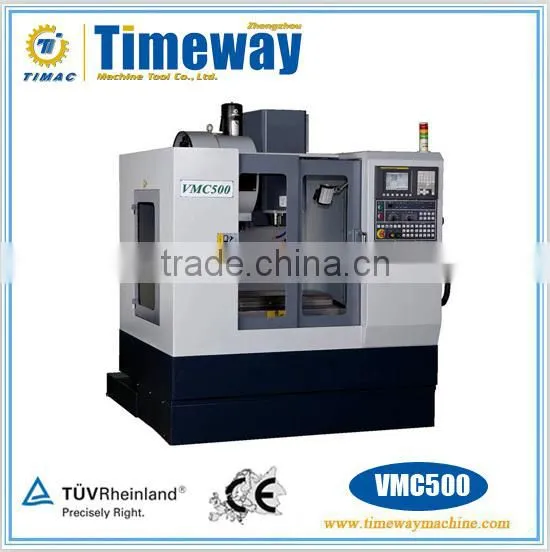

CNC Machining Center / CNC Milling Machine For Sale ( VMC500 )

Name: CNC Machining Center / CNC Milling Machine For Sale ( VMC500 )
Brand: TIMAC
SKU: 140796002
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

VMC500

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number VMC500

Type Vertical

CNC or Not CNC

Voltage as customer's request

Power(W) 3.7/5.5KW

Dimension(L*W*H) 1600mm*1840mm*2110mm

Weight 2600kg

Certification CE & ISO9001

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

( CNC Machining Center) CNC Vertical Milling Machine For Sale at a LOW Price---VMC500

Product Description

Features:

*FANUC 0i mate-MD CNC system; *Oil and water separated design;

*High precision and speed spindle unit; *Interval auto-lubricating;

*Umbrella type Magazine; *Full splash guard;

*Floating tools clamping system; *Tricolor arm light;

*Separated type electronic hand wheel(MPG) *3-axis linear guideways

*RS232 interface

Parameter:

Specification	Unit	VMC500
***TRAVEL
Travel of X axis	mm	500(liner way)
Travel of Y axis	mm	320(liner way)
Travel of Z axis	mm	400(liner way)
Spindle nose to table	mm	120-520
Spindle center to column	mm	360
***TABLE
Table size	mm	800×320
T-Slot(No./Width/ table distance)		3/14/100
Table load	kg	300
***SPINDLE
Taper size		BT30 (BT40 opt)
Speed	rpm	10000(GSK) 9000(Seimens) 10000(Fanuc)
Spindle power	kw	5.5/7.5
***FEED
Rapid feed(X/Y/Z)	m/min	18/18/18
Feed rate	mm/min	1-5000
***ACCURACY
Positioning	mm	X-0.012/Y-0.01/Z-0.01
Repeatability	mm	X-0.008/Y-0.006/Z-0.006
***ATC
Tool storage capacity		10station, drum type
Max. tooL diameter	mm	60/100
Max. tool length	mm	200
Max. tool weight	kg	5
Tool change time	secs	6
***OTHER
Pneumatic pressure	Mpa	0.6
Machine size	mm	1600×1840×2110
Weight	kg	2500
