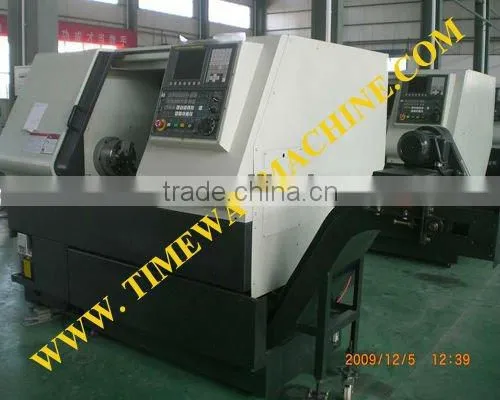

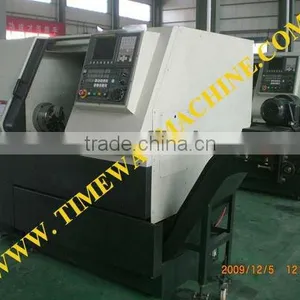

Full Function CNC Lathe/Slant Bed Type CNC Lathe

Name: Full Function CNC Lathe/Slant Bed Type CNC Lathe
Brand: TIMAC
SKU: 140795962
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Place of Origin Henan, China

Brand Name TIMAC

Model Number KD-20A,KD-25A,KD-40A

Voltage As per customer request

Certification ISO, CE Standard

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Fanuc 0i mate TD controller
2. Hydraulic chuck
3. Hydraulic tool turret
4. Servo motor

Full Function CNC Lathe

1. The machine adopts global famous controller with Rs232 interface.

2. Longitudinal and cross feeds are effected by ball leadscrews and high precision linear guideways,increasing the feeding speed and accuracy.

3. Slant structure bed increasing the processing accuracy and easier for chip removal.

4. Equipped with both hydraulic chuck and tool turret increasing the working efficiency and convenient.

5. The spindle system is high in the rigidity and accuracy.

6. Both inverter and servo type main motors are available as requirement.

7. Both manual and hydraulic tailstocks are available as requirement.

8. Regarding the client's requirement, the lathes can come with auto. chip conveying system and tool measuring unit.

Specification	Unit	KD-20A	KD-25A	KD-40A
Max. swing over bed	mm	410	500	750
Max. cutting dia. for disc parts	mm	360	300	750
Max. cutting dia. for axle parts	mm	200	250	350
Max. cross travel(X)	mm	180	180	370
Max. longitudinal travel(Z)	mm	420	500	1050
Max. turning length of workpiece	mm	350	400	870
Rapid feed for axis X	m/min	9	10	10
Rapid feed for axis Z	m/min	15	20	20
Max. speed of spindle	r/min	4000/6000	3000/5000	2000
Spindle bore	mm	56	62	105
Spindle nose	A2-5	A2-5	A2-5	A2-8
Hydraulic chuck		6″(8″)	8″	12″
Number of tools		8Hydro.	8Hydro.	12Hydro.
Min. index of C axis		---	---	---
Servo motor power for powered tool	kw	---	---	---
Max. speed of power tool	r/min	---	---	---
Outside dia. of cutting tool shank	mm	20×20	25×25	25×25
Inner dia. of cutting tool shank	mm	25	40	40
Tailstock sleeve dia.	mm	63	63	100
Tailstock sleeve travel	mm	100	115	210
Taper hole of talistock quill		M.T.No.4	M.T.No.4	M.T.No.4
Min. Input	mm	0.001	0.001	0.001
Main. motor	kw	5.5,5.5/7.5	7.5,7.5/11	15
Bed structure		60°Slant bed	30°Slant bed
Overall dimensions(L×W×H)	mm	2435×1270×1660	1950×1650×1680	3375×2250×1965
Net weight	kg	2700	3400	5400
