Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Loading 63ton Super Heavy Duty Horizontal CNC Lathe
Loading 63ton Super Heavy Duty Horizontal CNC Lathe
US$ 300,000 - 500,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Vertical LatheUS$ 15,600 - 100,000MOQ: 1 Set -
CNC Pipe Thread Turning Lathe(Oil Country Lathe)US$ 19,999 - 199,999MOQ: 1 Set
-
SK-2500/40T x 10M Large Diameter Heavy Duty CNC Horizontal LatheUS$ 630,000 - 1,000,000MOQ: 1 Set
-
CK Series FANUC Flat Bed Type CNC Lathe Machine For SaleNegotiableMOQ: 1 Set
-
Small-type High Precision and High Quality CNC Horizontal Instrument Lathe MachineUS$ 5,000 - 20,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
2500mm
Brand Name
TIMAC
Model Number
AK-2500H/2
Voltage
380v 50hz
Power(W)
144kw
Dimension(L*W*H)
18475x3622x3250mm
Weight
118000kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas

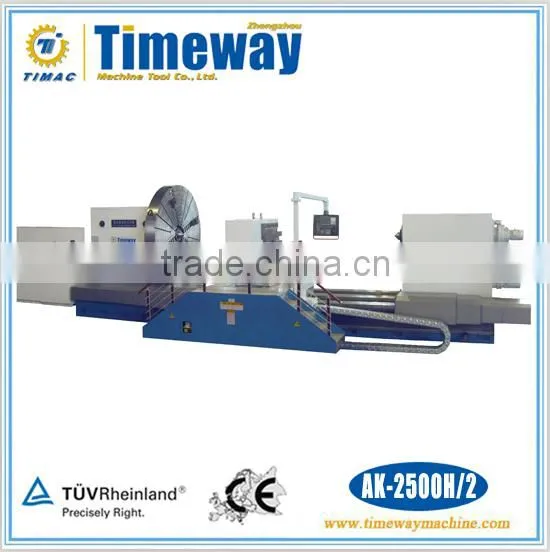

Loading 63ton Super Heavy Duty Horizontal CNC Lathe
AK-2500H/2

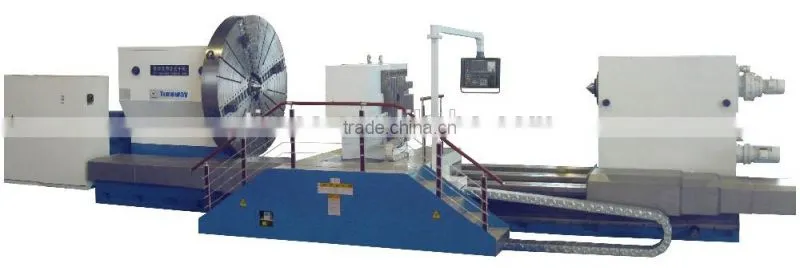

Main Outlook
Product Description
Features:
• This is a type of universal NC and heavy horizontal lather which bearing 63 ton,is applicable to turning external and internal cylindrical surfaces, oil grooves, cutting off, boring hole,turning inside and outside conical,cylindrical , discoid parts and different kinds of screw thread to axes parts of different materials with high-speed steel and hard alloy steel cutters.
• This machine bed's structure is integral BOX-SHAPED and three strip rectangular guide way , and it is found once by high quality cast iron (HT300),through two-aged processing ,stability is good.
• CNC controller: FANUC 0i TD or SIEMENS 828D
Techincal Parameter:
| Model | AK-2500H/2 |
| Swing over bed | Φ2500mm |
| Swing over carriage | Φ2200mm |
| Max. length of workpiece | 10000mm |
| Width of bed | 2090mm (3 slideways ) |
| Max. weight of workpiece | 63ton |
| Power of spindle | 144kw |
| Center cone apex angle | 75° |
| Range of spindle speed | 0.5-125 (Stepless) |
| Face chuck diameter | Φ2200mm |
| Max. torque of face chuck | 120Kn.m |
| Range of cross feed | 1-3000mm/min |
| Travel of cross | 1000mm |
| Range of longitudinal feed | 1-6000mm/min |
| Travel of longitudinal | 10000mm |
| Turret working position | V4 |
| Size of turret | 80x80mm |
| Max. cutting force | 120Kn |
| Rapid of turret | 4kw |
| Dia. of tailstock quill | 560mm |
| Travel of tailstock quill | 200mm |
| Taper hole of tailstock quill | 160/1:4 |
| Rapid of tailstock | 2500mm/min |
| Rapid of sleeve | 50mm/min |
| Length | 18475mm |
| Width | 3622mm |
| Height | 3250mm |
| Weight | 118000kg |
Detail Images

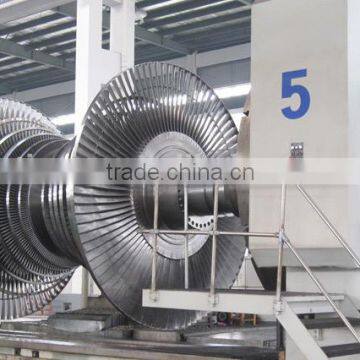

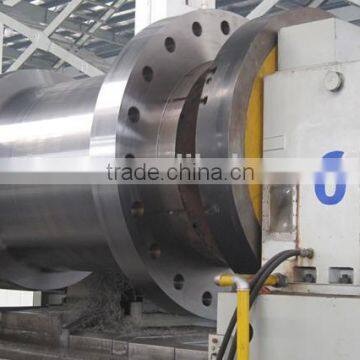

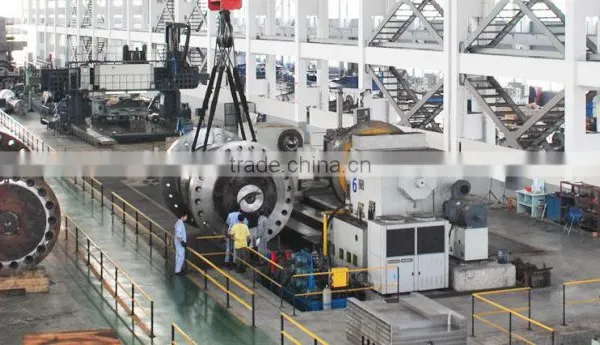

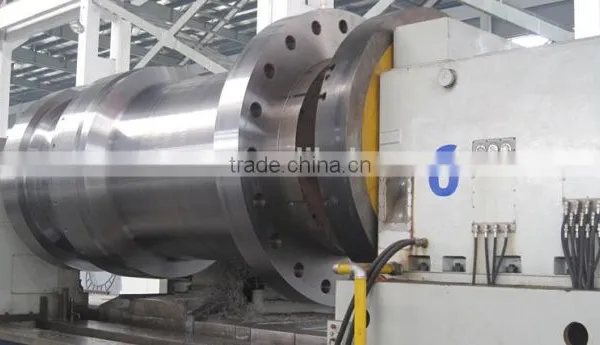

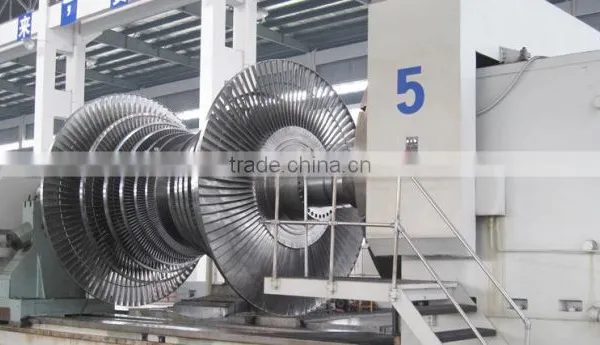

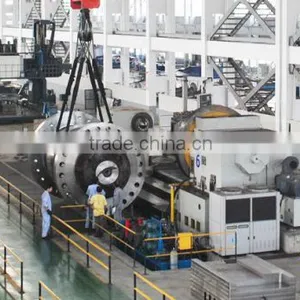

Working View:
