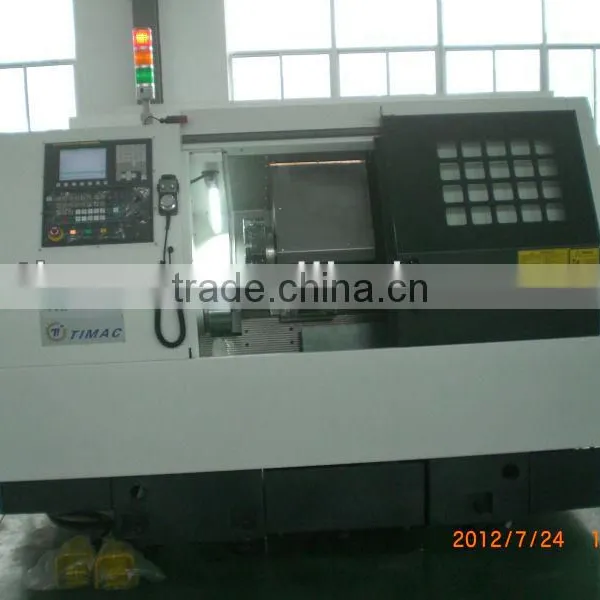

Slant Bed CNC Lathe1. Swing dia: 410mm
2. Fanuc 0i mate TD system
3. CE norms.

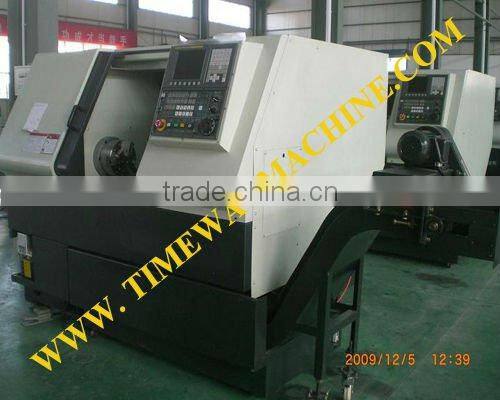

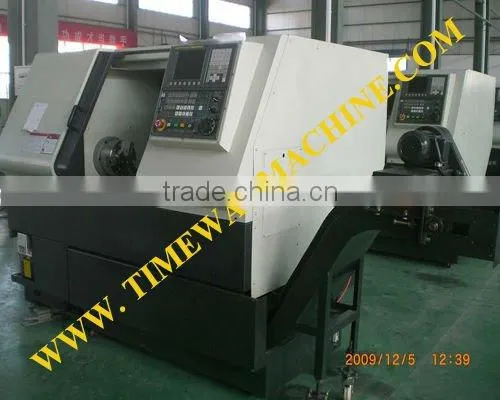

410mm Swing / Slant Bed CNC Lathe / KD-20A
Features:
1. The machine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews and high precision linear guideways,
increasing the feeding speed and accuracy.
3. Slant structure bed increasing the processing accuracy and easier for chip removal.
4. Equipped with both hydraulic chuck and tool turret increasing the working efficiency and convenient.
5. The spindle system is high in the rigidity and accuracy.
6. Both inverter and servo type main motors are available as requirement.
7. Both manual and hydraulic tailstocks are available as requirement.
8. Regarding the client's requirement, the lathes can come with auto. chip conveying system
Parameter:
Specification | Unit | KD-20A | KD-25A | KD-40A | |
*Capacity | Center height | mm | 205 | 250 | 375 |
Max. swing over bed | mm | 410 | 500 | 750 | |
Max. cutting dia. for disc parts | mm | 360 | 300 | 750 | |
Max. cutting dia. for axle parts | mm | 200 | 250 | 350 | |
Max. cross travel (X) | mm | 180 | 180 | 370 | |
Max. longitudinal travel (Z) | mm | 420 | 500 | 1050 | |
Max. turning legth of workpiece | mm | 350 | 400 | 870 | |
*Feed | Rapid feed for axis X | m/min | 9 | 10 | 10 |
Rapid feed for axis Z | m/min | 15 | 20 | 20 | |
*Spindle
| Max. speed of spindle | r/min | 4000 (Inverter motor) 6000 (Servo motor) |
3000 (Inverter motor) 5000 (Servo motor) | 2000 |
Spindle bore | mm | 56 | 62 | 105 | |
Spindle nose |
| A2-5 | A2-5 | A2-8 | |
Hydraulic chuck |
| 6"(8") | 8" | 12" | |
*Turret
| Number of tools |
| 8Hydro. | 8Hydro. | 12Hydro. |
Outside dia. of cutting tool shank | mm | 20x20 | 25×25 | 25×25 | |
Inner dia. of cutting tool shank | mm | 25 | 40 | 40 | |
*Tailstock
| Tailstock sleeve dia. | mm | 63 | 63 | 100 |
Tailstock sleeve travel | mm | 100 | 115 | 210 | |
Taper hole of tailstock quill |
| M.T.No.4 | M.T.No.4 | M.T.No.6 | |
*Other | Min. Input | mm | 0.001 | 0.001 | 0.001 |
Main motor | kw | 5.5, 5.5/7.5 | 7.5, 7.5/11 | 15 | |
Bed structure |
| 60° Slant bed | 30° Slant bed | ||
Overall dimensions(L×W×H) | mm | 2435×1270×1660 | 1950×1650×1680 | 3375×2250×1965 | |
Net weight | kg | 2700 | 3400 | 5400 | |
| |||||
CNC Controller | Alternatives |
| FANUC 0i mate TD ; GSK988T | ||
*** Stanard:
FANUC 0i mate TD controller, FANUC servo feed motor, NSK bearings, 8'' Hydraulic solid chuck, 8 station hydraulic tool turret, Manual tailstock, Coolant system, Auto.Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc
***Optional:
Hydraulic hollow chuck, Hydraulic tailstock, Auto.chip conveyor & bucket, Tool measuring unit.
