CNC VERTICAL LATHE

Name: CNC VERTICAL LATHE
Brand: TIMAC
SKU: 140795958
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

CNC or Not:

CNC

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port.

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

CNC or Not CNC

Brand Name TIMAC

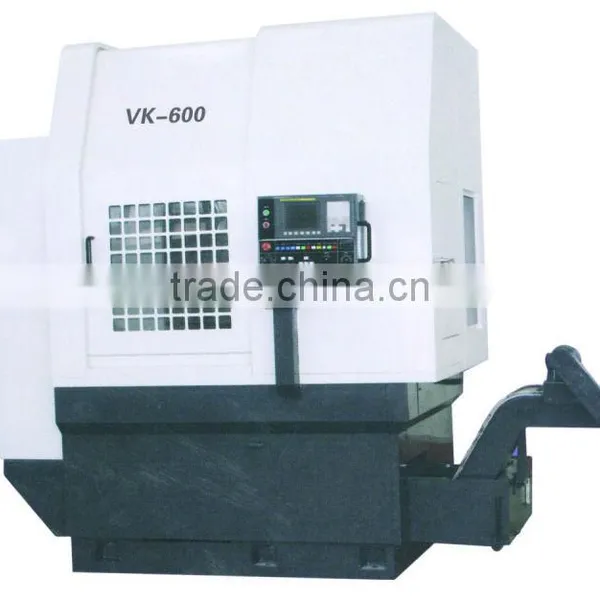

Model Number VK-600

Specifications

Compact structure, rigid spindle component and goog for heavy cutting

1. Easy to chuck and remove, workpiece roundness and other precision are ensured;

2. The turret on the slide moves along longitudinal or cross rails;

3. There are three cross rails to support the slide;

4. Ball screws and linear rails are used to ensure smooth feed and high precision;

5. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation;

6. Machine totally sealed guard structure.

Model	Unit	VK-600
Swing over bed	mm	800
Max.turning diameter	mm	600
Max.turning height	mm	600
Speed range	r/min	45-1000
Speed nose		A2-11
Spindle bearing diameter(front)	mm	160
Stroke of X-axis	mm	50-500
Stroke of Z-axis	mm	650
Rapid speed of X-axis	m/min	12
Rapid speed of Z-axis	m/min	12
Accuracy of positioning X/Z-axis	mm	0.018/0.02
Repeat location accuracy X/Z-axis	mm	0.006/0.01
Type of tool post		Vertical 6-position
Shank external cutting tool	mm	32×32
Boring tool	mm	φ32,φ40,φ50
Main motor	kw	15
Motor of cooling pump	kw	1.1
Overall dimensions:L	mm	3340
Overall dimensions:W	mm	2630
Overall dimensions:H	mm	3060
Net weight	kg	12000
