Specifications
1. Flat bed type cnc lathe2. Swing dia. 400mm
3. Spindle bore 52mm
4. FANUC or GSK CNC controller
5. 500/750/1000mm length

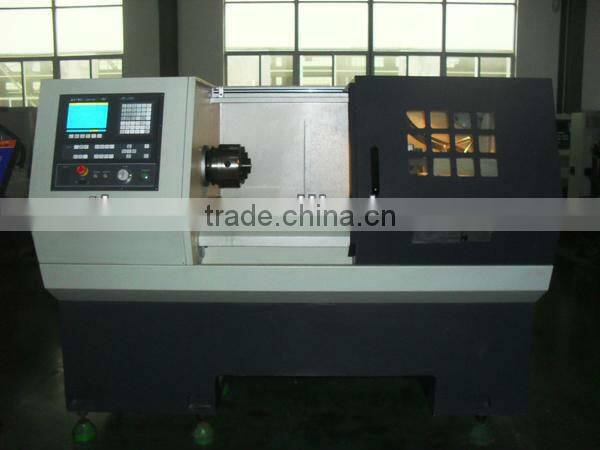

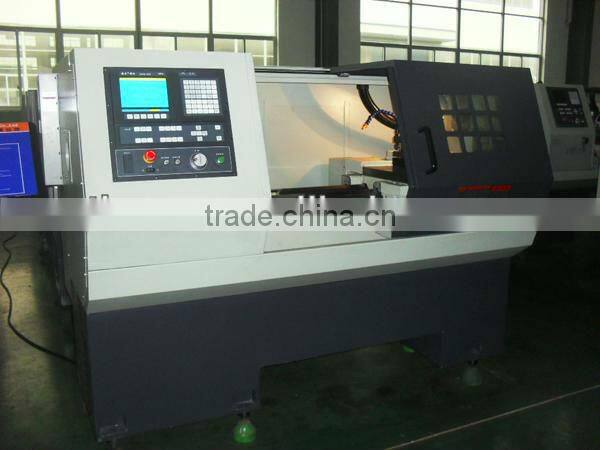

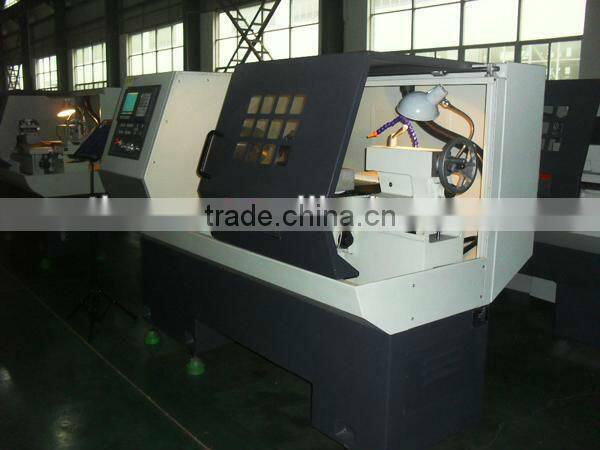

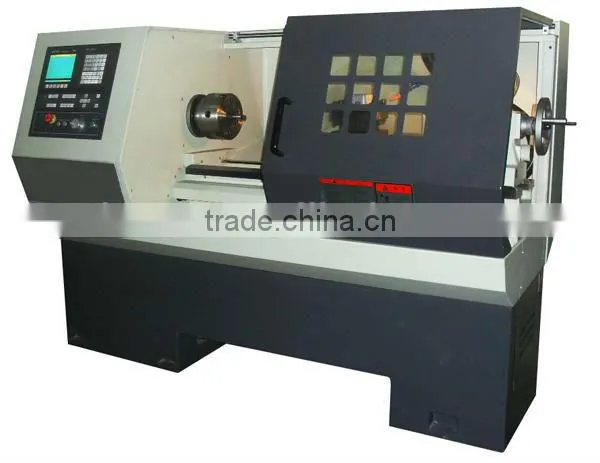

FLAT BED TYPE CNC LATHE
Features:
1. The machine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews .
3. Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected.
4. The post is located on precision contrite gears with a high repeated positioning accuracy.
5. Both chuck and tailstock are supplied with hydraulic or manual type.
6. The surface of the guideways is supersonic frequency hardened and precision ground with long service life.
7. The spindle system is high in the rigidity and accuracy.
8. An inverter is used to realize variable speed.
| Specification | Unit | CK-300S | CK-360S | CK-400S |
| Max. swing dia. over bed | mm | 300 | 360 | 400 |
| Max. swing dia. over carriage | mm | 135/100 | 180/100 | 225/150 |
| Center distance | mm | 500 | 500/750/1000 | |
| Max. turning length | mm | 460 | 450/700/950 | |
| Spindle nose | D4 | C5 | C6 | |
| Spindle bore | mm | 38 | 40 | 52 |
| Spindel taper | MT.No.5 | MT.No.5 | MT.No.6 | |
| Steps of spindle speed | Variable | Variable | Variable | |
| Range of spindle speed | rpm | 200~3500 | 200~2800 | |
| Rapid feed for axis Z | m/min | 10 | ||
| Rapid feed for axis X | m/min | 8 | ||
| Max. travel of axis Z | mm | 460 | 490/740/990 | |
| Max. travel of axis X | mm | 180/270 | 215/300 | |
| Min. input | mm | 0.001 | ||
| Tool post stations | 4/ 6/gang type | |||
| Tool section | mm | 16x16 | 20x20 | |
| Tailstock sleeve diameter | mm | 50 | 60 | |
| Tailstock sleeve taper | MT.No.3 | MT.No.4 | ||
| Tailstock sleeve travel | mm | 130 | 120 | |
| X/Z motor torque | Nm | 3.6/4.7 | 3.6/4.7 | |
| Main motor power | kw | 3 | 3.7 | 3.7(5.5) |
| Cooling pump power | w | 75 | ||
| Overall dimension(L×W×H) | mm | 1500x945x1380 | 1870/2120/2370x1200x1415 | |
| Net weight | kg | 1100 | 1500/1700/1900 | 1600/1800/2000 |
Standard Accessories: GSK980TDb CNC controller, FANUC servo feed motor, Inverter main motor, 3 jaw chuck, 4 station electric tool post, Coolant supply system, Auto. Lubrication unit, Lighting unit, General tools, Operation and maintenance manuals (English edition), etc.
Optional Accessories: Other brand CNC controller(FANUC 0i mate TD controller), 6 stations electric tool post, Gang type tool post, Hydraulic solid chuck, Hydraulic hollow chuck, Hydraulic tailstock.
