CNC Turning and Milling Machining Centre

Name: CNC Turning and Milling Machining Centre
Brand: TIMAC
SKU: 140795862
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

Brand Name TIMAC

Model Number CX-2030

Voltage 380V/50Hz

Power(W) 16.32kw

Dimension(L*W*H) 2300*2200*2300mm

Weight 4200kg

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Turning and Milling Machining Centre

CX2030

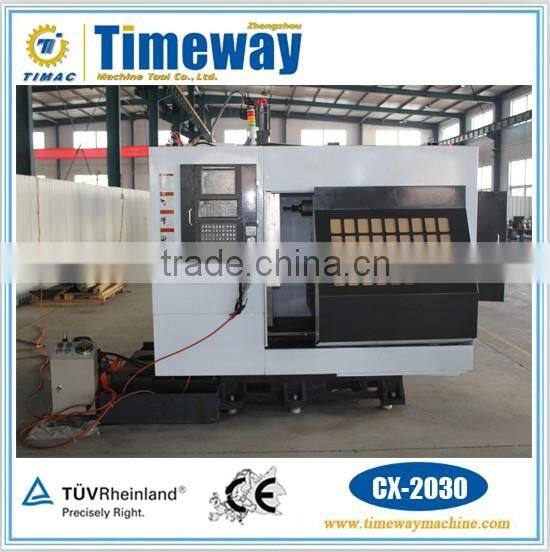

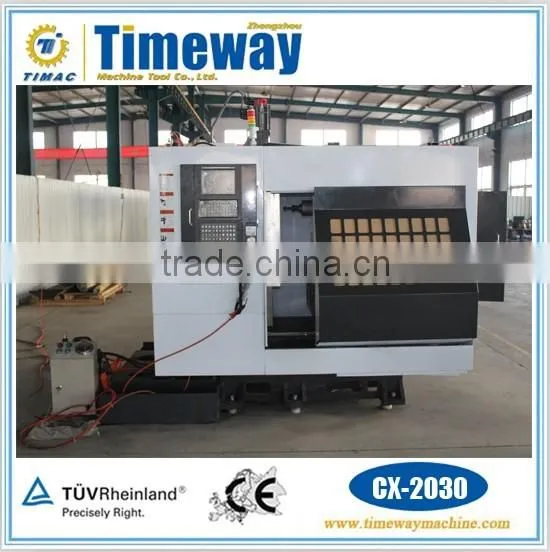

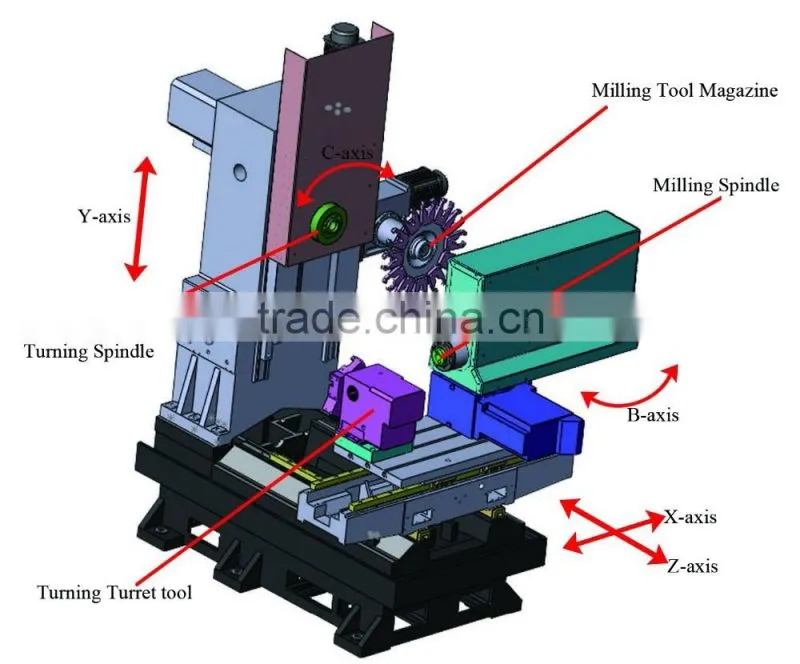

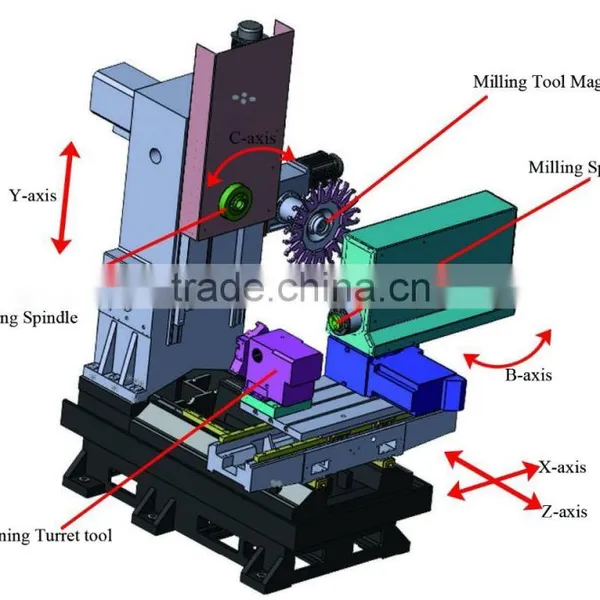

Main Outlook

Specifications List

Technical Parameter

Specification		Unit	CX-2030
Capacity	Chuck diameter	mm	200
Capacity	Max. length of workpiece	mm	300
Turning spindle	Spindle speed	rpm	10-5000
	Spindle min. indexing unit	°	0.001°
	Spindle bore diameter	mm	52
Milling spindle	Spindle taper		BT30
	Spindle speed range	rpm	100-8000
	Max. tapping diameter	mm	M16
	Max. drilling diameter	mm	25
	B-axis dividing	°	0.001°
	B-axis speed	rpm	25
	B-axis swiveling angle	°	120°
Turning tool turret	Number of tools	stations	8
Turning tool turret	Driven type		Servo motor
Milling tool magazine	Capacity	T	20
Milling tool magazine	Type		Disc-type
Power	Turning main motor power	kw	5.5
	Milling main motor power	kw	3.7
	Y-axis servo motor power	kw	2
	X/Z-axis servo motor power	kw	2
	B-axis servo motor power	kw	2
	Power of hydraulic station	kw	0.75
	Power of cooling system	kw	0.22
	Power of chip conveyor	kw	0.125
	Power of lubricating system	w	25
CNC system	Model		SIEMENS 828D
	Number of controlled axis/linkage axis	axis	6/4
	Min. setting unit	mm	0.001
	Rapid feed speed	m/min	30
	Size of screen	"	10"
Others	Power capacity	Kva	15
	Machine size(LWH)	mm	230022002300
	Air pressure	Mpa	0.6
	Machine weight	kg	4200
