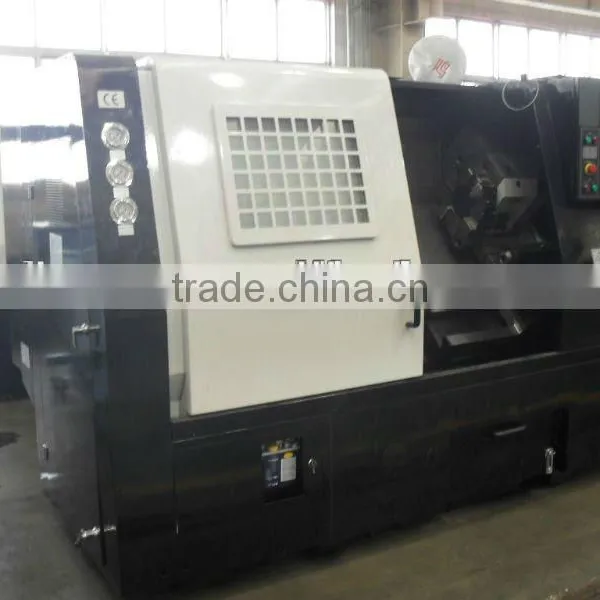

Full Function CNC Lathe/Slant Bed Type CNC Lathe/Universal CNC Lathe

Full Function CNC Lathe/Slant Bed Type CNC Lathe/Universal CNC Lathe thumbnail-1
Full Function CNC Lathe/Slant Bed Type CNC Lathe/Universal CNC Lathe photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Turning Center
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Turning Center
CNC or Not CNC
Automatic Grade Automatic
Place of Origin Henan, China
Brand Name TIMAC
Model Number AK-10 AK-15 AK-15B AK-15M
Voltage As request
Certification CE,ISO Standard
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Universal CNC lathe machine
2. Semi-closed loop CNC machine
3. CNC turning center with C axis

Specification Unit AK-10 AK-15 AK-15B AK-15M
Capacities Swing over bed mm 360 440
Max. turning dia. mm 300 300 320 300
Max. turning dia. Over carriage mm 170 255 220 220
Max. turning length mm 500/750 450 500/750 450
Distance between centers mm 600/850 600 600/850 600
Max. bar capacity mm 38 52
Travel and feed X-axis travel mm 170 180 190 180
Z-axis travle mm 510/760 480 510/760 510
Rapid traverse (x- and z- axis) m/min 18/20
Cutting feed (x- and z- axis ) mm/min 5000
Hand feed (x- and z- axis ) mm/min 1260
Spindle Spindle speed rpm 50-5000 50-4500
Spindle nose   A2-5 A2-6

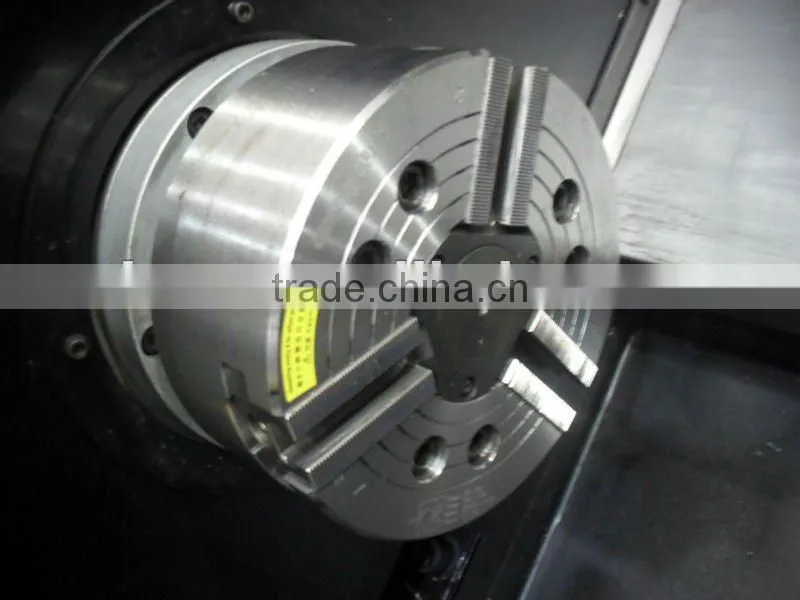

Size of chuck inch 6" 8"
Spindle front end bearing (dia) mm 80 100
Spindle bole (dia) mm 50 62
Turret Number of stations   8
Indexing time s 0.58
Tool shank size mm 25×25
Boring bar shank dia. mm 32 40
Motor Main spindle motor kw 7.5/11   9/11
X-axis servo motor kw 1.2 1.6
Z-axis servo motor kw 1.8 3 1.6 3

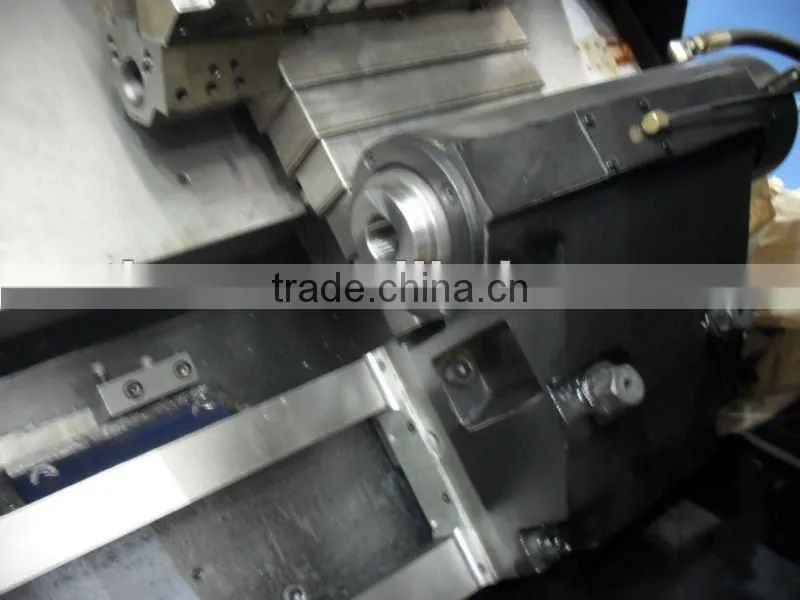

Tailstock Max. travel mm 430/680 460 430/680 460
Quill dia. mm 80
Quill travel mm 100 130 100 130
Quill taper hole   MT-4
Others Coolant capacity L 120 200 120 200
Power kw 20 25
Machine weight kg 3500/4000 4500 4500/5000 4500
Machine height mm 1700 1650 1820 1650
Floor space (L×W) mm 2255/2505×1460 2270×1470 2255×1460 2270×1470



Standard accessories:

FANUC 0i controlling system, Coolant system, Hydraulic system, Standard worklight, Chip splash guard complete, Operation light, Hydraulic dead hole chuck, Drum type turret, Manual tailstock, C-axis function (M series), Powered turret (M series), Finger chuck (M series), One set of tool kits, Technical documents.

Optional accessories:

Chip conveyor, Chip bucket, Tool setter, Hydraulic thru hole chuck, Programming tailstock, Automatic door, Hydraulic steady rest.
