Full-Function Horizontal CNC Turning Center With Milling

Name: Full-Function Horizontal CNC Turning Center With Milling
Brand: TIMAC
SKU: 140795860
Availability: InStock

US$ 10,000 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Turning Center

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 20

Brand Name TIMAC

Model Number CX-224

Voltage 380v 50hz

Power(W) 8.895kw

Dimension(L*W*H) 1740*1050*1970mm

Weight 1700kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

Full-Function Horizontal CNC Turning Center With Milling

CX-224

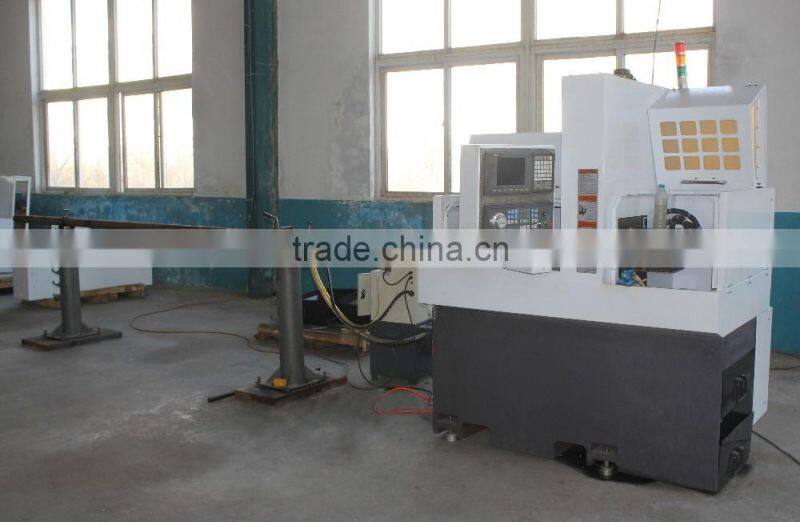

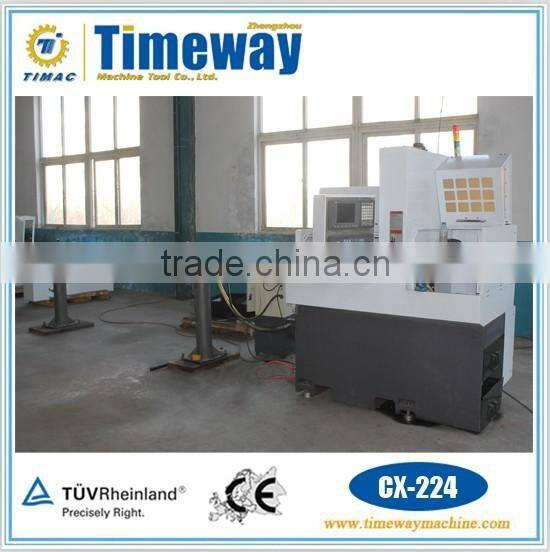

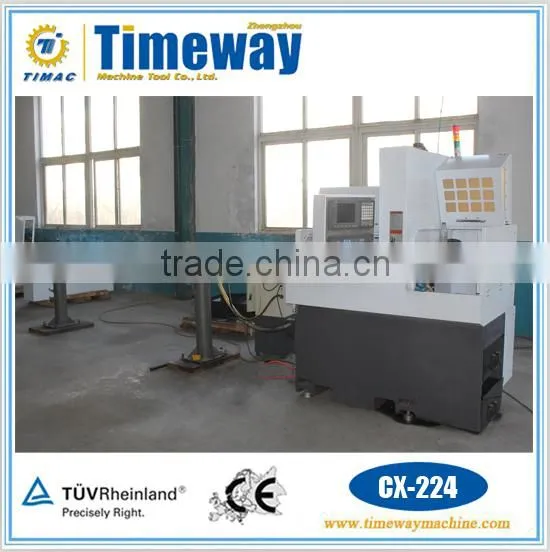

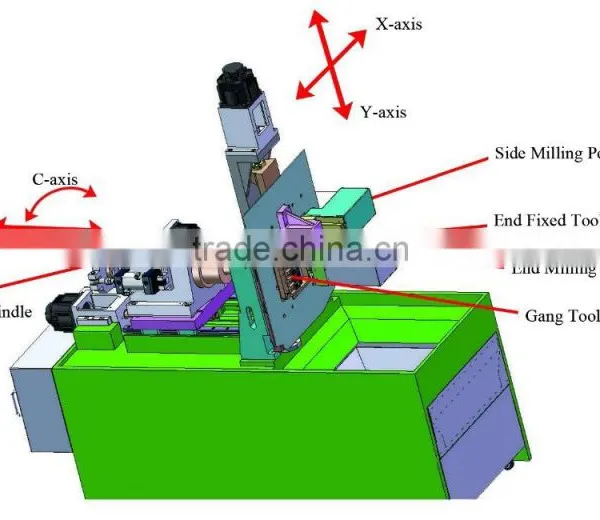

Main Outlook

Specifications List

Specification		Unit	CX-224
Capacity	Diameter range of workpiece	mm	3-20
	Max. processing length of workpiece	mm	240
	Max. drilling diameter	mm	13
	Max. tapping diameter	mm	M8
	Max. drilling depth	mm	50
	Max. drilling diameter of power head	mm	13
Spindle	Spindle speed	rpm	10-5000
	Spindle min.indexing unit	°	0.001°
	Spindle bore diameter	mm	21
Tool	Number of gang tool	T	6
	Side milling power head tool		2*ER20
	Side milling power head speed range	rpm	100-6000
	End milling power head tool		2*ER20
	End milling power head speed range	rpm	100-6000
	End surface fixed holder		4*ER20
Motor	Spindle power	kw	4
	X-axis servo motor rated power	kw	1.3
	Y/Z-axis servo motor rated power	kw	1.3
	Side milling power head rated power	kw	1.3
	End milling power head rated power	kw	0.75
	Cooling oil pump power	kw	0.22
	Lubricating oil pump power	w	25
CNC system	Model		KND2000TC
	Number of controlled axis/linkage axis	axis	6/4
	Min. setting unit	mm	0.001
	Rapid feed speed	m/min	30
	Size of screen	"	8"
Others	Power capacity	Kva	7
	Machine dimension(LWH)	mm	174010501970
	Air pressure	Mpa	0.4
	Machine weight	kg	1700
