Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > High Precision CNC Turning Lathe AK-15B

High Precision CNC Turning Lathe AK-15B

Name: High Precision CNC Turning Lathe AK-15B
Brand: TIMAC
SKU: 140795784
Availability: InStock

High Precision CNC Turning Lathe AK-15B thumbnail-1

High Precision CNC Turning Lathe AK-15B thumbnail-2

High Precision CNC Turning Lathe AK-15B thumbnail-3

High Precision CNC Turning Lathe AK-15B thumbnail-4

High Precision CNC Turning Lathe AK-15B thumbnail-5

High Precision CNC Turning Lathe AK-15B thumbnail-6

High Precision CNC Turning Lathe AK-15B photo-1

High Precision CNC Turning Lathe AK-15B photo-2

High Precision CNC Turning Lathe AK-15B photo-3

High Precision CNC Turning Lathe AK-15B photo-4

High Precision CNC Turning Lathe AK-15B photo-5

High Precision CNC Turning Lathe AK-15B photo-6

US$ 45,000 - 53,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 440mm

Brand Name TIMAC

Model Number AK-10, AK-15, AK-15B

Voltage As required

Power(W) 25kw

Dimension(L*W*H) 2270x1470x1650mm

Weight 4500/5000kg

Certification ISO9001; CE

Product Description

Full Function CNC Lathe

Feature:

1. Universal CNC lathe machine
2. Semi-closed loop CNC machine
3. CNC turning center with C axis
4. Slant Bed Type CNC Lathe

Parameter:

Specification	Unit	AK-10	AK-15	AK-15B
Swing over bed	mm	360	440	440
Max.turning dia	mm	300	300	320
Max.turning dia over carriage	mm	170	255	220
Max.turning length	mm	500/700/1000	450	500/750
Distance between centers	mm	600/750/1100	600	600/850
Max.bar capacity	mm	36	52	52
X-axis travel	mm	170	180	190
Z-axis travel	mm	510/760/1010	480	510/760
Rapid traverse(x-and z-axis)	m/min	18/20	18/20	18/20
Cutting feed(x-and z-axis)	mm/min	5000	5000	5000
Hand feed(x-and z-axis)	mm/min	1260	1260	1260
Spindle speed	rpm	50-5000	50-4500	50-4500
Spindle nose	mm	A2-5	A2-6	A2-6
Size of chuck	inch	6"	8"	8"
Spindle front end bearing(dia)	mm	80	100	100
Spindle bore(dia)	mm	50	62	62
Number of stations		8	8	8
Indexing time	s	0.58	0.58	0.58
Tool shank size	mm	25×25	25×25	25×25
Boring bar shank dia	mm	32	40	40
Main spindle motor	kw	7.5/11	9.0/11	9.0/11
X-axis servo motor	kw	1.2	1.6	1.6
Z-axis servo motor	kw	1.8	3	1.6
Max travel of tailstock	mm	360/610/860	460	360/610
Tailstock quill dia	mm	80	80	80
Tailstock travel	mm	100	130	100
Tailstock quill taper hole		MT-4	MT-4	MT-4
Power	kw	20	25	25
Machine weight	kg	3500/4000	4500	4500/5000
Machine height	mm	1700	1650	1820
Floor space		2255/2705/3180×1460	2270×1470	2255/2710×1460
X-axis positioning accruacy R	mm	0.01	0.01	0.01
X-axis positioning accruacy B	mm	0.012	0.012	0.012
X-axis positioning accruacy A	mm	0.025	0.025	0.025
Z-axis positioning accruacy R	mm	0.007	0.007	0.007
Z-axis positioning accruacy B	mm	0.006	0.006	0.006
Z-axis positioning accruacy A	mm	0.016	0.016	0.016

*** Standard accessories:

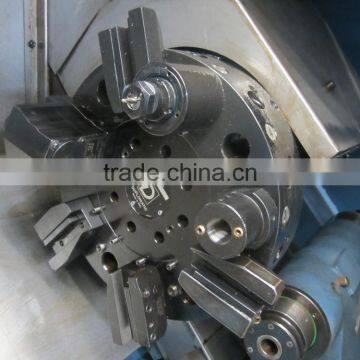

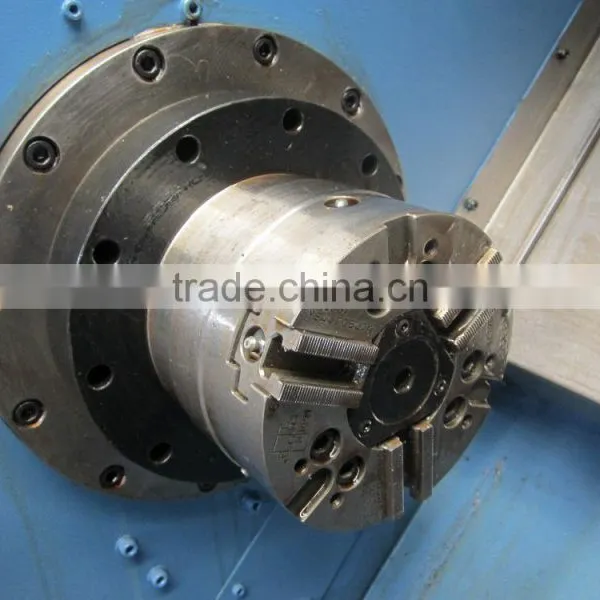

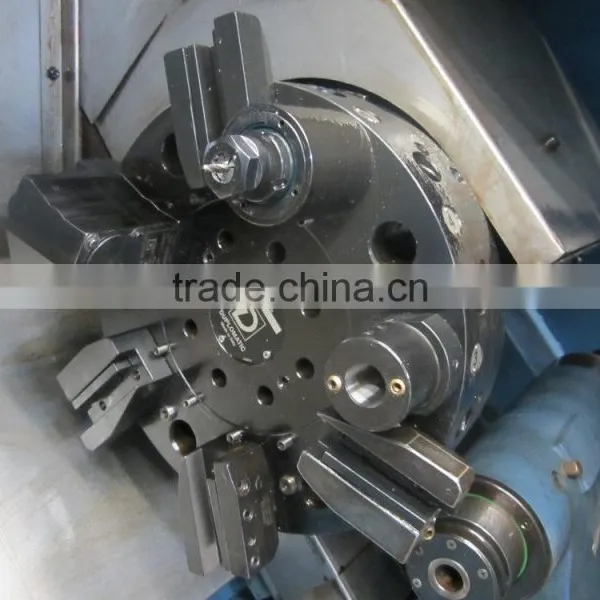

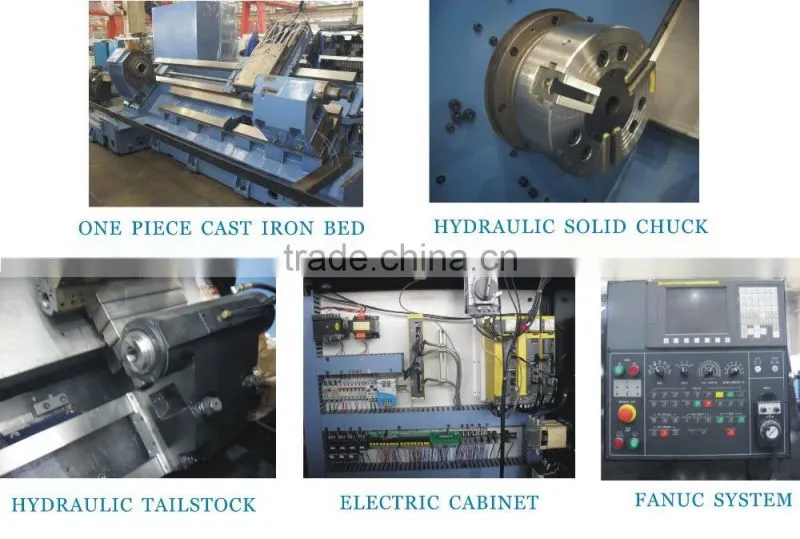

FANUC 0i TD CNC system, Coolant system, Hydraulic system, Standard worklight, Chip splash guard complete, Operation light, Hydraulic slide chuck, Drum type turret, Manual tailstock, C-axis function (M series), Powered turret (M series), Finger chuck (M series), One set of tool kits, Technical documents.

*** Optional accessories:

Chip conveyor, Chip bucket, Tool setter, Hydraulic thru hole chuck, Programming tailstock, Automatic door, Hydraulic steady rest.

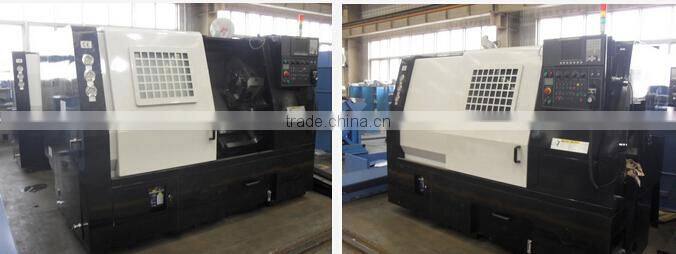

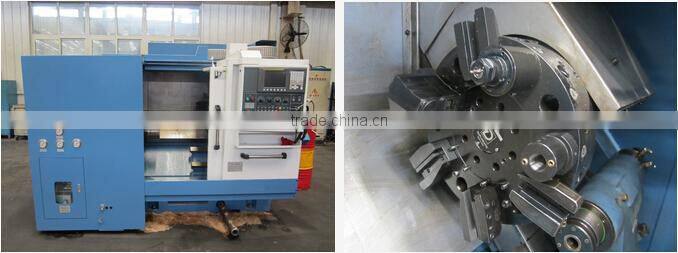

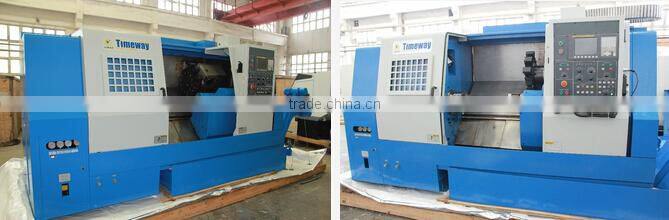

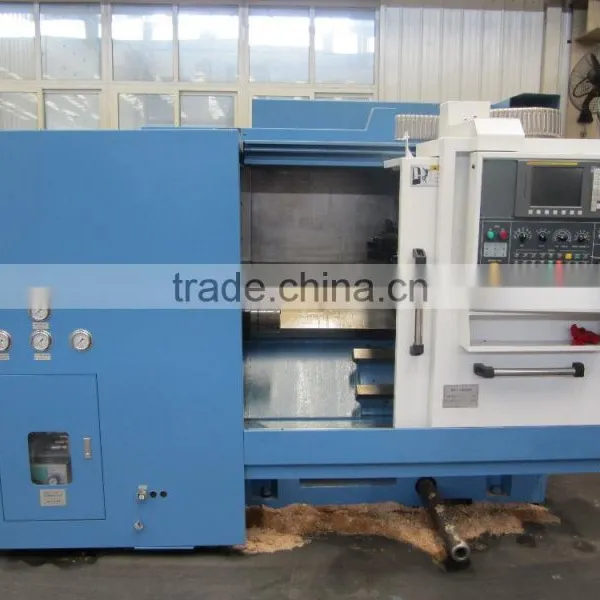

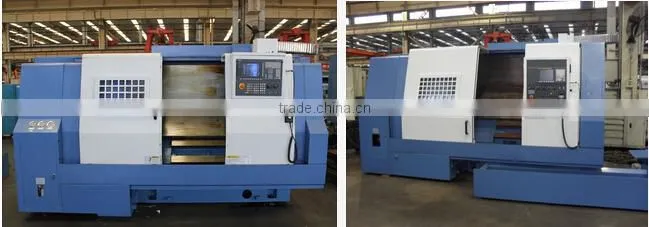

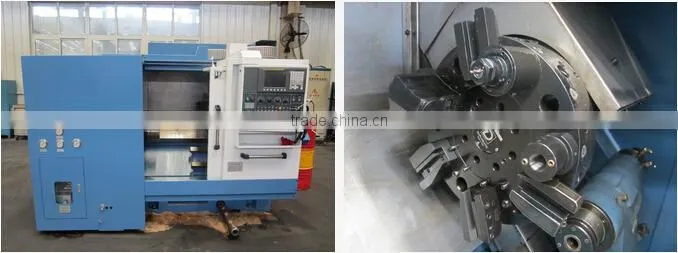

Detailed Images

* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe

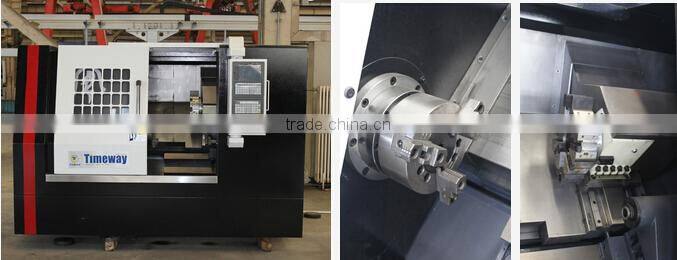

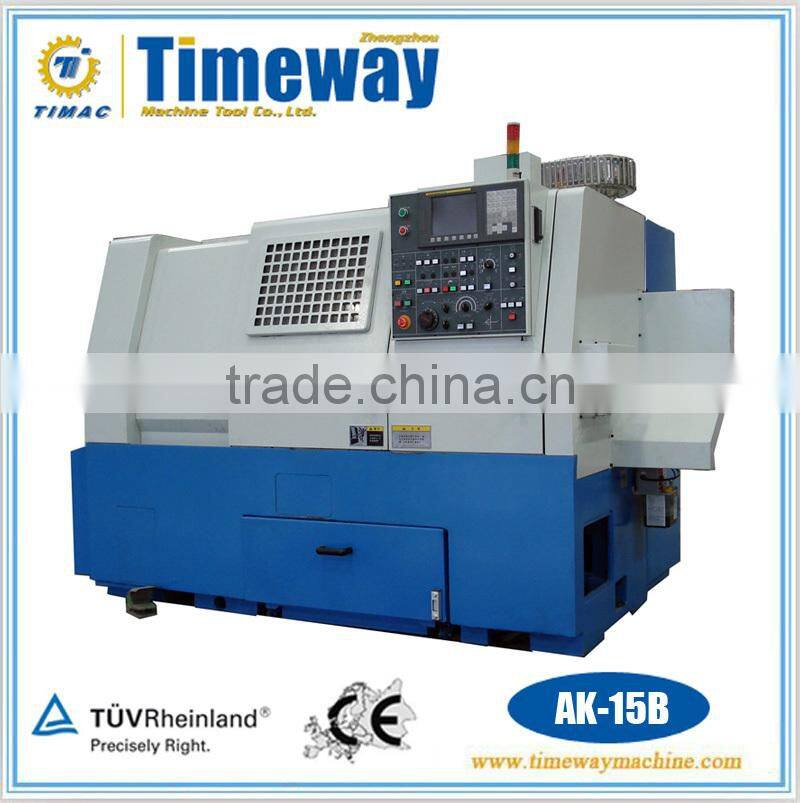

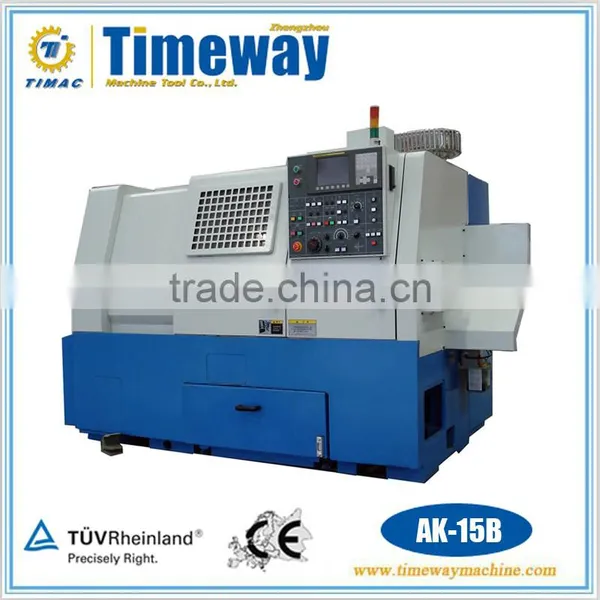

* AK-15B Series Slant Bed CNC Lathe

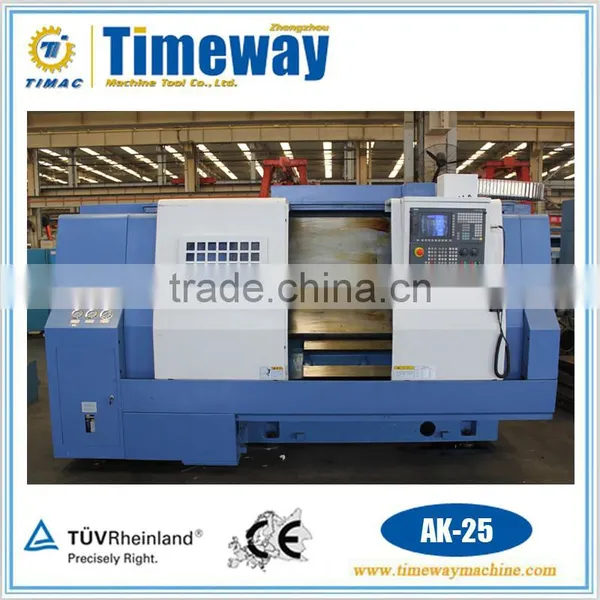

* AK-25 Series Slant Bed CNC Lathe

* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)

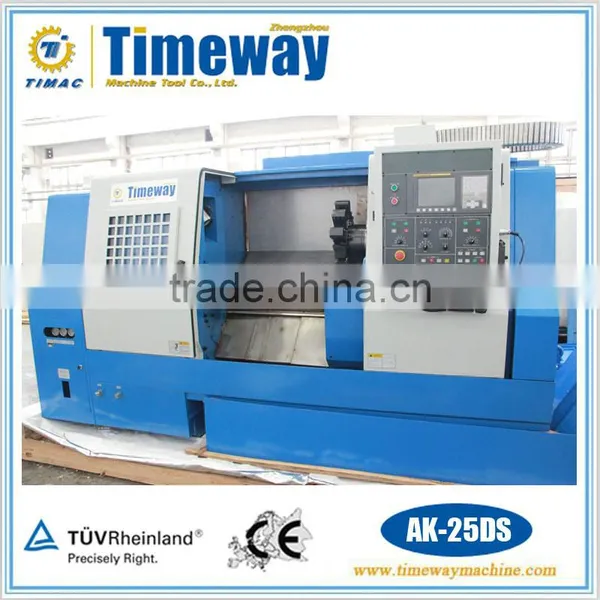

* AK-25DS Sereies Double Spindle CNC Lathe

Packaging & Shipping

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:
