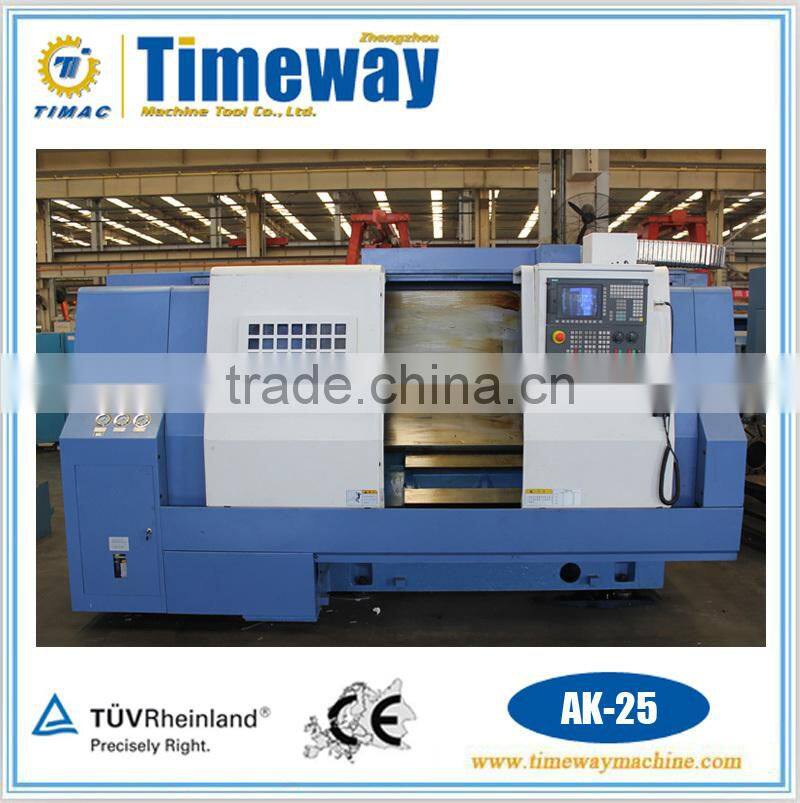

Help CenterSlant Bed CNC Lathe AK-25
Related Products
-
CNC Torno / 14" - 30'' Slant Bed CNC Lathe With SpecificationNegotiableMOQ: 1 Set -
Slant Bed CNC Lathe KD-25AUS$ 10,000 - 35,000MOQ: 1 Set
-
Slant Bed CNC Lathe KD-20AUS$ 10,000 - 35,000MOQ: 1 Set
-
CNC Vertical Lathe / CNC Lathe Machine With Specification For SaleNegotiableMOQ: 1 Set
-
16" Swing Slant Bed CNC Lathe KD-20AUS$ 10,000 - 35,000MOQ: 1 Set
Full Function CNC Lathe
Feature:
1. Universal CNC lathe machine
2. Semi-closed loop CNC machine
3. CNC turning center with C axis
4. Slant Bed Type CNC Lathe
Parameter:
Specification | Unit | AK-25 | AK-35 |
Swing over bed | mm | 520 | 660 |
Max.turning dia | mm | 420 | 550 |
Max.turning dia over carriage | mm | 360 | 420 |
Max.turning length | mm | 530/905/1405/1905 | 780/1530/1890/2890 |
Distance between centers | mm | 625/1000/1500/2000 | 890/1640/2000/3000 |
Max.bar capacity | mm | 70 | 80 |
X-axis travel | mm | 230 | 305 |
Z-axis travel | mm | 590/965/1465/1965 | 855/1605/1965/2965 |
Rapid traverse(x-and z-axis) | m/min | 12.0/15 | 12.0/15 |
Cutting feed(x-and z-axis) | mm/min | 5000 | 5000 |
Hand feed(x-and z-axis) | mm/min | 1260 | 1260 |
Spindle speed | rpm | 35-3500 | 25-2500 |
Spindle nose | mm | A2-8 | A2-8 |
Size of chuck | inch | 10" | 12" |
Spindle front end bearing(dia) | mm | 130 | 160 |
Spindle bore(dia) | mm | 87 | 92 |
Number of stations |
| 12 | 12 |
Indexing time | s | 1 | 1 |
Tool shank size | mm | 25×25 | 25×25 |
Boring bar shank dia | mm | 40 | 50 |
Main spindle motor | kw | 18.5/15 | 30/22 |
X-axis servo motor | kw | 1.6 | 3 |
Z-axis servo motor | kw | 3 | 4 |
Max travel of tailstock | mm | 490/865/1365/1865 | 760/1500/1900/2900 |
Tailstock quill dia | mm | 85 | 110 |
Tailstock travel | mm | 80 | 100 |
Tailstock quill taper hole |
| MT-5 | MT-5 |
Power | kw | 30 | 46 |
Machine weight | kg | 5000/5500/6500/7500 | 8000/10000/11000/15000 |
Floor space |
| 3000/3380×1545, 4550×1630, 4960×1900 | 3620×1820, 4725×1840, 5825×1900, 7000×2200 |
X-axis positioning accruacy R | mm | 0.01 | 0.01 |
X-axis positioning accruacy B | mm | 0.012 | 0.012 |
X-axis positioning accruacy A | mm | 0.025 | 0.025 |
Z-axis positioning accruacy R | mm | 0.007 | 0.007 |
Z-axis positioning accruacy B | mm | 0.006 | 0.006 |
Z-axis positioning accruacy A | mm | 0.016 | 0.016 |
*** Standard accessories:

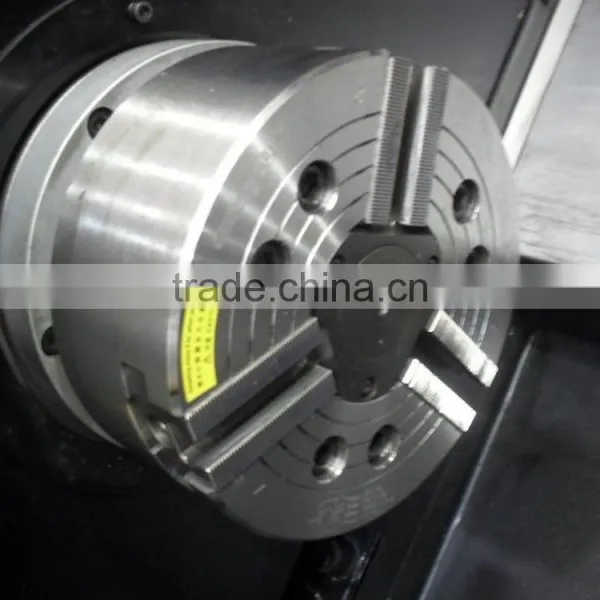

FANUC 0i TD CNC system, Coolant system, Hydraulic system, Standard worklight, Chip splash guard complete, Operation light, Hydraulic slide chuck, Drum type turret, Manual tailstock, C-axis function (M series), Powered turret (M series), Finger chuck (M series), One set of tool kits, Technical documents.
*** Optional accessories:
Chip conveyor, Chip bucket, Tool setter, Hydraulic thru hole chuck, Programming tailstock, Automatic door, Hydraulic steady rest.
* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe
* AK-15B Series Slant Bed CNC Lathe
* AK-25 Series Slant Bed CNC Lathe
* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)
* AK-25DS Sereies Double Spindle CNC Lathe
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
