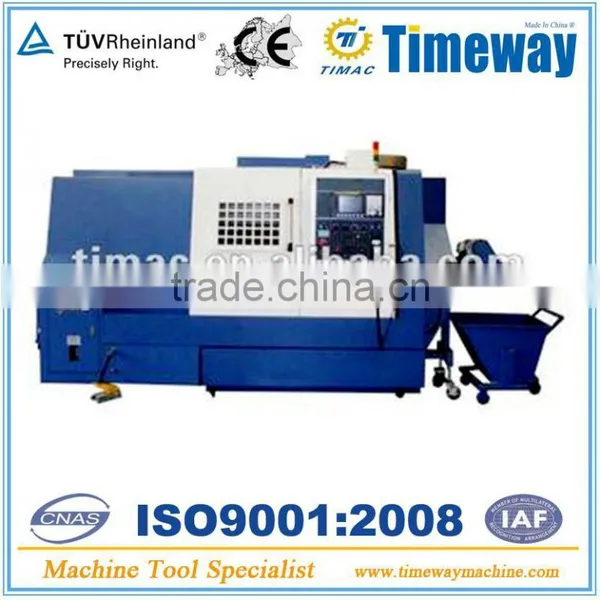

CNC Turning Center / Fanuc CNC Lathe Machine for sale
Features:
1. This CNC turning center is semi-closed loop CNC machine tools suitable to turn various complicated shaft, sleeve and disk-like work-pieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
3. Besides turning applications, the high speed and high efficiency turning center can also be used to drill and mill for various complicated work-piece machining by its X/Z/C 3-axis combined motion;
4. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
5. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and Ra0.8um for ferrous metal;
6. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
Standard Accessories:
FANUC 0i TD controller; FANUC servo main motor, FANUC servo type feeding motor for both X,Z axes;With C axis; NSK bearings; Hydraulic chuck from South Korea; Servo power tool turret from Italy;Hydraulic tailstock; Automatical lubricating unit; Cooling system; General tools; Auto. chip conveyor;
Operational manua(English edition).
Parameters:
Specification |
Unit |
AK-15 |
AK-25M |
AK-35M |
Max.swing over bed |
mm |
440 |
520 |
660 |
Max.turning dia.over bed |
mm |
300 |
420 |
550 |
Max.turning dia.over cross slide |
mm |
190 |
300 |
360 |
Max.turning length |
mm |
450 |
530/905 |
780/1530 |
Distance between centers |
mm |
600 |
625/1000 |
890/1640 |
Max.bar capacity |
mm |
52 |
72 |
80 |
X-axis travel |
mm |
180 |
230 |
305 |
Z-axis travel |
mm |
480 |
590/965 |
855/1605 |
Cutting feed(X/Z-axis) |
mm/min |
5000 |
||
Hand feed(X/Z-axis) |
mm/min |
1260 |
||
Spindle speed |
rpm |
50-4500 |
35-3500 |
25-2500 |
Spindle nose |
|
A2-6 |
A2-8 |
|
Chuck size |
|
8" |
10" |
12" |
Spindle front end bearing(dia.) |
mm |
100 |
130 |
160 |
Spindle bore(dia.) |
mm |
62 |
87 |
92 |
C-axis indexing(incremental unit) |
|
0.001 |
||
Number of stations |
|
8 |
12 |
|
Indexing time |
s |
0.58 |
0.4 |
1 |
Tool shank size |
mm |
25×25 |
||
Boring bar shank dia. |
mm |
40 |
50 |
|
Tool speed |
rpm |
40-4000 |
||
Main spindle motor |
kw |
9.0/11 |
18.5/15 |
30/22 |
X-axis servo motor |
kw |
1.6 |
3 |
|
Z-axis servo motor |
kw |
3 |
4 |
|
Tool driving motor |
kw |
A3/10000i |
||
Max. travel of tailstock |
mm |
460 |
490/865 |
760/1500 |
Dia.of tailstock quill |
mm |
80 |
85 |
110 |
Travel of tailstock |
mm |
130 |
80 |
100 |
Taper of tailstock quill |
|
MT-4 |
MT-5 |
|
Coolant capacity |
L |
200 |
200/230 |
200/250 |
Total power |
kw |
25 |
38 |
46 |
X-axis positioning accuracy |
mm |
0.025 |
||
X-axis repeatability positioning accuracy |
mm |
0.01 |
||
X-axis reverse warp |
mm |
0.012 |
||
Z-axis positioning accuracy |
mm |
0.016 |
||
Z-axis repeatability accuracy |
mm |
0.007 |
||
Z-axis reverse warp |
mm |
0.006 |
||
