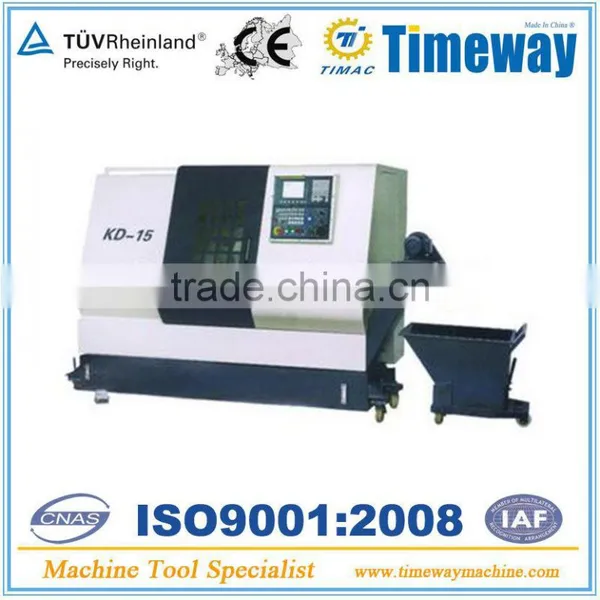

14" - 30'' Slant Bed CNC Lathe With Specification At Low Price
Features:
1. The machine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews and high precision linear guideways,
increasing the feeding speed and accuracy.
3. Slant structure bed increasing the processing accuracy and easier for chip removal.
4. Equipped with both hydraulic chuck and tool turret increasing the working efficiency and convenient.
5. The spindle system is high in the rigidity and accuracy.
Standard Accessories:
FANUC 0i mate TD controller, FANUC servo feed motor, NSK bearings, 8"hydraulic solid chuck, 8 station hydraulic tool turret, Manual tailstock, Coolant system, Automatic lubrication unit, Lighting unit, General tools, Operation and maintenance manuals(English edition), ect.
Optional Accessories:
Hydraulic hollow chuck, Hydraulic tailstock, Auto. chip conveyor & bucket, tool measuring unit.
Parameters :
Model | Unit | KD-15 | KD-20A | KD-25A | KD-40A |
Max. Swing over bed | mm | 360 | 410 | 500 | 750 |
Max. Cutting diameter for disc parts | mm | 250 | 360 | 300 | 500 |
Max. Cutting diameter for axle parts | mm | 150 | 200 | 250 | 350 |
Max. Turning length | mm | 300 | 350 | 400 | 870 |
Max. Cross travel (X) | mm | 150 | 180 | 180 | 370 |
Max. Longitudinal travel (Z) | mm | 320 | 420 | 500 | 1050 |
Rapid feed for Axis X | m/min | 12/10 | 9 | 10 | 10 |
Rapid feed for Axis Z | m/min | 20/16 | 20 | 20 | 20 |
Max. Speed of spindle | r/min | 6000/ 4000 | 4000/ 3000 | 3000 | 100-2000 |
Spindle bore | mm | 40 | 63 | 62 | 105 |
Hydraulic chuck |
| 6" | 6"/8" | 8" | 12" |
Number of tools |
| 8 | 8 | 8 | 12 |
Outside diameter of cutting tool shank | mm | 20×20 | 20×20 | 25×25 | 25×25 |
Internal diameter of cutting tool shank | mm | 25 | 25 | 32 | 32 |
Min. input | mm | 0.001 | |||
Repeatability (X/Z) | mm | 0.005/0.006 | |||
Bed structure |
| 45º slant bed Integrated with stand | 60º slant bed Integrated with stand | 30º slant bed Integrated with stand | 30º slant bed integrated with stand |
Guide ways X&Z |
| precision linear ball rail
| |||
Main motor power | kw | 5.5/7.5 | 5.5 | 7.5 | 15 |
Capacity of coolant | L | 100 | 100 | 150 | 150 |
Overall dimension (L× W× H) | mm | 2700×1460× 1680 | 2435×1270× 1660 | 1950×1650× 1680 | 3375×2250× 1965 |
Net weight | kg | 3000 | 3500 | 3400 | 5400 |
