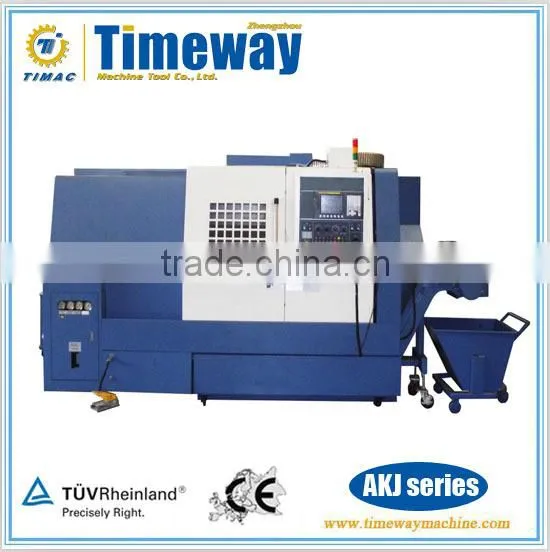

Economical FANUC CNC Lathe , Full Function CNC Lathe
Features :
1.These lathe are semi-closed loop CNC machine tools suitable to turn various complicated shaft, sleeve,
and disk-like workpiece, such as turning of internal and external cylindrical, concial and other
circumgryation surface as well as various metric inch, modular and diametric pitch threads.
2.They can also be used for oil grooves and keyways broaching, end facing, grooving and chamfering etc.
3.The unique construction developed using FEA techniques to provide maximum stiffness under the
heaviest cutting conditions.
4.The machining accuracy is about IT5 IT6, and the surface roughness is about Ra0.4μm for nonferrous
metal cutting and Ra0.8μm for ferrous metal's.
5.As universal CNC lathes, they are especially suitable for the machining of high precision workpieces, and
also widely used to machining parts in batches in the fields of automobile, motorcycle, railroad, aero-craft,
home appliance, bearing, hardware, etc.
Standard Accessories:
CNC controller: FANUC 0imate TD, FANUC servo feed motor, Servo main motor, NSK bearings,
Rolling linear guideway, 8 station hydraulic tool post, Solid hydraulic chuck, Hydraulic tailstock,
Auto. lubrication unit, Coolant system, Working light, General tools, Operator manual (English edition).
Parameter :
Model | AKJ-15 | AKJ-25 |
Max. swing dia. over bed | Φ400mm | Φ500mm |
Max. Cutting diameter (disc/axle) | Φ360 / Φ200mm | Φ 370 / Φ260mm |
Distance between two centers | 600/850/1100/1500mm | 600/1100/1500/2000mm |
Max.turning length | 500/750/1000/1400mm | 500/1000/1400/1900mm |
Spindle bore | Φ 50mm | Φ 62mm |
Spindle nose | A2-5 | A2-6 |
Spindle speed and range | 3000r.p.m | 2500r.p.m |
Chuck diameter | 6” | 8” |
Max. cross travel (X-axis) | 170mm | 210mm |
Rapid feed for X/Z-axis | 12000/16000mm/min | |
Min. setting unit | 0.001mm | |
Tool post stations | 8 station (Electric) | |
Section of tool shank | 25×25mm | |
Tailstock sleeve diameter | Φ80mm | Φ85mm |
Tailstock sleeve travel | 100mm | 100mm |
Tailstock sleeve taper | MT4 | MT5 |
Main motor (Inverter) | 7.5 kw | 15 kw |
