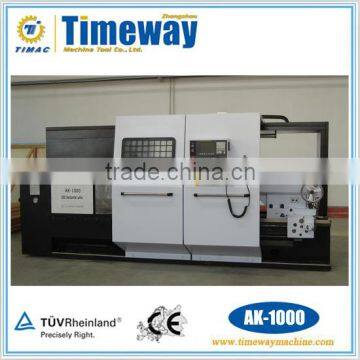

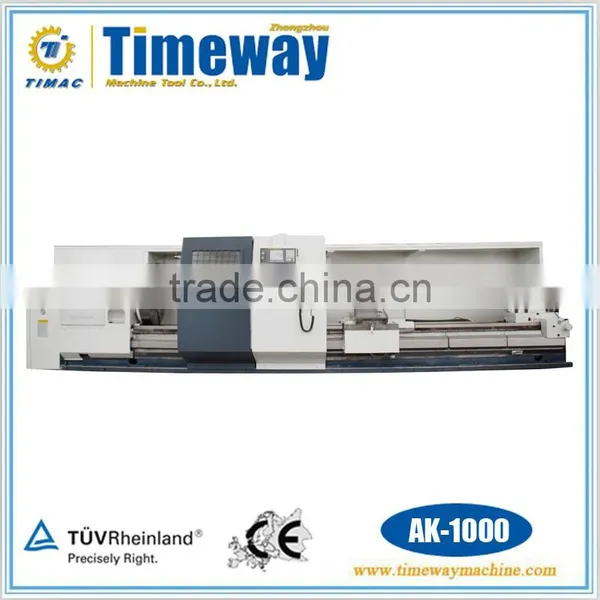

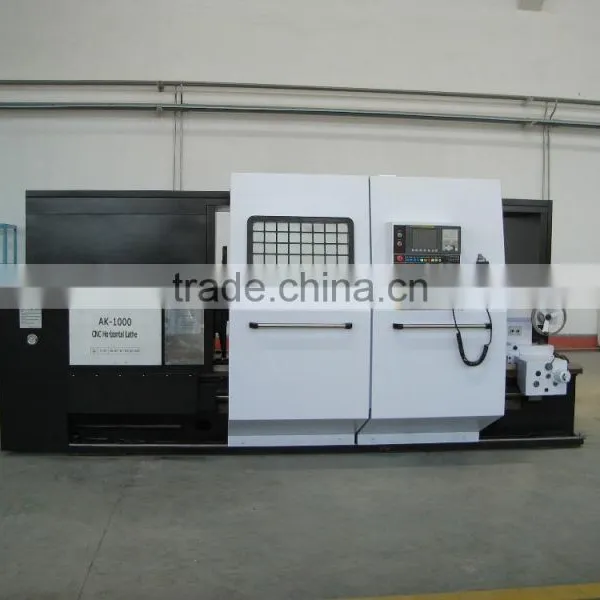

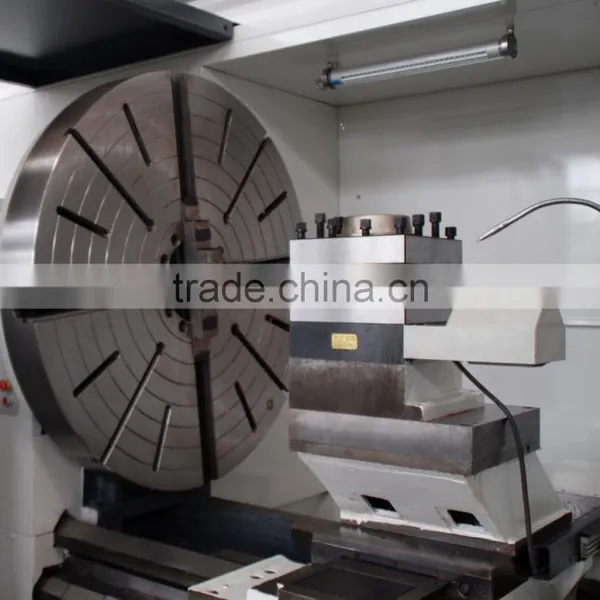

Large CNC Horizontal Turning Machine(CNC Lathe)

Name: Large CNC Horizontal Turning Machine(CNC Lathe)
Brand: TIMAC
SKU: 140795782
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 1000mm

Brand Name TIMAC

Model Number AK-1000

Voltage As required

Power(W) 22kw

Dimension(L*W*H) 4500x2435x2150mm

Weight 9000kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

CNC Horizontal Industry Lathe

AK-1000 AK-1250 AK-1600

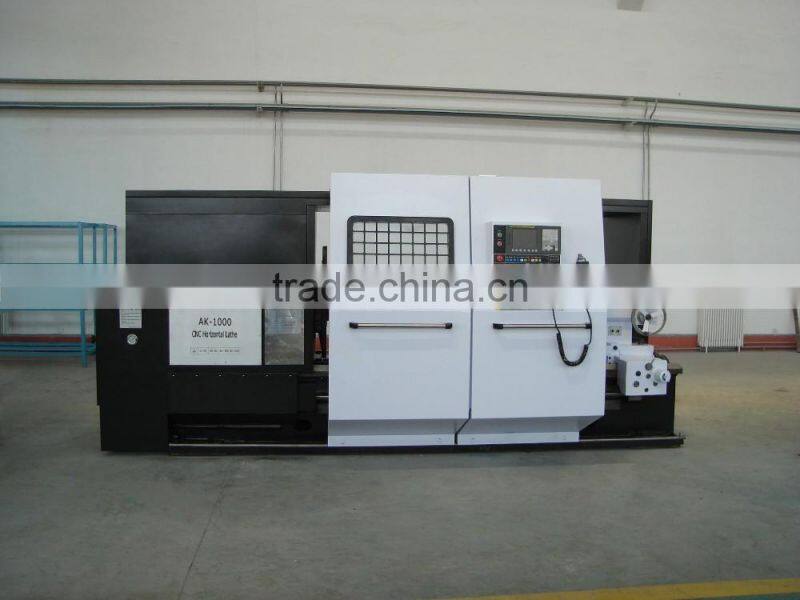

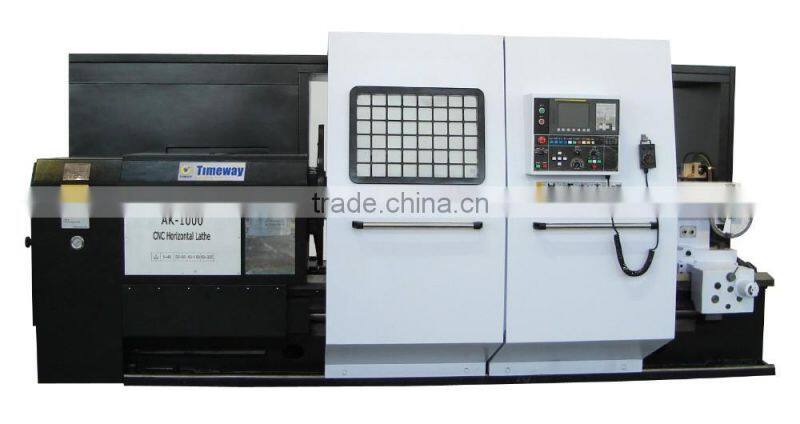

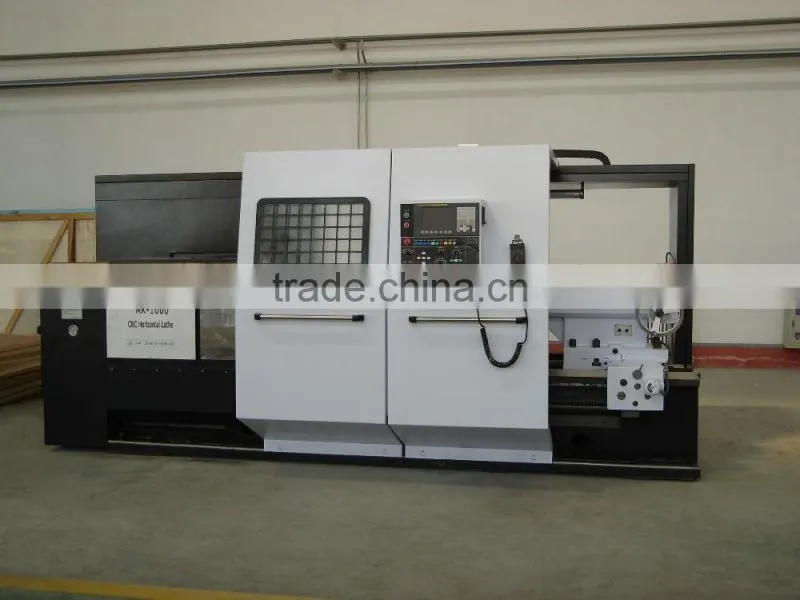

Main Outlook

Product Description

Features:

The series are economical large type CNC lathes.
Spindle speeds of AK series are changed by frequency converter in 4 hydraulic gear-shifts.

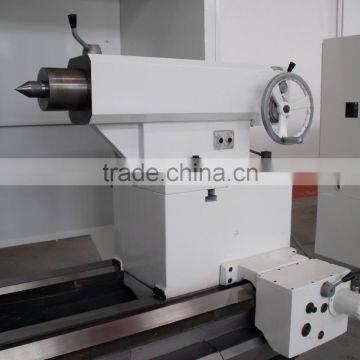

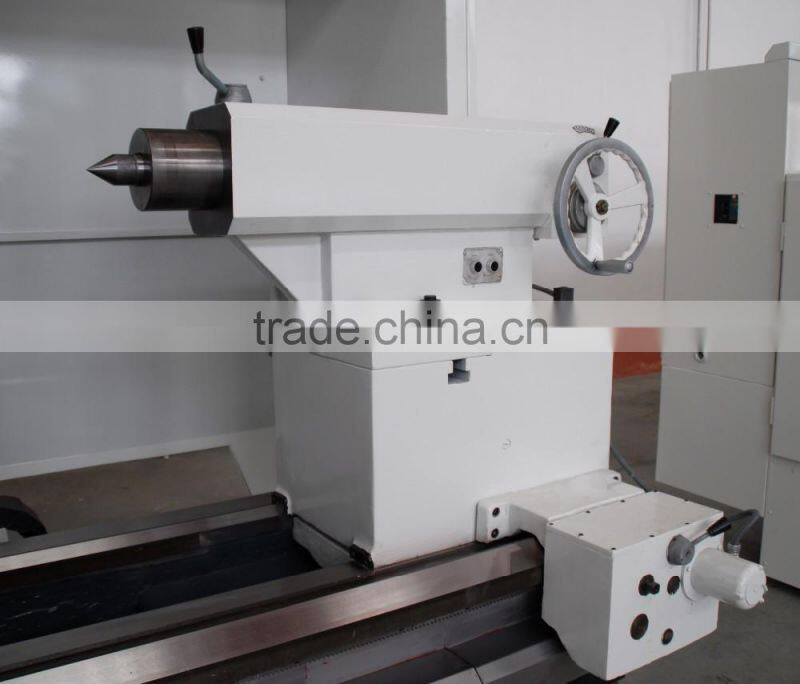

AC servo motor is adopted in feeding system, and the tailstock is moved electrically.
They are ideal equipment for large and middle sized complicated workpieces precision machining in batches.

Standard Configurations:

Technical Parameter:

Specification	Unit	AK-1000	AK-1250	AK-1600
Swing over bed	mm	1000	1250	1640
Swing over carriage	mm	630	880	1250
Maximum length of workpiece	mm	1500/3000/5000/6000/8000/10000/12000/14000/16000/18000
Maximum turning length	mm	1230/2730/4730/5730/7730/9730/11730/13730/15730/17730
Span of guideway	mm	755	755	755
Spindle nose		A2-15	A2-15	A2-15

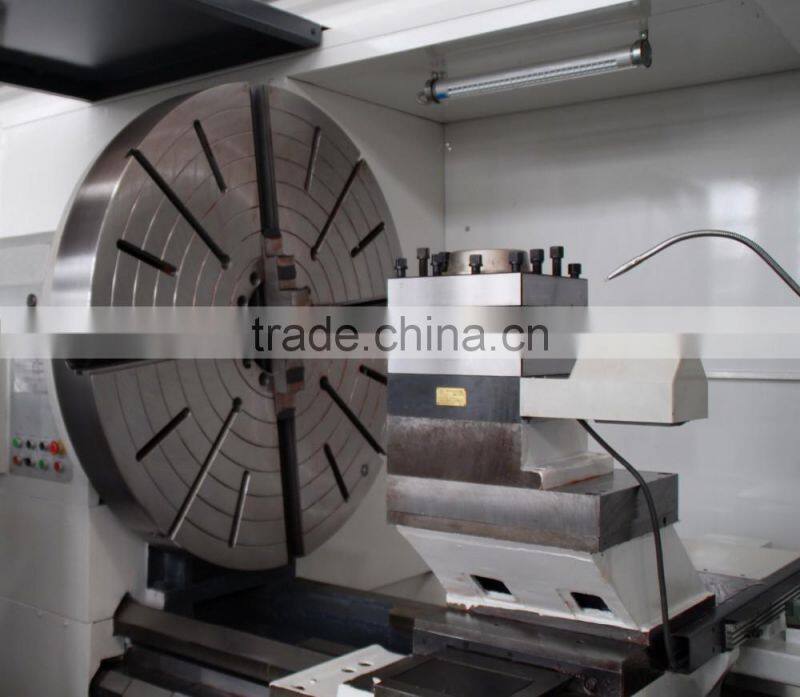

Chuck(manual)	mm	4-JAW CHUCK 1000MM	4-JAW CHUCK 1000MM	4-JAW CHUCK 1000MM
Spindle bore	mm	130	130	130
Taper hole of spindle		1:20/140	1:20/140	1:20/140
Spindle speed and range	rpm	auto 4 gear steps,stepless speed change in step. 3.15-315
Spindle speed and range	rpm
Center height from bed	mm	500	625	820
Min.feed increment of X-/Z-axis	mm	0.001/0.001	0.001/0.001	0.001/0.001
Rapid speeds of X-/Z-axis	mm/min	3000/6000	3000/6000	3000/6000
Max.travel of x-axis	mm	520	580	630
Tool-post working position		Vertical 4-position electrical turret
Indexing time	s	2.6(V4)	2.6(V4)	2.6(V4)
Indexing repeatility	mm	0.01	0.01	0.01
Section of tool shank	mm	40	40	40
Diameter of tailstock quill	mm	160	160	160
Travel of tailstock quill	mm	300	300	300
Taper hole of tailstock quill		Morse 6	Morse 6	Morse 6
Workpiece accuracy		IT6-IT7	IT6-IT7	IT6-IT7
Surface roughness		Ra1.6	Ra1.6	Ra1.6
Main motor power	kw	22	22	22
Machine weight	kg	9000/11000/13000	9000/11000/13000	9000/11000/13000
Length	mm	4500/6000/8000	4500/6000/8000	4500/6000/8000
Width	mm	2435	2435	2435
Height	mm	2150	2150	2150
