Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Mechanical Three Rollers Symmetric Rolling Machine

Mechanical Three Rollers Symmetric Rolling Machine

Name: Mechanical Three Rollers Symmetric Rolling Machine
Brand: TIMAC
SKU: 140795662
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Mechanical Three Rollers Symmetric Rolling Machine thumbnail-1

Mechanical Three Rollers Symmetric Rolling Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

TIMAC

Model Number:

MSR Series

Condition:

New

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TIMAC

Model Number MSR Series

Condition New

Specifications

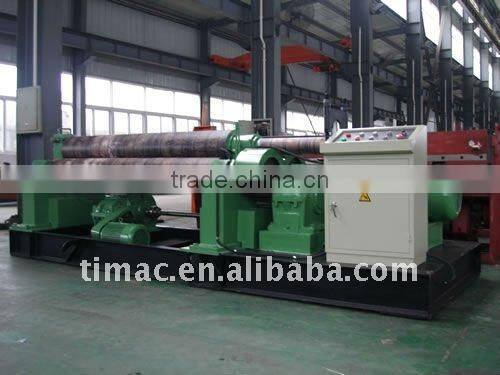

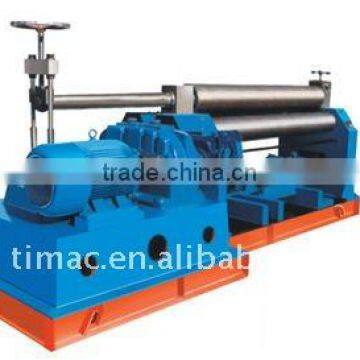

Mechanical three rollers symmetric rolling machine

The construction of this machine is in the form of three roller symmetry, the top roller, in the central symmetry position
over the two bottom rollers, does vertical motion up and down through screw, nut and worm transmission. Decelerator gears
bottom roller providing torsion moment for coiling sheet metal.

Specification	Max.thickness of coiled plate	Max.with of coiled plate	Yielding limit of sheet metal	Coiling speed	Min full loading diameter of coiled plate	Dia. of top shaft	Diameter of bottom shaft	Central distance between bottom shafts	Motor power
Specification	mm	mm	mm	m/min	mm	mm	mm	mm	kw
MSR-6x1500	6	1500	245	5	455	160	160	250	4
MSR-6x2000	6	2000	245	4.5	450	185	170	250	5.5
MSR-3x3200	3	3200	245	4.5	450	185	170	250	5.5
MSR-12x2000	12	2000	245	4	600	240	180	280	7.5
MSR-8x2500	8	2500	245	4	600	240	1850	280	7.5
MSR-12x3000	12	3000	245	4	700	280	250	359	11
MSR-16x2500	16	2500	245	4	700	280	240	359	11
MSR-20x2000	20	2000	245	4	700	280	240	359	11
MSR-25x2000	25	2000	245	4	850	330	270	440	15
MSR-20x2500	20	2500	245	4	850	340	280	440	15
MSR-16x3200	16	3200	245	4	850	340	280	440	15
MSR-25x2500	25	2500	245	4	1200	360	290	480	22
