Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T)

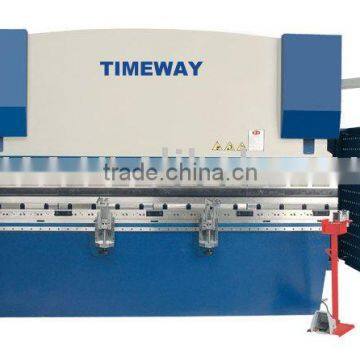

EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T)

Name: EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T)
Brand: TIMAC
SKU: 140795666
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T) thumbnail-1

EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

TIMAC

Model Number:

63/2500, 80/3200, 100/3200, 125/4100, 160/3200, 200/3200, 320/4100

Machine Type:

Press Brake

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name TIMAC

Model Number 63/2500, 80/3200, 100/3200, 125/4100, 160/3200, 200/3200, 320/4100

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Power Other, Electric, Hydraulic, CNC

Automation Automatic

Specifications

EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T)

EHP M CNC Electric Hydraulic Synchro Press Brakes(63T-320T)

* Advanced configuration,high precision and high efficiency CNC hydraulic press brake.

* Holistic welding structure treated by annealing.

* Stand configuration with 4+1 axes:

Y1 (upward-downward of left cylinder),

Y2 (upward-downward of right cylinder),

X (forward-backward of backguage),

R (upward-downward of backguage),

V (Equipped with word-class mechanical crowning system),

Optional 6+1 axes,8+1 axes or more axes.

* CYBELEC DNC880S is the standard system,DNC60S,DNC600S,ModEva 10S,ModEva 12S are optional.

* Double crowning mechanism:

1,upper rapid clamping fixture,which has both quick fastening and crowning function.

2,Equipped with world-class mechanical crowning system is controlled by CNC system.

* All major electrical and hydraulic elements are assembled with high grade international brands.

* Front support arms.

* A set of standard tools is provided with each machine.

* Optional:CE STANDARD.

Model	Nominal pressure (KN)	Max. bending width (mm)	Distance between uprights (mm)	Opening height (mm)	Throat depth (mm)	Cylinder stroke (mm)	Main power (KW)	Approaching speed (mm/s)	Working speed (mm/s)	Returning speed (mm/s)	Length (mm)	Width (mm)	Height (mm)	Weight (kg)
06325	630	2500	2050	500	300	160	5.5	120	10	130	3400	1880	2380	5690
06332	630	3200	2700	500	300	160	5.5	120	10	130	4040	1880	2380	6850
08025	800	2500	2050	500	320	160	7.5	120	10	130	3400	1940	2380	6350
08032	800	3200	2700	500	320	160	7.5	120	10	130	4040	1940	2380	7300
10025	1000	2500	2050	530	350	200	7.5	120	10	120	3410	1970	2490	7500
10032	1000	3200	2700	530	350	200	7.5	120	10	120	4060	1970	2490	8900
10041	1000	4100	3600	530	350	200	7.5	120	10	120	4960	1970	2490	10500
12525	1250	2500	2050	530	350	200	7.5	120	10	120	3410	1970	2490	8200
12532	1250	3200	2700	530	350	200	7.5	120	10	120	4060	1970	2490	9200
12541	1250	4100	3600	530	350	200	7.5	120	10	120	4960	1970	2490	11600
16025	1600	2500	2050	530	350	200	15	120	10	120	3410	2080	2490	8400
16032	1600	3200	2700	530	350	200	15	120	10	120	4060	2080	2490	10150
16041	1600	4100	3600	530	350	200	15	120	10	120	4960	2080	2490	12150
20025	2000	2500	2050	570	400	240	18.5	125	10	120	3410	2080	2740	11050
20032	2000	3200	2700	570	400	240	18.5	125	10	120	4060	2080	2740	12650
20041	2000	4100	3600	570	400	240	18.5	125	10	120	4960	2080	2740	14570
25025	2500	2500	2050	570	400	240	18.5	125	10	120	3410	2240	2780	11950
25032	2500	3200	2700	570	400	240	18.5	125	10	120	4060	2240	2780	13550
25041	2500	4100	3600	570	400	240	18.5	125	10	120	4960	2240	2780	15700
32032 *	3200	3200	2700	600	400	300	22	110	9	115	4060	2330	3070	16900
32041 *	3200	4100	3600	600	400	300	22	110	9	115	4960	2330	3070	19950
Attention:Foundation hole is needed for the models with *
