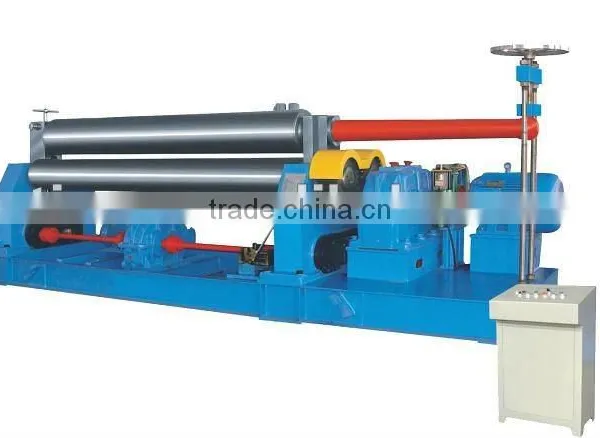

Mechanical Symmetric 3-roller Rolling Machine

Name: Mechanical Symmetric 3-roller Rolling Machine
Brand: TIMAC
SKU: 140795668
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 5,000 - 30,000 MOQ: 1 Set

Key Specifications

Brand Name:

TIMAC

Model Number:

MTR-6x2000, MTR-8X2500

Machine Type:

Roll Forming Machine

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number MTR-6x2000, MTR-8X2500

Machine Type Roll Forming Machine

Raw Material Sheet / Plate Rolling

Material / Metal Processed Other, Steel

Power Hydraulic

Automation Automatic

Extra Services Buffing / Polishing

Specifications

Mechanical Symmetric 3-roller Rolling Machine
Metal sheet/plate bending machine
With pre-bending function

Mechanical Symmetric 3-roller Rolling Machine

Spec	Max. thickness of rolling plate	Max. width of rolling plate	Plate bending limit	Max. spec. min. bending diameter	Dia. of upper roller	Dia. of lower roller	Center diatances of lower roller	Rolling speed	Main motor power
Spec	mm	mm	Mpa	mm	mm	mm	mm	m/min	kw
MTR-6X2000	6	2000	245	380	180	170	250	5.5	5.5
MTR-8X2000	8	2000	245	450	190	170	260	5.6	7.5
MTR- 8X2500	8	2500	245	500	240	200	280	5.5	11
MTR- 12X2000	12	2000	245	500	240	200	310	5.5	11
MTR-12X2500	12	2500	245	650	260	220	340	5.8	15
MTR-16X2000	16	2000	245	650	260	220	340	5.8	15
MTR-12X4000	12	4000	245	900	360	240	360	5.5	30
MTR-16X2500	16	2500	245	700	280	240	360	5.8	15
MTR-16X3000	16	3000	245	950	340	280	440	5.5	30
MTR-20X2000	20	2000	245	750	280	240	360	5.3	15
MTR-20X2500	20	2500	245	850	340	280	440	4	18.5
MTR-25X2000	25	2000	245	850	330	270	440	4	18.5
