EHP F CNC Electric-Hydraulic Synchronization Press Brakes(40T-160T)

Name: EHP F CNC Electric-Hydraulic Synchronization Press Brakes(40T-160T)
Brand: TIMAC
SKU: 140795672
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

TIMAC

Model Number:

40/1500, 50/2000, 63/2500, 80/3200, 100/3200, 125/4100, 160/3200

Machine Type:

Press Brake

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

CHINA PORT

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TIMAC

Model Number 40/1500, 50/2000, 63/2500, 80/3200, 100/3200, 125/4100, 160/3200

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Power Other, Electric, Hydraulic, CNC

Automation Automatic

Specifications

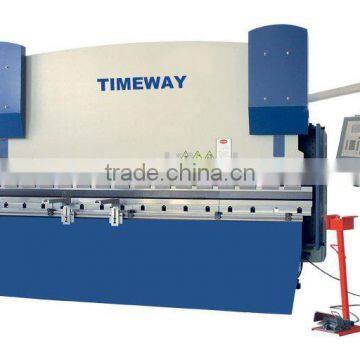

EHP F CNC Electric-Hydraulic Synchronization Press Brakes(40T-160T)

EHP F CNC Electric-Hydraulic Synchronization Press Brakes(40T-160T)

* Advanced configuration,high precision and high efficiency CNC hydraulic press brake.

* Holistic welding structure treated by annealing.

* Stand configuration with 3 axes:

Y1 (upward-downward of left cylinder),

Y2 (upward-downward of right cylinder),

X (forward-backward of backguage),

* CYBELEC DNC60S is the standard system,DNC600S,DNC880S are optional.

* upper rapid clamping fixture,which has both quick fastening and crowning function.

* All major electrical and hydraulic elements are assembled with high grade international brands.

* A set of standard tools is provided with each machine.

* Optional:CE STANDARD.

Model	04015	05020	06325	06332	08025	08032	10025	10032
Nominal pressure (KN)	400	500	630	630	800	800	1000	1000
Max. bending width (mm)	1500	2000	2500	3200	2500	3200	2500	3200
Distance between uprights (mm)	1200	1700	2050	2700	2050	2700	2050	2700
Opening height (mm)	480	480	500	500	500	500	530	530
Throat depth (mm)	280	300	300	300	320	320	350	350
Cylinder stroke (mm)	160	160	160	160	160	160	200	200
Main power (KW)	4	4	5.5	5.5	7.5	7.5	7.5	7.5
Approaching speed (mm/s)	120	120	120	120	120	120	120	120
Working speed (mm/s)	10	10	10	10	10	10	10	10
Returning speed (mm/s)	120	120	130	130	130	130	120	120
Length (mm)	2190	2680	3040	3690	3040	3690	3060	3710
Width (mm)	1930	1940	2000	2000	2060	2060	2100	2100
Height (mm)	2260	2280	2380	2380	2380	2380	2490	2490
Weight (kg)	3650	4400	5700	6850	6350	7300	7500	8900

Model	10041	12525	12532	12541	16025	16032	16041
Nominal pressure (KN)	1000	1250	1250	1250	1600	1600	1600
Max. bending width (mm)	4100	2500	3200	4100	2500	3200	4100
Distance between uprights (mm)	3600	2050	2700	3600	2050	2700	3600
Opening height (mm)	530	530	530	530	530	530	530
Throat depth (mm)	350	350	350	350	350	350	350
Cylinder stroke (mm)	200	200	200	200	200	200	200
Main power (KW)	7.5	7.5	7.5	7.5	15	15	15
Approaching speed (mm/s)	120	120	120	120	120	120	120
Working speed (mm/s)	10	10	10	10	10	10	10
Returning speed (mm/s)	120	120	120	120	120	120	120
Length (mm)	4610	3080	3730	4630	3080	3730	4630
Width (mm)	2100	2100	2100	2100	2200	2200	2200
Height (mm)	2490	2490	2490	2490	2490	2490	2490
Weight (kg)	10500	8200	9200	11600	8400	10150	12150
