FOTON small hook lift bin truck for sale
Specifications:
Main specifications | |||||||||
Product model,name |
BJ5030ZXX-E1 Garbage Truck With Removable Box |
||||||||
Gross weight(Kg) |
2620 |
Driving type |
4×2 |
||||||
Payload (Kg) |
1200 |
Overall dimension (mm) |
4105×1475×1910 |
||||||
Curb weight(Kg) |
1290 |
cab seats (man) |
2 |
||||||
Approach/departure angle (°) |
24/28 |
Front/rear hang(mm) |
895/840 |
||||||
Axle No. |
2 |
Wheelbase (mm) |
2370 |
||||||
Axle load(Kg) |
1050/1570 |
Max speed(Km/h) |
90 |
||||||
Chassis specifications | |||||||||
Chassis model |
BJ1030V4JV2-X1 |
Manufacture |
Foton motor co., LTD |
||||||
Brand name |
FOTON |
Overall dimension (mm) |
4005×1475×1770 |
||||||
Tire specification |
165R13LT |
Tires No. |
4 |
||||||
Steel spring number |
5/4,5/6 |
Front track(mm) |
1260 |
||||||
Fuel type |
gasoline |
Rear track(mm) |
1260 |
||||||
Emission standard |
Euro 4 |
Gear box |
5 forward |
||||||
Engine model |
Engine manufacture |
displacement(ml) |
Power(Kw) |
||||||
LJ465Q-2AE |
Liuzhou wuling willow move co., LTD |
1051 |
45 |
||||||
Performance | |||||||||
Body capacity(m³) |
2.5 |
Body material |
Q235 carbon steel |
||||||
Discharge Method |
Rear dump |
Operation control system |
Manuel + electric |
||||||
Characteristic | |||||||||
|
1,Detachable Container Garbage Truck also called pull arm garbage truck ; 2,Using full hydraulic control , the operator can do the waste bin lifting, discharging and dumping both in the driving room or out of the room, and all the operations can be performed by one driver in the cab; 3,The truck compartment using fully enclosed design,there is no water leakage while transportation, that is avoid the secondary pollution problem, make it more environmental friendly; 4,The truck can equipped with several garbage box, one truck can maintain multiple garbage collection point operation, high efficiency. | |||||||||

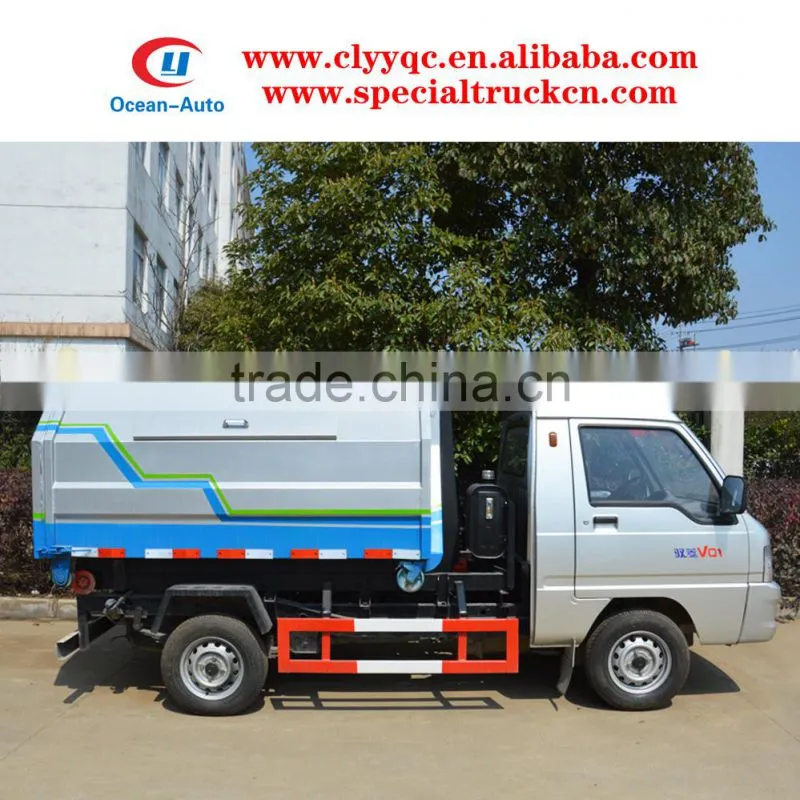

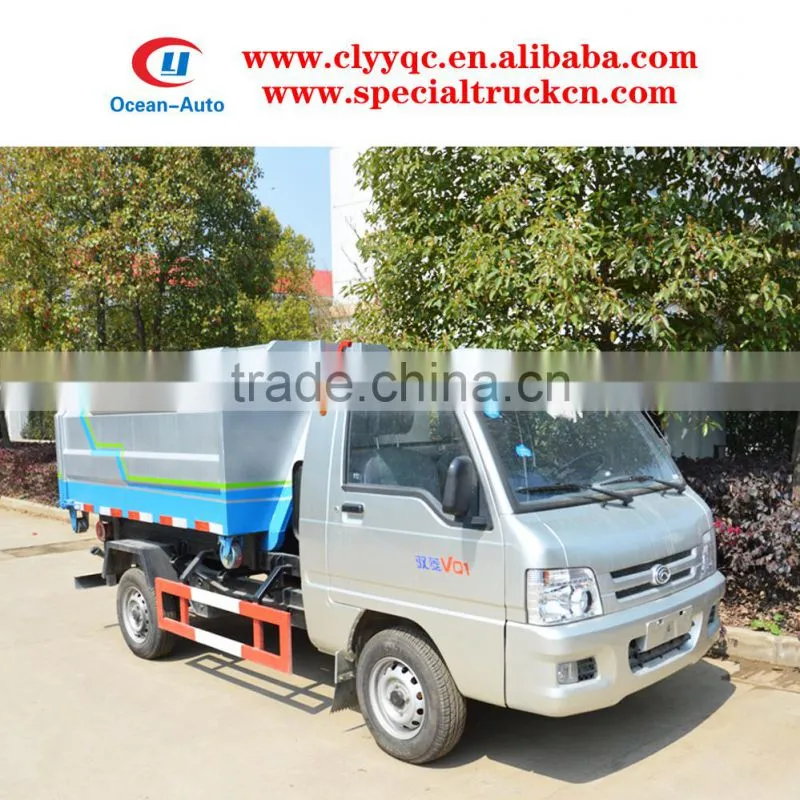

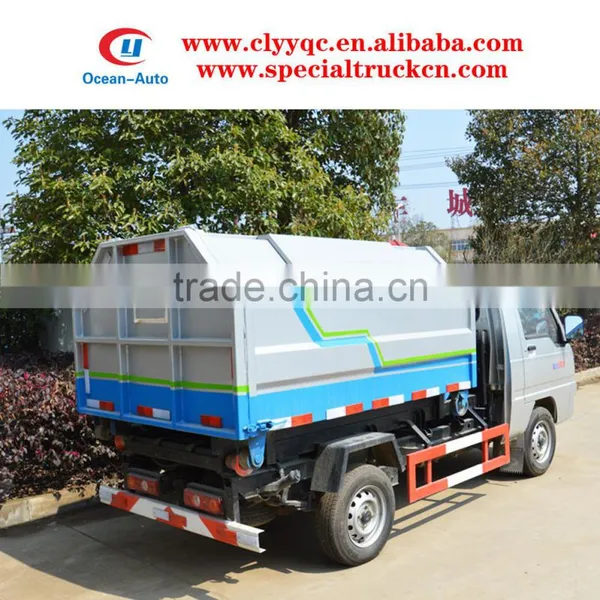

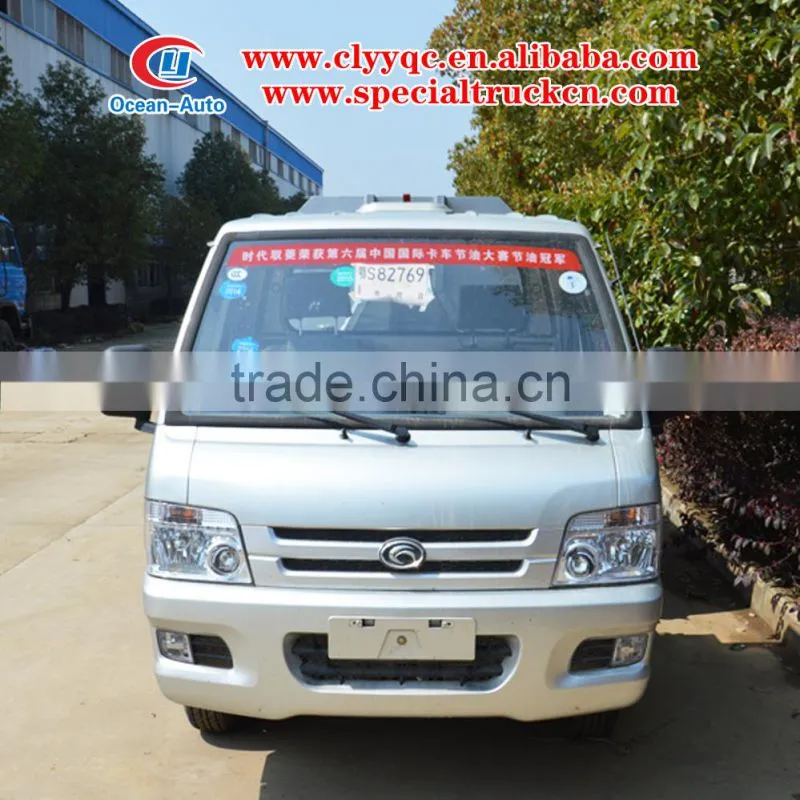

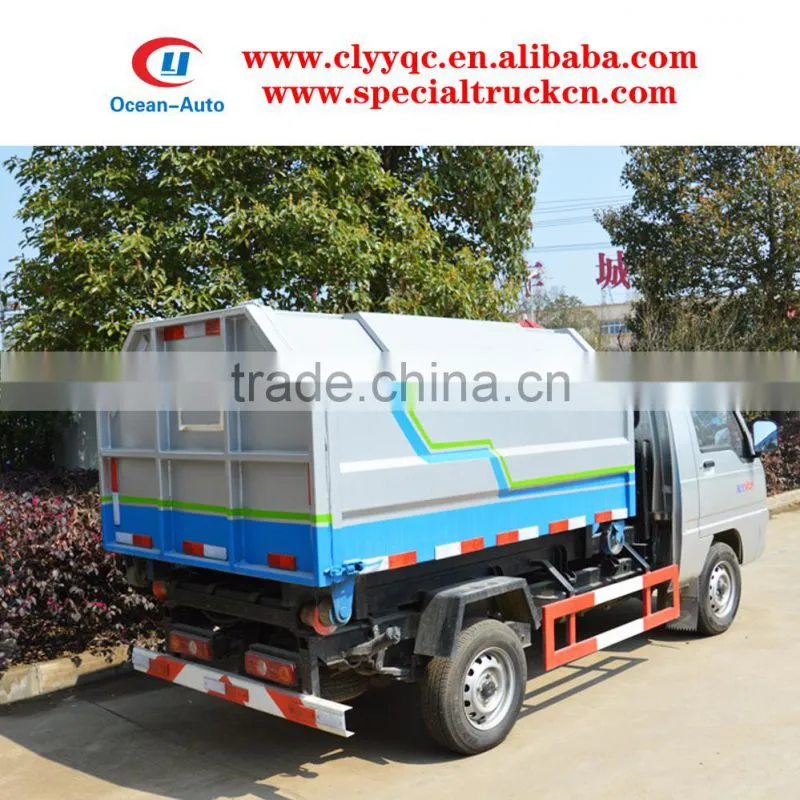

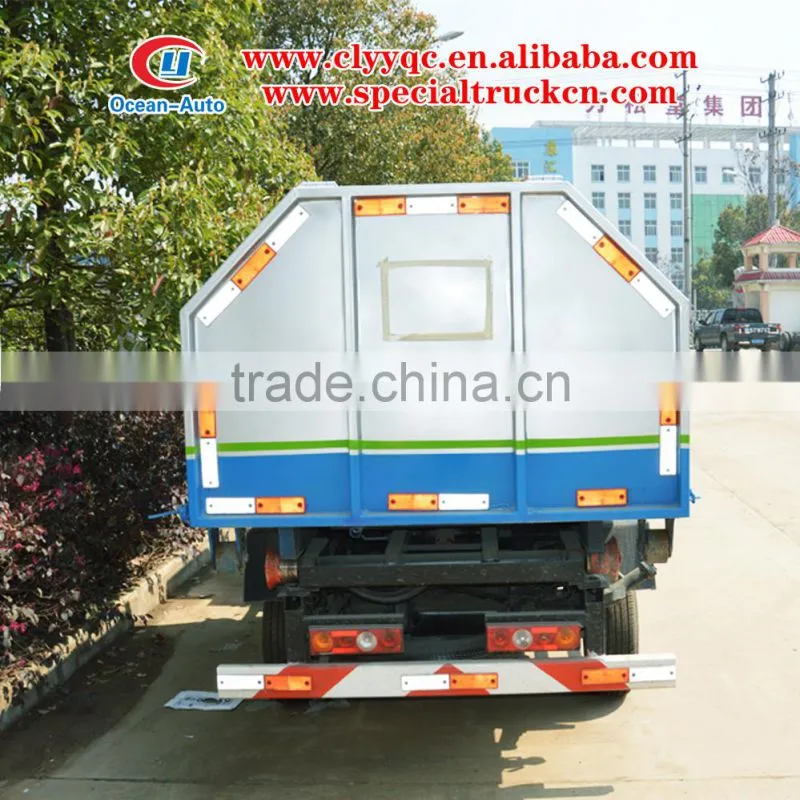

Product pictures:
More Pictures About our factory:
Notes:
A. Delivery time: Normally with 10-25days after received your first deposit.
B. Payment item: Normally 30% in advance and the balance should be paid before the shipment after your checking and confirmed.
C. Guarantee time and services: from the vehicles safely arrived at destination and under proper operation situation, normally 12 months, but the whole life supply maintenance
Anything unclear, just feel free to contact with me !
Tel:86-13872887006 Emma
Fax:86-722-3819809
Skype: truckcl1
You are welcomed to our facoty to have a visit!
Address: Chengli Auto Industrial Park, Suizhou City, Hubei Province, China.
